Description

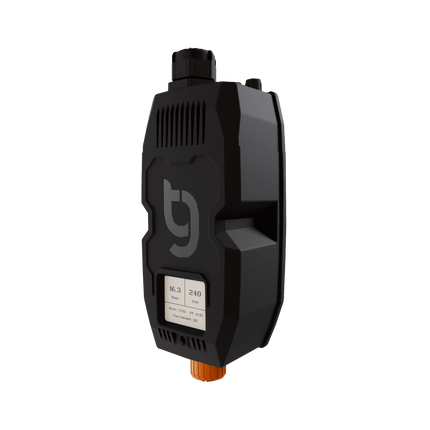

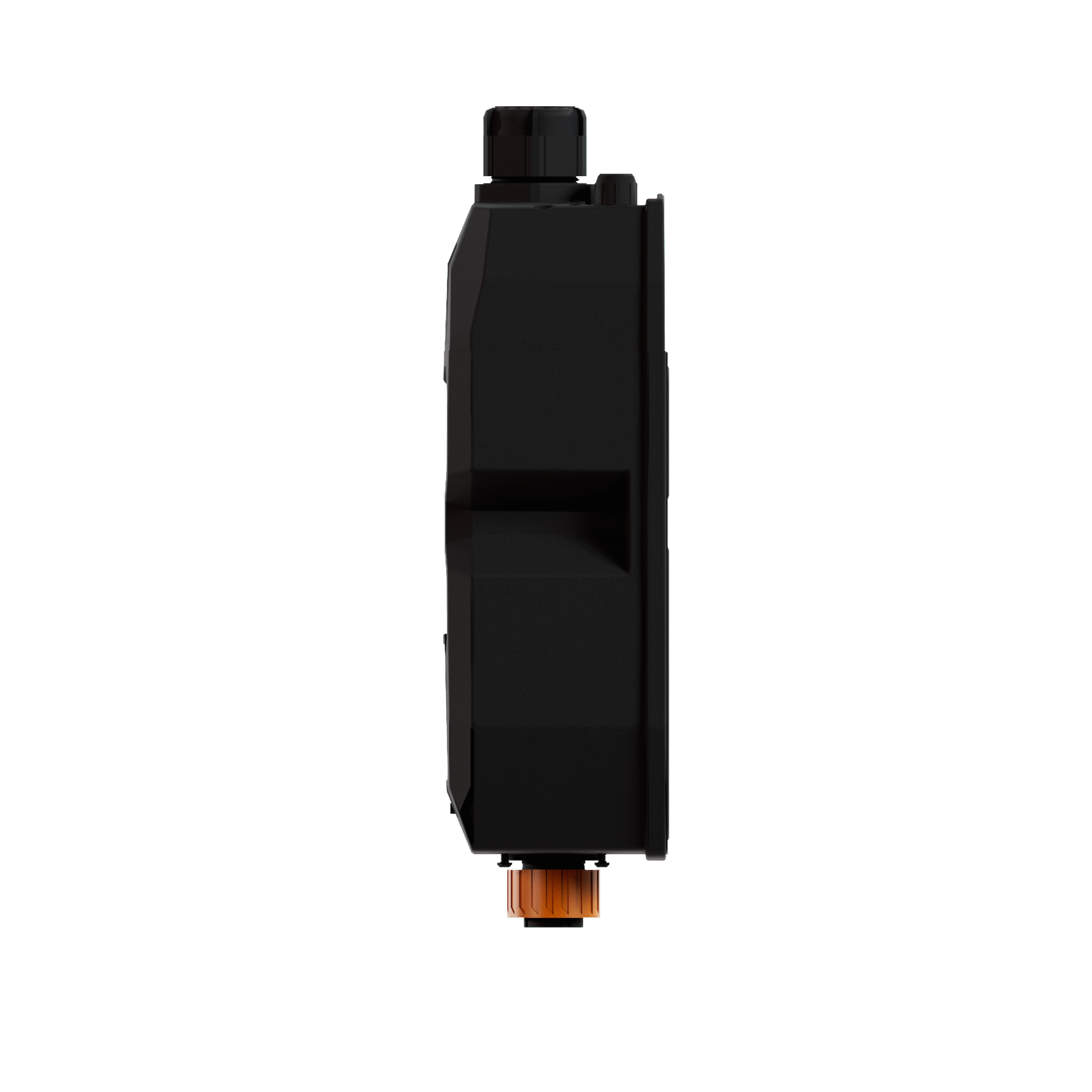

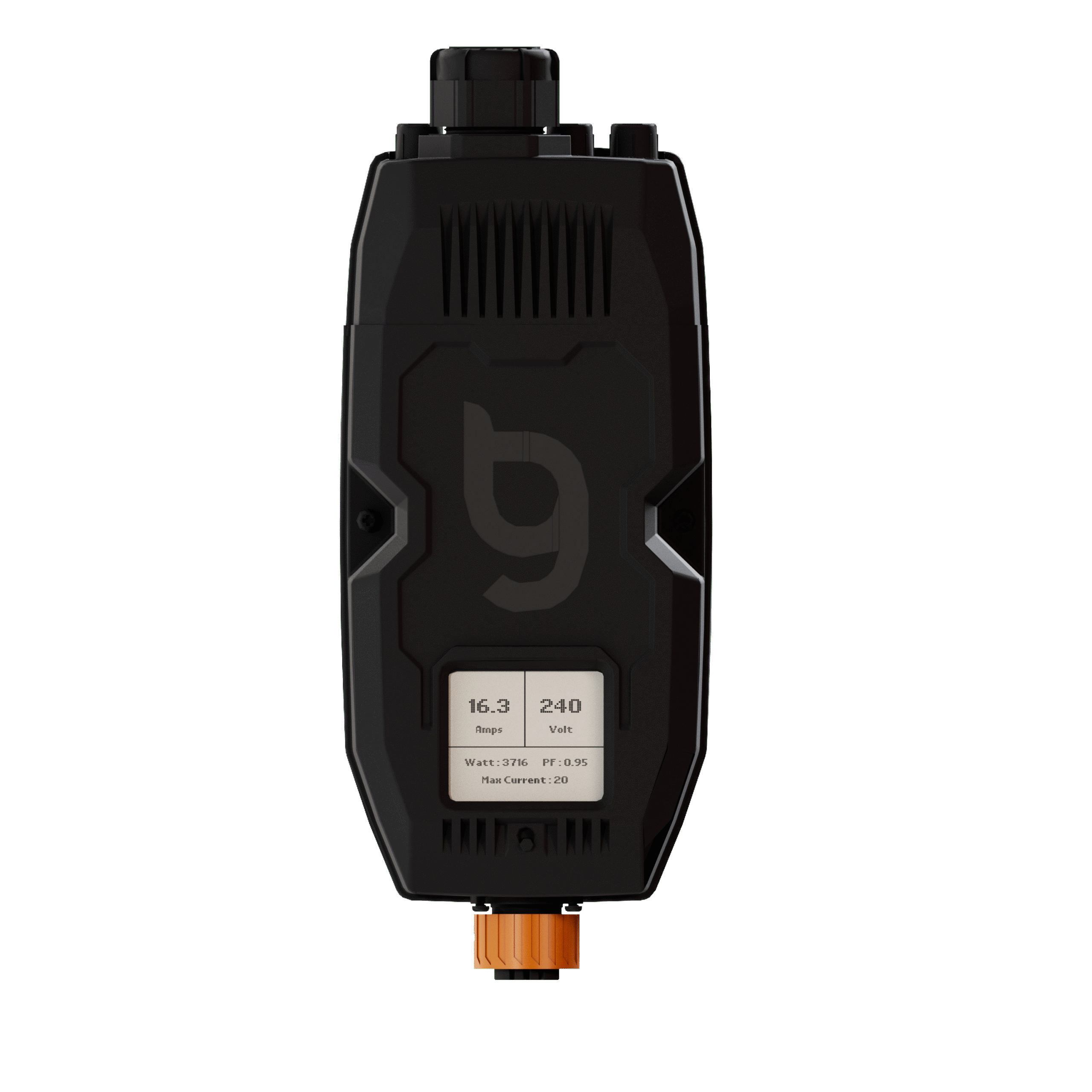

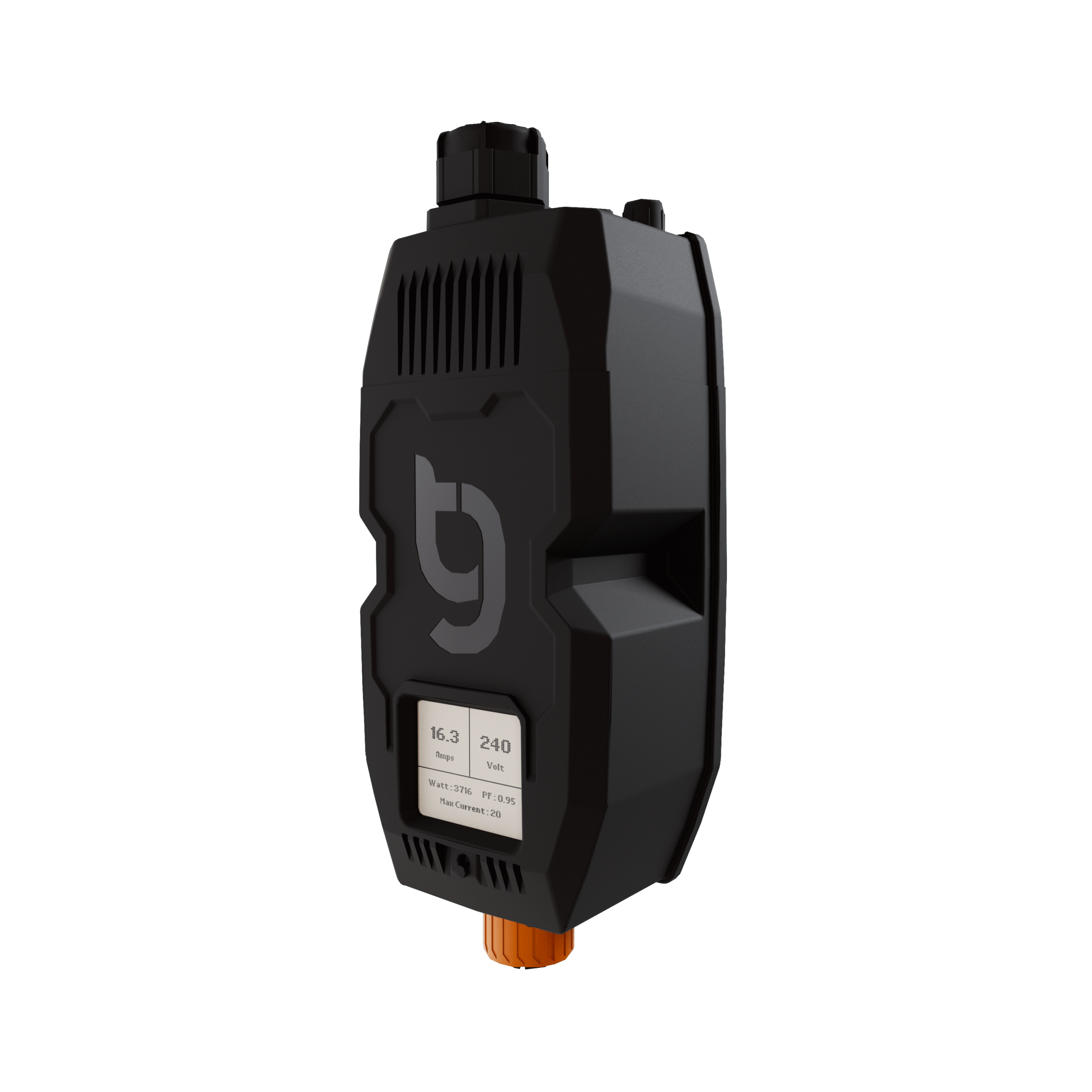

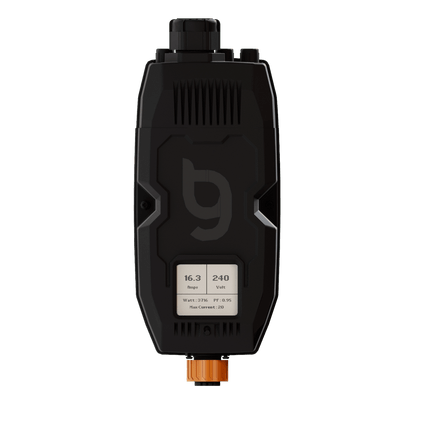

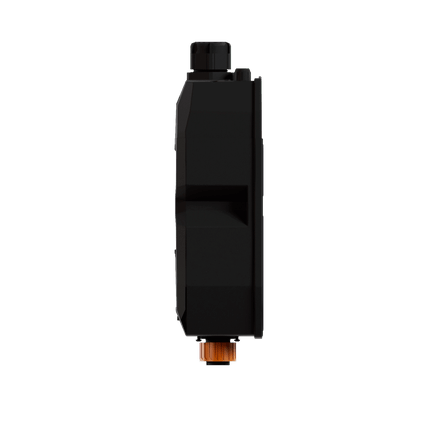

The OPA-2 is a smart junction box that powers a string of daisy-chained ThinkGrow LEDs and watches the circuit. It meters voltage, current, power and power factor, cuts power to the lights if current climbs past the limit you set, and connects to TrolMaster controllers for remote monitoring, light grouping and dimming.
- Rated 30 A · 100–277 V~, 50/60 Hz
- Selectable shut-off points: 15 A, 20 A or 30 A · overcurrent protection point +120%, responds within 0.5 s
- Real-time voltage, current, power and power-factor readings
- Light-group control (groups 0–9) and spectrum-group control for UV, white, deep red and far red with TrolMaster controllers
- Power surge protection · full power-off for the night cycle
- RS-485 communication · ETL / FCC
- Working temperature 32–104°F · humidity ≤ 90%
In the box: OPA-2 junction box, ECS-7 12' daisy-chain control cable, 2 ECS-9 connector cables, 2 Y-splitters.
