Double Black Diamond v2 LTC-LED Ag Light SYSTEM PERFORMANCE LEDs 48 Foot Print 4 X 4 ft Total Lumens 11810 lm Color Temp / CRI 5500/73 K/CRI LED Life Time 70-100K hrs. THD @ 120V 5 % SYSTEM ELECTRICAL Power input 115 W Voltage 110-240 V Input Current @120V 0.89 A Efficacy 102 lm / W DESIGN Width 17.5 in Length 17.3 in Height 5.13 in Weight 13 lbs Over molded (UL) Power Cord 6 ft Warranty ( Manufacturer ) 5 years
The AG140 is a slim 140-watt LED bar made to light the lower canopy that overhead fixtures can't reach. This full-spectrum (3K full phase) version is rated at about 420 µmol/s and 3.0 µmol/J on 120-277V input, with 0-10V dimming. Its IP66 housing stands up to foliar sprays and irrigation, and bars chain power and data through a single connection. Power cords, jumpers and stands are sold separately.
The Griffin full-spectrum bar is a modular LED bar you can mount on Unistrut and combine with other Griffin bars to build a custom fixture. Each bar is switchable to 100W, 120W or 150W, blends 437.5nm blue, full-spectrum white and 660nm deep red, and reaches about 3.1 umol/J. A single push-lock connection carries both power and 0-10V data on 120-277V, and up to 8 bars chain on 120V (16 on 240V, 18 on 277V).
The PhytoMAX-4 2S is Black Dog LED's 125-watt full-spectrum fixture, putting out 266 µmol/s of photon flux from 280 to 800 nm, including 8 µmol/s of UV and 20 µmol/s of infrared. It dims from 15 to 100% on 0-10V, and it comes in two versions: the SP with an IEC power cord rated 100-250V, or the SC with a locking, water-tight cord rated 100-277V, which is the one to choose for greenhouse use. Pick the plug that matches your outlet. A pair of V-hooks and ratcheting rope hangers come with every light.
Power draw: 125 W (1.04 A at 120V)
Photon flux (280-800 nm): 266 µmol/s
PAR (400-700 nm): 238 µmol/s
UV (280-400 nm): 8 µmol/s; IR (700-800 nm): 20 µmol/s
LEDs: 56
Dimming: 0-10V, 15-100%
Input: SP 100-250V, SC 100-277V, 50/60 Hz
Fixture size: 8.5" x 8.5" x 4.5" (22 x 22 x 11 cm)
Fixture weight: 9 lb
Heat output: 426 BTU/hr
Fan life: over 70,000 hours
Warranty: 5 years
The PhytoMAX-4 4S is Black Dog LED's 250-watt full-spectrum fixture, putting out 531 µmol/s of photon flux from 280 to 800 nm, including 16 µmol/s of UV and 40 µmol/s of infrared. It dims from 15 to 100% on 0-10V, and it comes in two versions: the SP with an IEC power cord rated 100-250V, or the SC with a locking, water-tight cord rated 100-277V, which is the one to choose for greenhouse use. Pick the plug that matches your outlet. A pair of V-hooks and ratcheting rope hangers come with every light.
Power draw: 250 W (2.08 A at 120V)
Photon flux (280-800 nm): 531 µmol/s
PAR (400-700 nm): 476 µmol/s
UV (280-400 nm): 16 µmol/s; IR (700-800 nm): 40 µmol/s
LEDs: 112
Dimming: 0-10V, 15-100%
Input: SP 100-250V, SC 100-277V, 50/60 Hz
Fixture size: 15" x 15" x 4.5" (37 x 37 x 11 cm)
Fixture weight: 24 lb
Heat output: 853 BTU/hr
Fan life: over 70,000 hours
Warranty: 5 years
The UCL Model 2 is a 4 ft, 125W under-canopy LED bar with an 80% deep-red spectrum blended with full-spectrum white. At about 414 umol/s and 3.31 umol/J it is one of the most efficient bars in the line, and it is IP65, DLC and ETL listed. Power and data share one waterproof cord for easy chaining (8 per circuit at 120V, 18 at 277V); a controller is needed to turn it on.
The UCL Model 1 is a 4 ft, 125W full-spectrum plus far-red LED bar made to light the lower canopy from below. It puts out about 362 umol/s, is IP65 and damp rated, and is DLC and ETL listed. Power and data run through one waterproof cord, so bars chain end to end (8 per circuit at 120V, up to 18 at 277V); a controller is needed to turn it on.
The 8 ft UCL Model 5 is a 250W under-canopy LED bar with a built-in aluminum air tube that doubles as a ventilation line for the lower canopy. Bars connect end to end with rubber duct connectors and are fed by the GrowPros ACS blower or a compatible inline fan. It carries an IP65 rating and runs on 120-277V, with up to 4 bars per chain at 120V (8 at 277V).
The 8 ft UCL Model 1 is a 250W full-spectrum plus far-red LED bar for lighting the lower canopy along a full bench length. It delivers about 719 umol/s, is IP65 and damp rated, and is DLC and ETL listed. One waterproof cord carries power and data, with up to 4 bars per chain at 120V (9 at 277V); a controller is needed to turn it on.
The UCL Model 4 is a 4 ft, 150W dual-channel under-canopy bar pairing a 125W 80% red plus white channel with a separate 25W 730nm far-red channel. Independent dimming lets you add or pull far red without changing the main output, at about 450 umol/s and 3.0 umol/J. It is IP65, damp rated and DLC/ETL listed, chaining up to 8 bars at 120V.
The UCL Model 3 is a 4 ft, 150W dual-channel under-canopy bar: one 75W channel blends UVA, blue and 5000K white, and the other 75W channel blends deep red, far red and 3000K white. Each channel dims on its own, so you can shift the lower-canopy spectrum as the crop develops, at about 450 umol/s and 3.0 umol/J. It is IP65, damp rated and DLC/ETL listed, with up to 8 bars per chain at 120V.
The UCL Model 5 is a 4 ft, 125W under-canopy LED bar with a built-in aluminum air tube, so it lights and ventilates the lower canopy at the same time. Bars join end to end with rubber duct connectors to form one airflow path fed by the GrowPros ACS blower or another inline fan. It delivers about 405 umol/s at 3.24 umol/J with an 80% deep red plus full-spectrum mix, and is IP65 rated.
The 8 ft UCL Model 2 is a 250W under-canopy LED bar with an 80% deep-red spectrum blended with full-spectrum white, sized to run the length of a bench. It produces about 831 umol/s at 3.32 umol/J, with a 120-degree beam, IP65 rating and DLC/ETL listing. One waterproof cord carries power and data (4 bars per chain at 120V, 9 at 277V); a controller is needed to turn it on.
The PFS Series kit is four slim 40-watt LED bars (160 watts total) with the GC-3K full phase spectrum, suited to smaller rooms, tents or shelving. Each 47.2-inch bar is rated at 100 µmol/s and 2.5 µmol/J, runs fanless, and is IP65 rated and ETL listed. The kit includes a four-in-one power cable, an 8 ft 120V cord, a 120V/240V plug adapter and mounting hardware for surface or pendant installs.
The AG-250 is a 250-watt modular LED bar that can fill a 4x4 frame, run in single-file strut lines, or work as under-canopy lighting. It uses a 3K spectrum, is rated at 3.0 µmol/J, and has an IP66 housing that handles sprays and irrigation. Bars share power and data through a single connection; cords and accessories are sold separately.
This is the red-enhanced AG140 under-canopy bar in its 277-480V version for high-voltage commercial circuits. It draws 140 watts and is rated at about 455 µmol/s and 3.25 µmol/J, with 0-10V dimming and an IP66 housing that shrugs off sprays and irrigation. Single-connection power and data chaining keeps rows tidy; cords and jumpers are sold separately.
Built for commercial rooms wired for higher voltage, this AG140 under-canopy bar runs on 277-480V. It's the 140-watt full-spectrum (3K full phase) model, rated at about 420 µmol/s and 3.0 µmol/J, with 0-10V dimming and an IP66 housing. Bars link power and data through a single connection, and cords and jumpers are sold separately so you can match your supply voltage.
This AG140 under-canopy bar uses a red-enhanced spectrum to add extra output low in the canopy during flowering. It draws 140 watts and is rated at about 455 µmol/s and 3.25 µmol/J on 120-277V input, with 0-10V dimming. The IP66 housing handles sprays and irrigation, and single-connection power and data chaining keeps long rows simple. Power cords, jumpers and stands are sold separately.
Make your room MINT condition with MINT LED! Packed full of features to keep your grow room and your light bill at its best, the MINT LED 400 features a full range of diodes creating a true full spectrum that your plants will love! The easy to use remote, as well as controls from the fixture, give you true control of what your plants need! Built with 3 customizable channels for blooming, vegetative, and full spectrum supplemental lighting. Mimick real seasonal lighting changes with the MINT LED 400! Perfectly spaced diodes achieve the best foot print possible and UV and IR provided from the fixture create a well-rounded plant! The MINT LED fixture is cool to the touch and only draws 220 watts allowing you to replace any existing 400 watt fixture all while saving you money! As LED's pave the way of the gardening future be sure to leave your grow room in MINT condition! 3.68 AMPS
The California LightWorks SolarSystem 275 is the compact light in the SolarSystem line: a 200-watt, American-made LED with a programmable spectrum for a 3' x 3' bloom area or up to 5' x 5' for vegetative growth. Use it on its own or chain it with other SolarSystem fixtures.
Power: 0–200 W, 90–277 V, 50–60 Hz
PPF: 530 µmol/s
Coverage: 3' x 3' bloom, up to 5' x 5' vegetative
Programmable spectrum with 2-channel dimming, 0–100%
Works with the SolarSystem Controller, sold separately (the white channel has no effect on this model)
Fixture: 8.5" x 8.5" x 4", 7 lb
640 BTU heat output · 6 ft power cord, 120V or 240V (choose above)
UL and CE listed · Made in the U.S.A.
5-year California LightWorks warranty

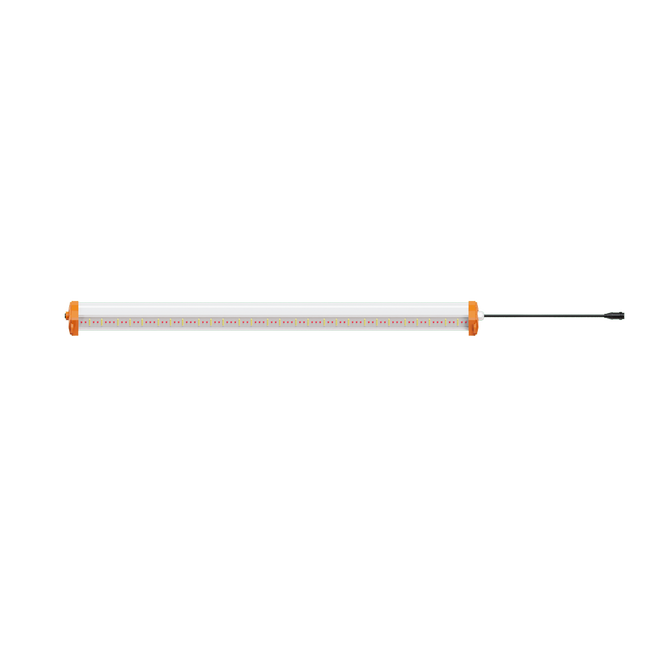

The ThinkGrow ICL-120 is an under-canopy LED bar with a built-in 120-watt driver and a 120° beam that reaches the lower part of the plant top lights miss. This pack has 2 bars, each running a single full-spectrum channel behind a sealed, IP66-rated cover.
2 ICL-120 bars, 120 W each (240 W total), built-in drivers, autosensing 100–277 V
PPF: over 348 µmol/s per bar · Efficacy: over 2.9 µmol/J
Beam angle: 120° · single full-spectrum channel
IP66, with a sealed cover over the diodes
Power factor ≥ 90% · working temperature -4 to 104°F
Fits ThinkGrow TSD-3 vertical stands (sold separately; 2 stands per bar)
L90 rated life over 54,000 hours
5-year ThinkGrow warranty

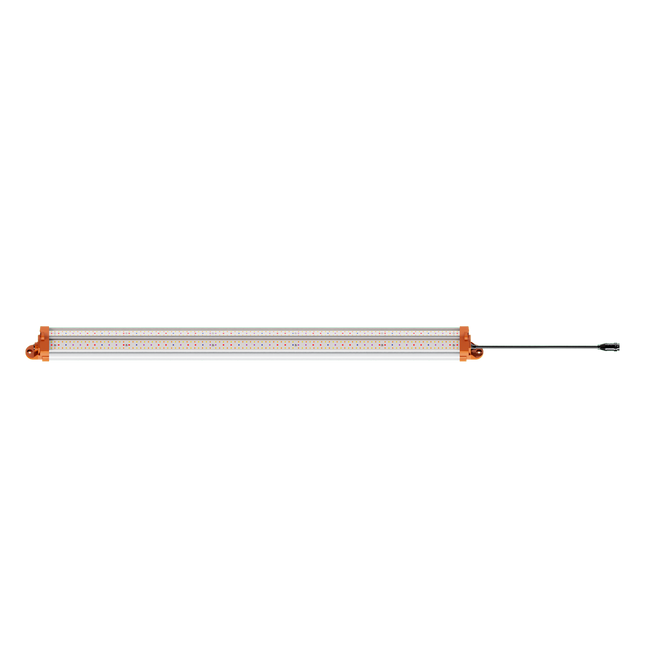

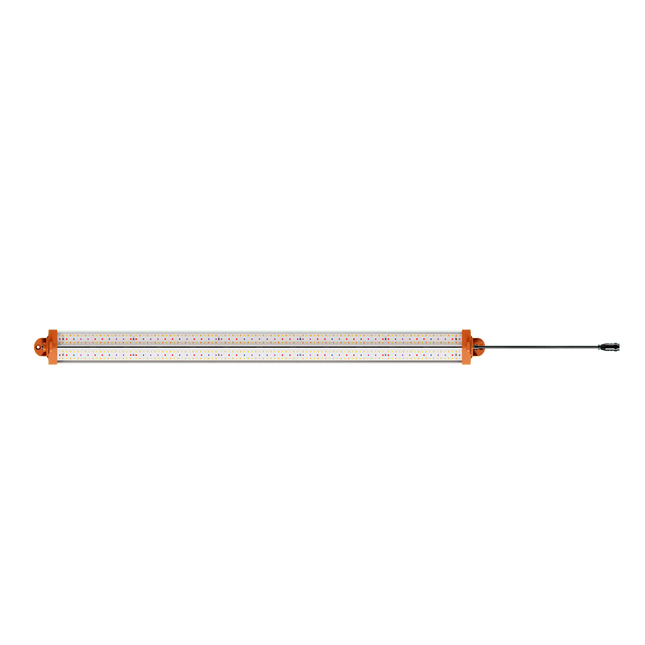

The ThinkGrow ICL-150 is an LED bar with a built-in 120-watt driver and a wide 150° beam, so it can work as a top light, a side light or an under-canopy light. Four spectrum channels (full spectrum, deep red, far red and UV) sit behind a sealed, IP66-rated cover, which suits dense, humid grow rooms.
Input power: 120 W (built-in driver), autosensing 100–277 V
PPF: over 360 µmol/s · Efficacy: over 3.0 µmol/J
Beam angle: 150° · use as a top, side or under-canopy light
Spectrum: full spectrum, deep red, far red and UV
IP66, with a sealed cover over the diodes
Power factor ≥ 90% · working temperature 32–104°F
Hang it, bolt it to 1-5/8" Unistrut with 1/4-20 hardware, or set it on ThinkGrow TSD-3 stands (sold separately)
Daisy-chains fixture to fixture · L90 rated life over 54,000 hours
5-year ThinkGrow warranty

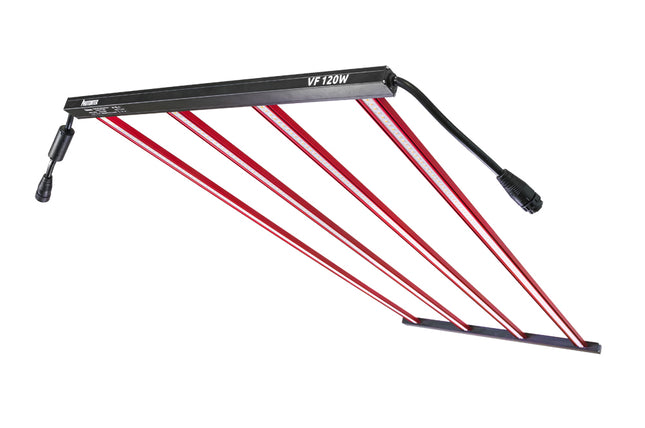

The Photontek VF120W is the brighter version of the VF90W: a slim 4' x 2' LED panel for propagating seedlings, cuttings and clones, and for other low-light crops. It fixes to vertical-farm racking or hangs from light hangers, and runs from the VF 650W driver (sold separately), which powers up to five VF120W fixtures.
Power draw: 130 W ±5% (1.21 A at 120 V); 120–277 V through the VF 650W driver
PPF: 308 µmol/s · Efficacy: 2.4 µmol/J
Footprint: 4' x 2' · mount 6"–16" above plants
Diodes: 4000 K white and 3000 K warm white; 120° light distribution
Fixture: 47.5" x 20.5" x 0.8", passive cooling
Dimmable through the VF 650W driver with a 0–10 V dimmer, the Photontek Digital Controller or a universal 0–10 V controller
IP65 · CSA, FCC and IC certified · L90 > 60,000 hours · 3-year Photontek warranty
In the box: VF120W fixture, 8 stainless steel zip ties, manual. Requires the VF 650W driver (sold separately).

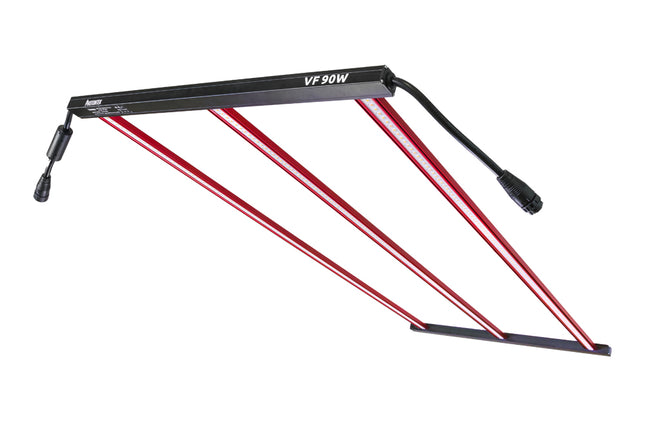

The Photontek VF90W is a slim 4' x 2' LED panel for propagating seedlings, cuttings and clones, and for other low-light crops. It fixes straight to vertical-farm racking or hangs from light hangers, and runs from the VF 650W driver (sold separately), which powers up to seven VF90W fixtures.
Power draw: 103 W ±5% (0.94 A at 120 V); 120–277 V through the VF 650W driver
PPF: 244 µmol/s · Efficacy: 2.4 µmol/J
Footprint: 4' x 2' · mount 6"–16" above plants
Diodes: 4000 K white and 3000 K warm white; 120° light distribution
Fixture: 47.5" x 20.5" x 0.8", passive cooling
Dimmable through the VF 650W driver with a 0–10 V dimmer, the Photontek Digital Controller or a universal 0–10 V controller
IP65 · CSA, FCC and IC certified · L90 > 60,000 hours · 3-year Photontek warranty
In the box: VF90W fixture, 8 stainless steel zip ties, manual. Requires the VF 650W driver (sold separately).
