Description

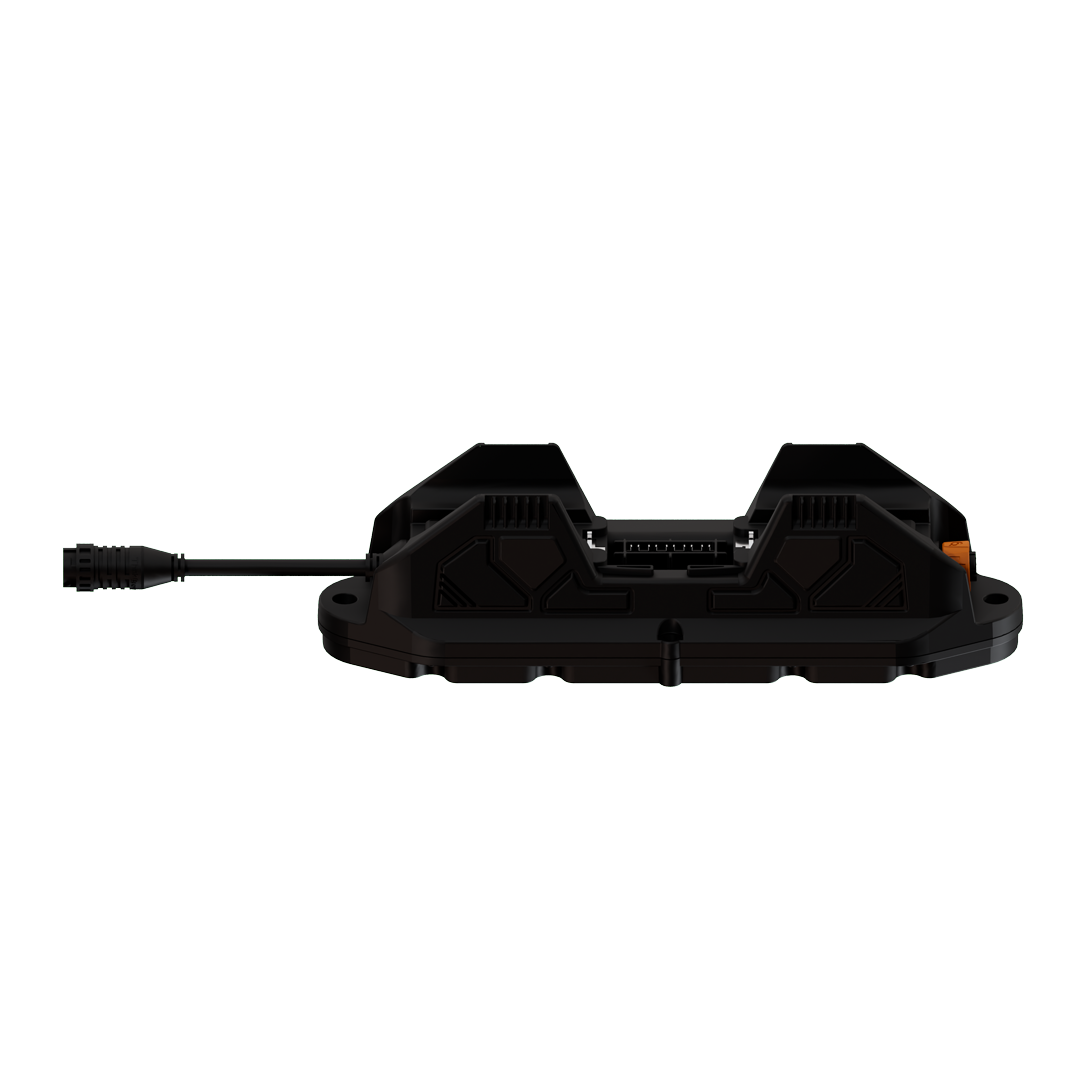

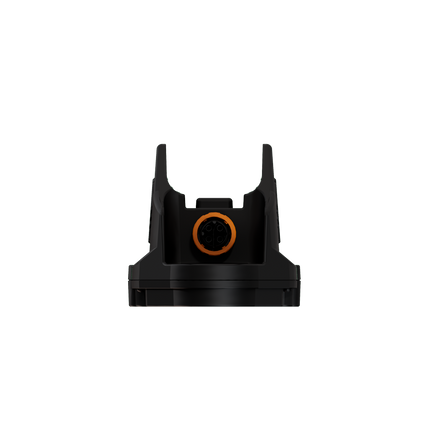

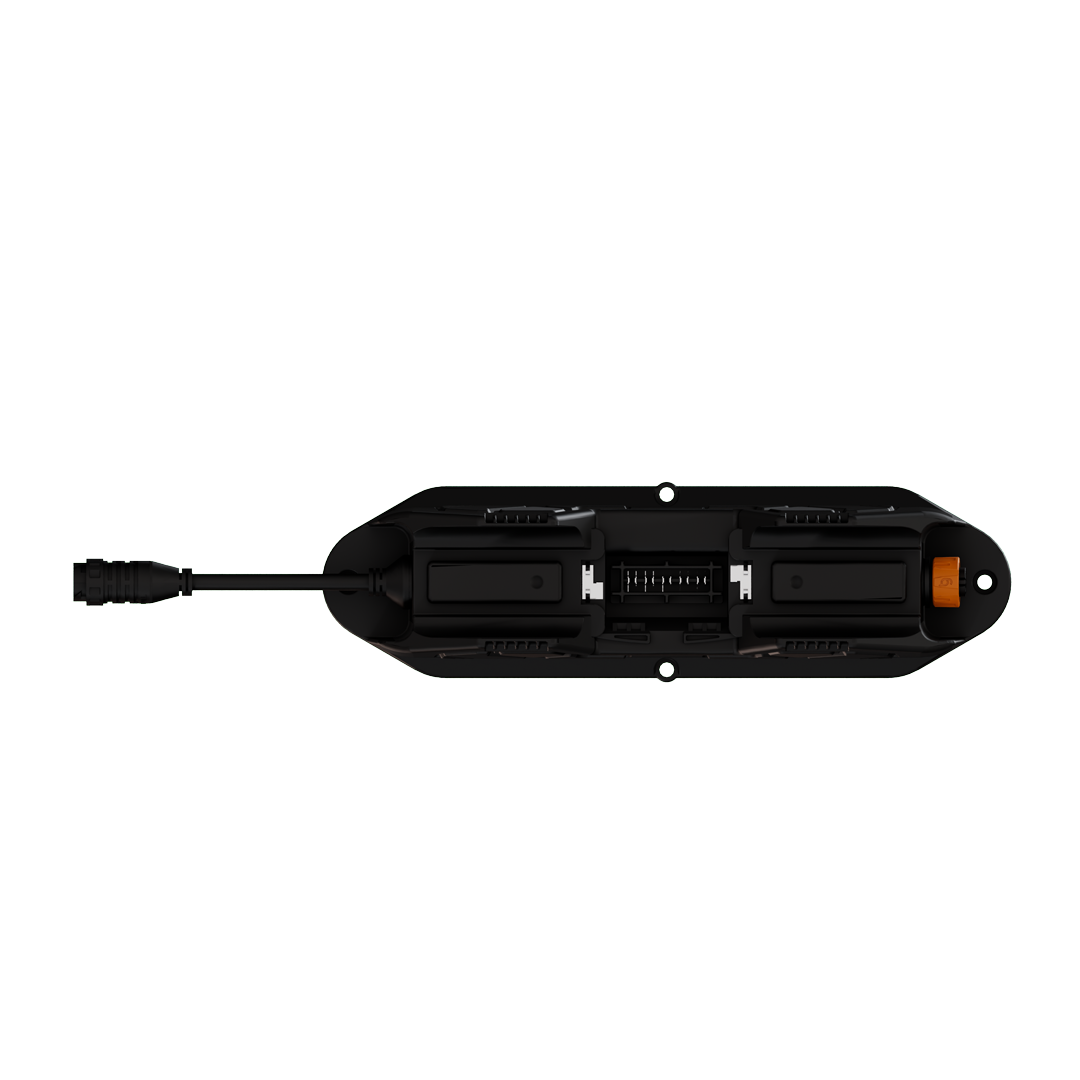

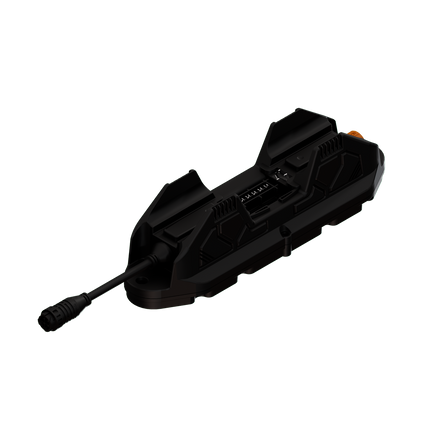

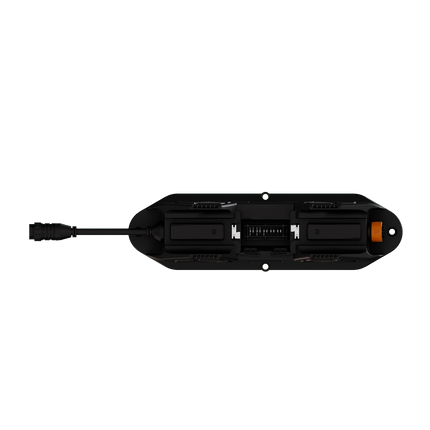

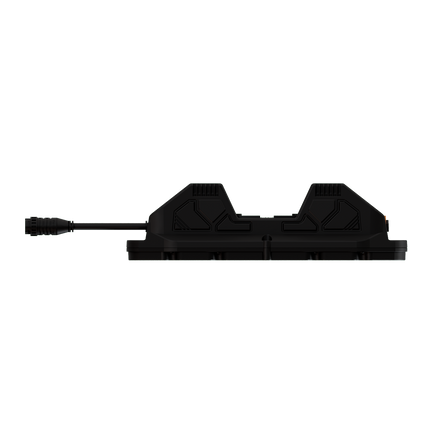

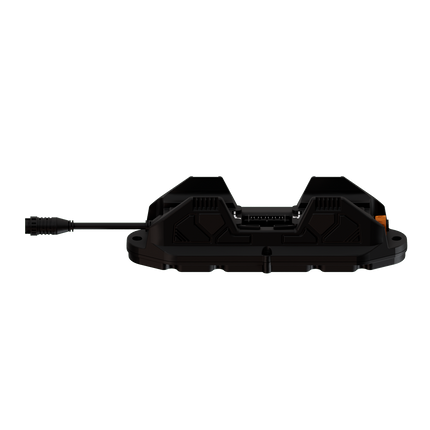

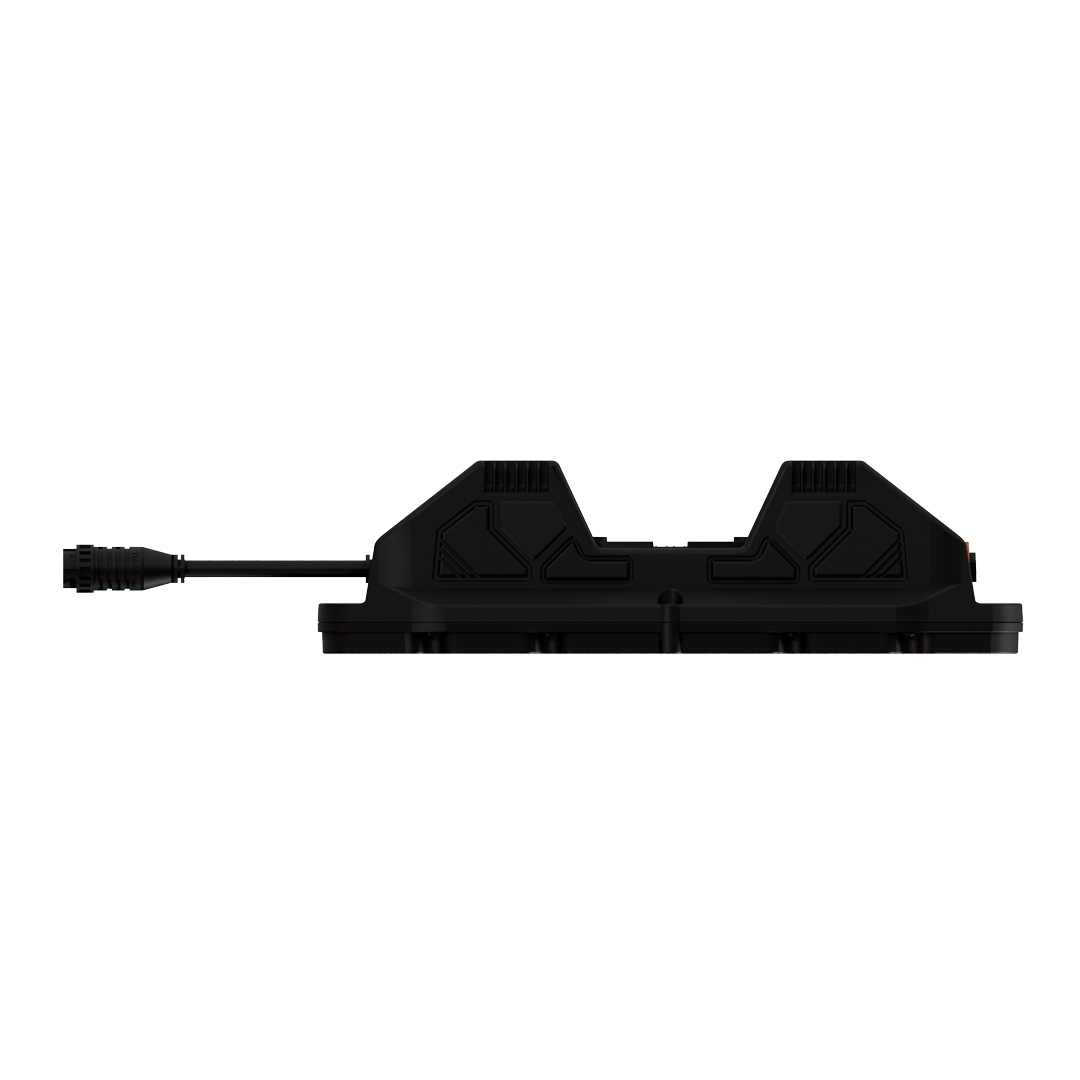

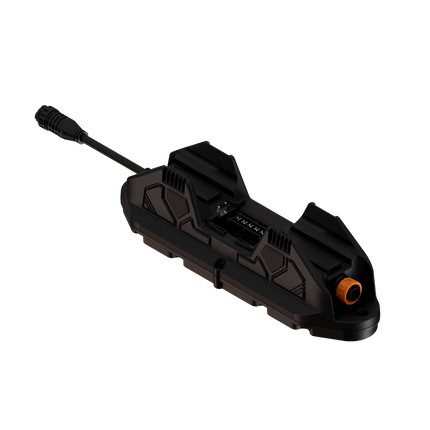

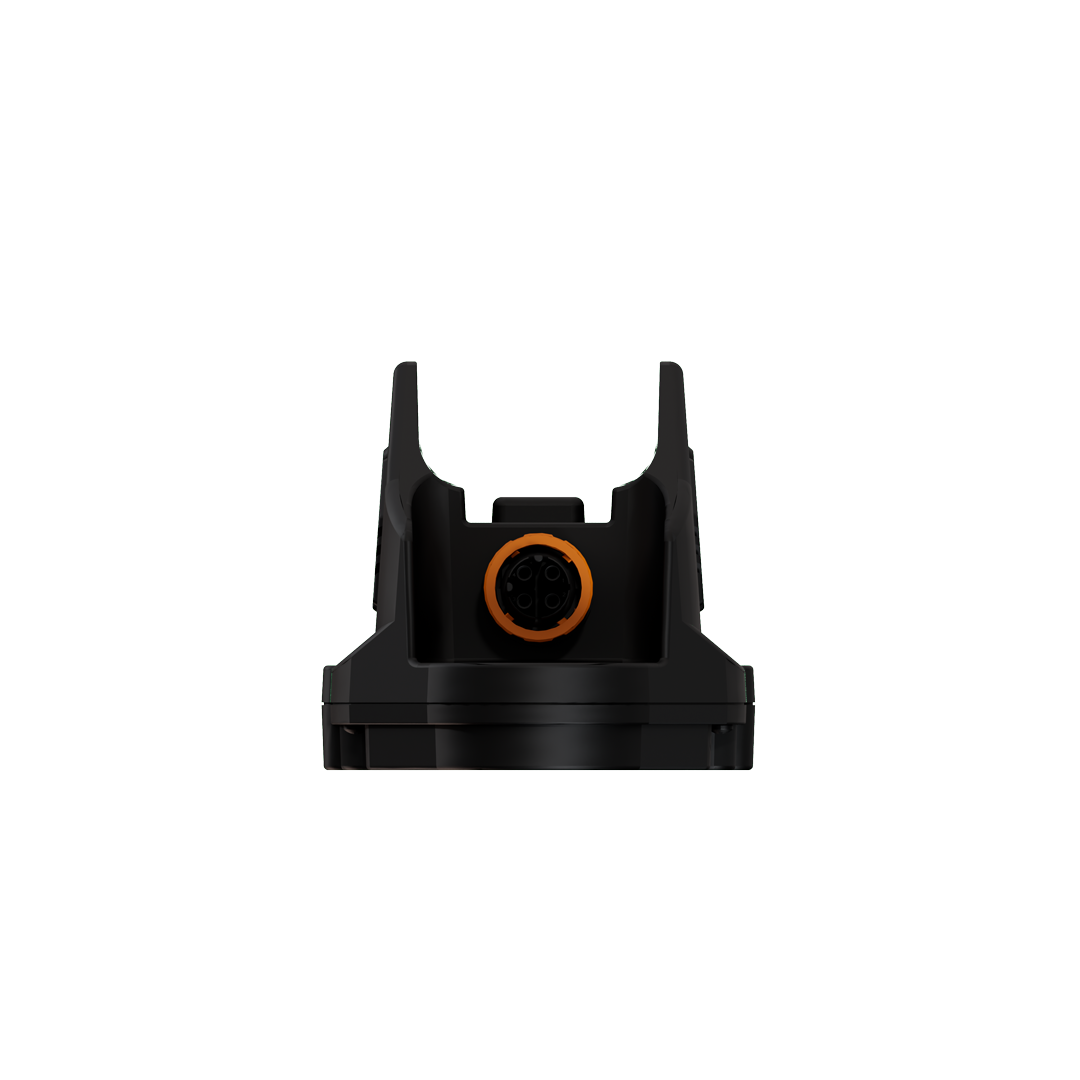

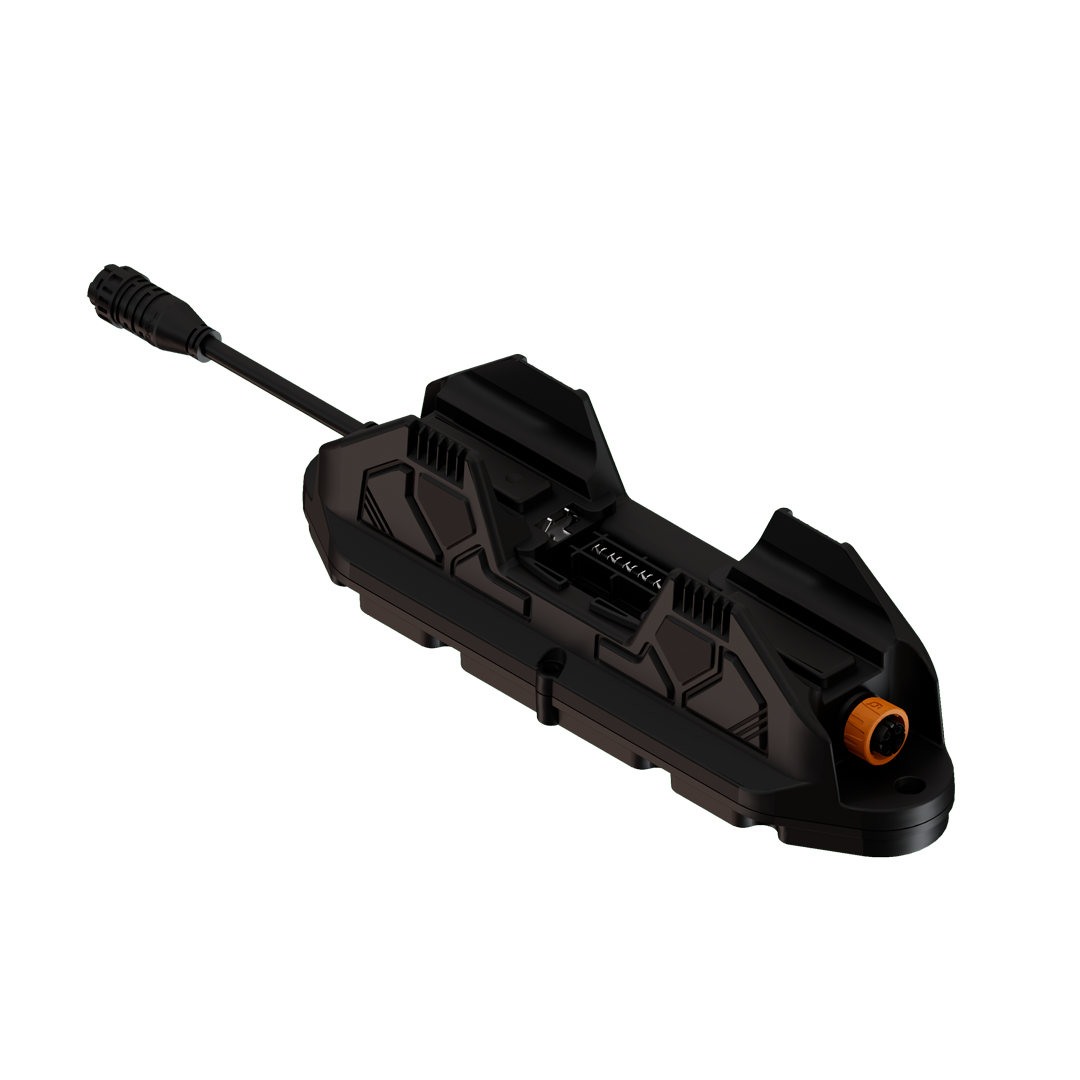

The TLD-4 is a plug-and-play 90-watt driver that runs one ThinkGrow Model One light bar. Pair it with a TLB-1 (4') or TLB-2 (5') bar, add more driver-and-bar sets to fit any space, and set its four spectrum channels independently from a TrolMaster HCS or TCS controller (sold separately).
- Input power: 90 W, autosensing 100–277 V, 50/60 Hz
- Amp draw: 0.77 A @ 120 V, 0.43 A @ 208 V, 0.39 A @ 240 V, 0.35 A @ 277 V
- Four independently adjustable spectrum channels
- Works with ThinkGrow TLB-1 (4') or TLB-2 (5') Model One bars
- Max drivers per daisy-chained group: 11 @ 120 V, 19 @ 208 V, 21 @ 230 V, 22 @ 240 V, 25 @ 277 V
- Links to the next driver with a TDC-2/3/4 daisy-chain cord; each group powers up through a TDC splitter power cord (sold separately)
- IP56 · working temperature 32–104°F
- 5-year ThinkGrow warranty
In the box: TLD-4 driver, 2 twist-lock plates, 2 Unistrut nuts, 2 hex socket screws.
