Description

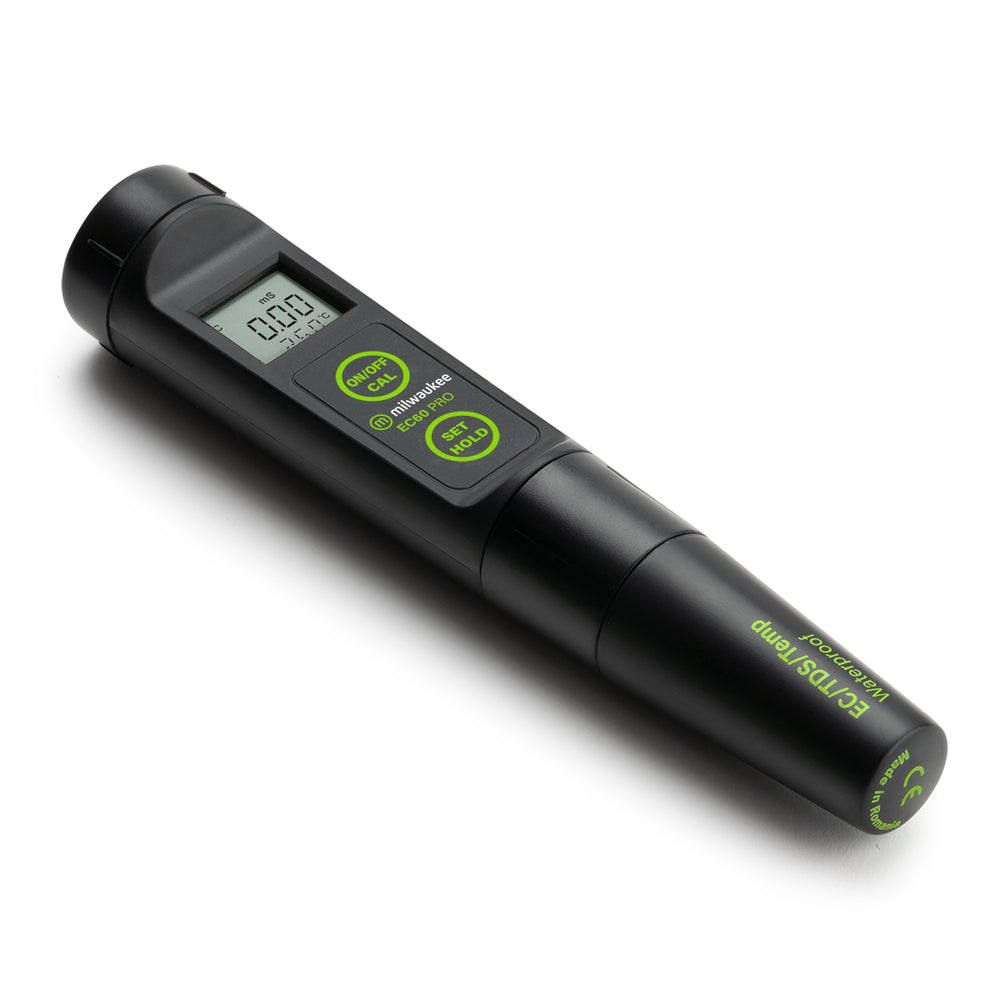

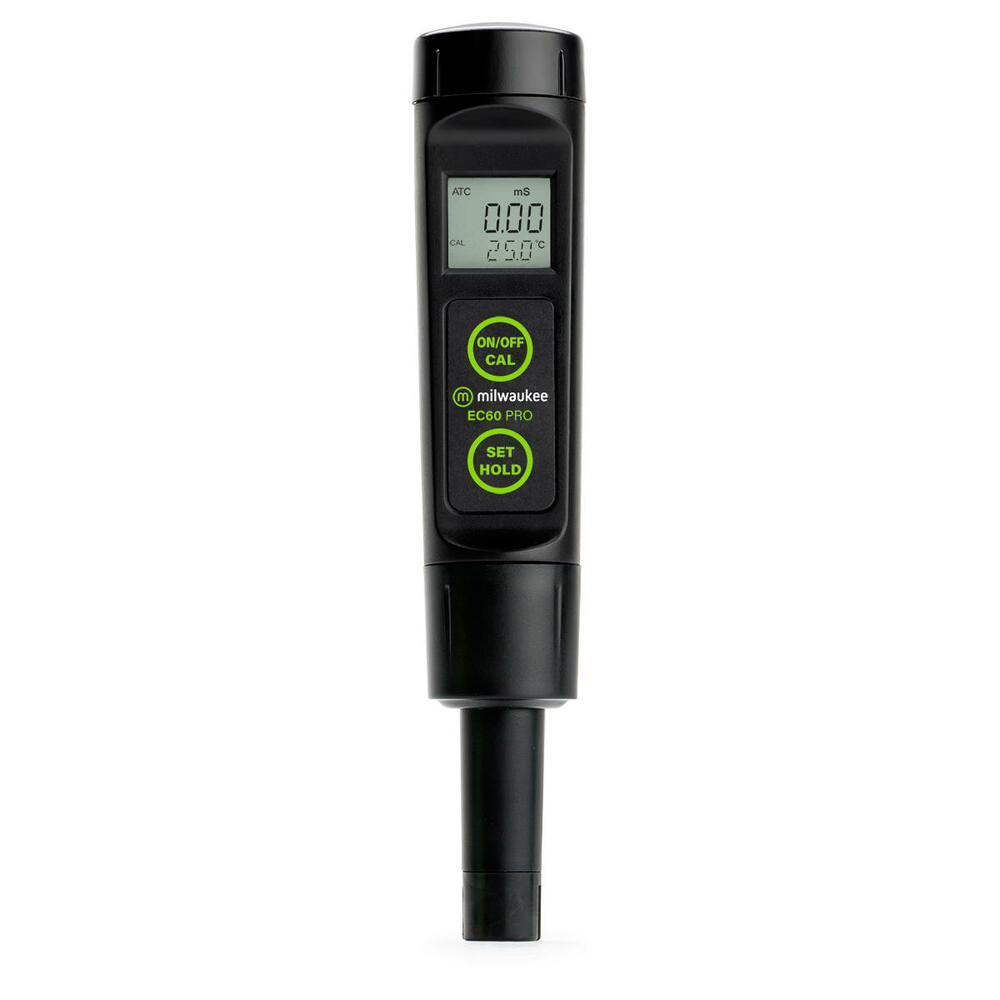

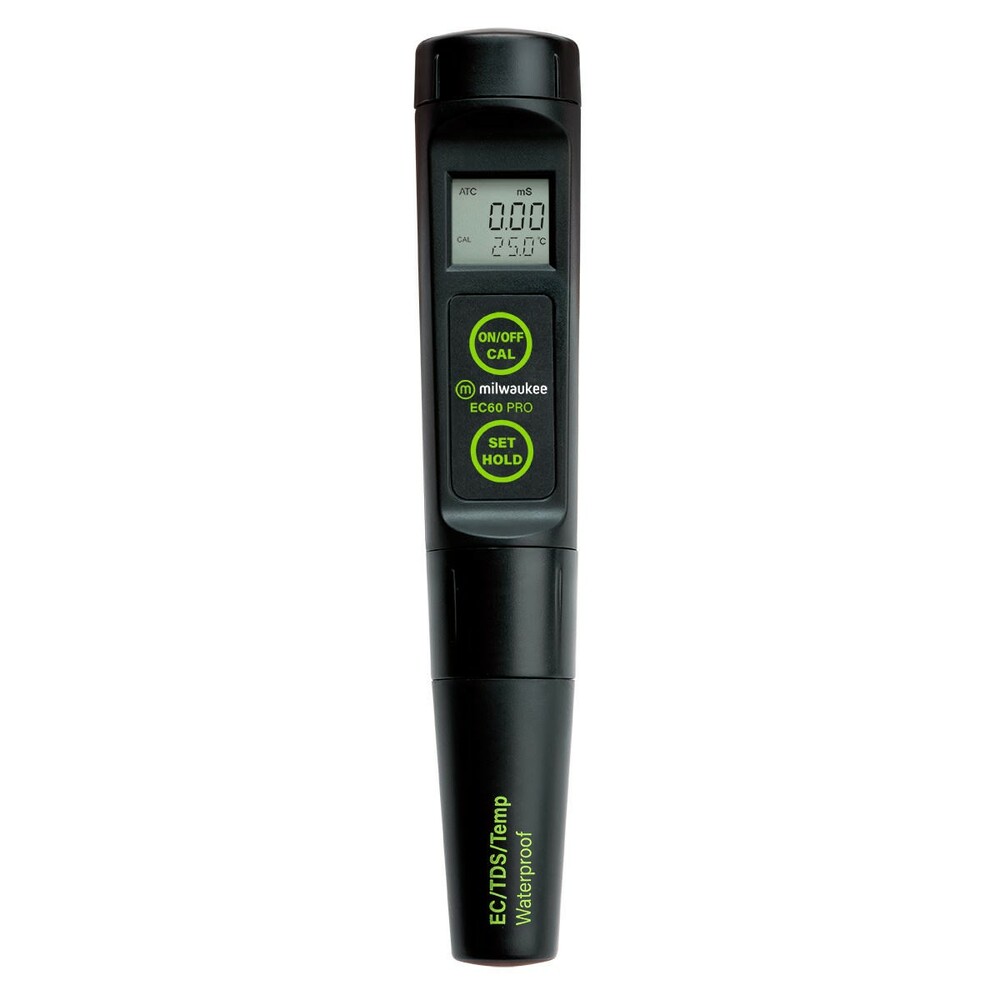

The Milwaukee EC60 PRO Conductivity Tester is designed for hydroponic and other growers to help you make sure that your plants have the ideal amount of nutrient avaiable. Keep EC in your target range to help your achieve better results.
DESIGN FEATURES
Measures conductivity and TDS with automatic temperature compensation.
Ideal range for hydroponic and other growers (0.00 to 20.00 mS/cm).
Units in mS/cm or ppt easily convertable to ppm.

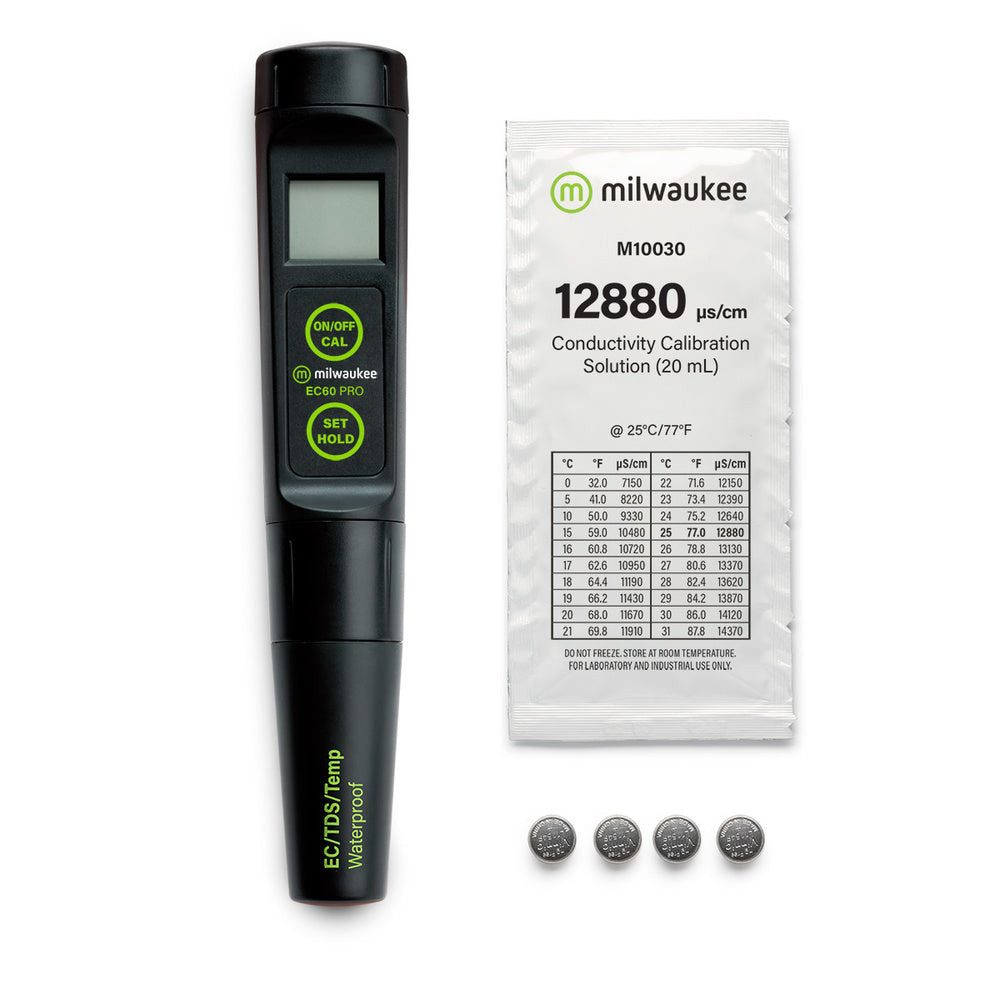

Factory calibrated with the ability to recalibrate if needed.

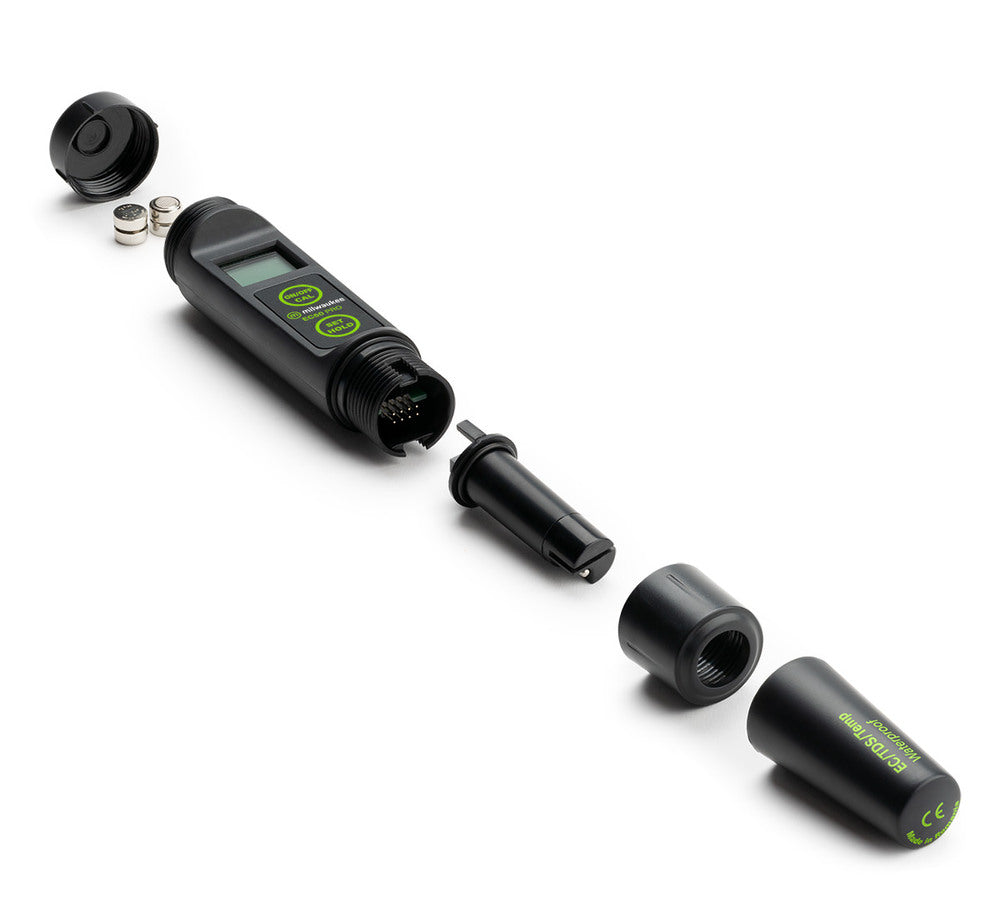

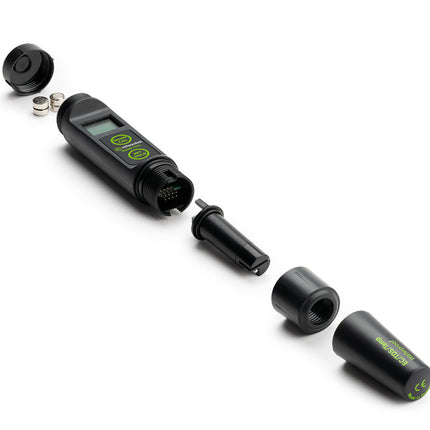

Replaceable electrode.
Fully waterproof to IP65.
Approximately 100 hours of use (4 x 1.5V batteries included).
CARE AND USE
MAINTENANCE
EC electrodes can develop nutrient build up over time. To miminize build up, always rinse the probe in fresh tap water after every use.
CONVERTING EC TO TDS
The Milwaukee EC60 PRO Conductivity Tester, like all conductivity meters, provides a measure of electrically charged ions in a solution and is an absolute measure of conductivity.In Hydroponics, EC is often converted to TDS in parts per million (ppm). Different scales include the 500 scale, 650 scale and the 700 scale. However, true PPM can only be determined through chemical analysis.Your mS/cm reading can be approximately converted to TDS (ppm) as shown in the examples below.2.00 mS/cm = 2000 uS/cm = 1000 ppm on .50 factor scale2.00 mS/cm = 2000 uS/cm = 1400 ppm on the 442 scale or .70 factor scale
SPECIFICATIONS
EC Range: 0.00-20.00 mS/cm
TDS Range: 0.00-10.00 ppt
Temp Range: 0.0 to 60.0°C / 32.0 to 140.0°F
EC Resolution: 0.01 mS/cm
TDS Resolution: 0.01 ppt
Temp Resolution: 0.1°C / 0.1°F
EC Accuracy: 2% Full Scale
TDS Accuracy: 2% Full Scale
Temp Accuracy: ±0.5°C / ±1°F
EC Typical EMC Deviation: 2% Full Scale
TDS Typical EMC Deviation: 2% Full Scale Temp
Typical EMC Deviation Temperature: ±0.5°C / ±1°F
Calibration: Automatic, 1 point
Temperature Compensation: Automatic, with β=0.0 to 2.4%/°C
Probe: Mi59P (replaceable)
Environment: 0 to 50°C / 32 to 122°F; max RH 100%
Battery Type: 4 x 1.5V; IEC LR44, A76 (included)
Battery Life: Approx. 100 hours of use
Auto-off: After 8 minutes of non-use
Dimensions: 7.9 √ó dia 1.5 inches
Weight: 3.5 ounces
