Description
This Fluence Wireless Flex Dimming receiver lets you dim a fixture without running dimming cables. It plugs straight into the plastic M16 push-lock dimming port on a Fluence power supply and takes its dimming signal over a Bluetooth mesh network from a Wireless Flex 0-10V adapter, which can be driven by a SHYFT Light Scheduler (with the SHYFT adapter) or any lighting controller with a standard 0-10 V output and a 12-24 V DC supply.

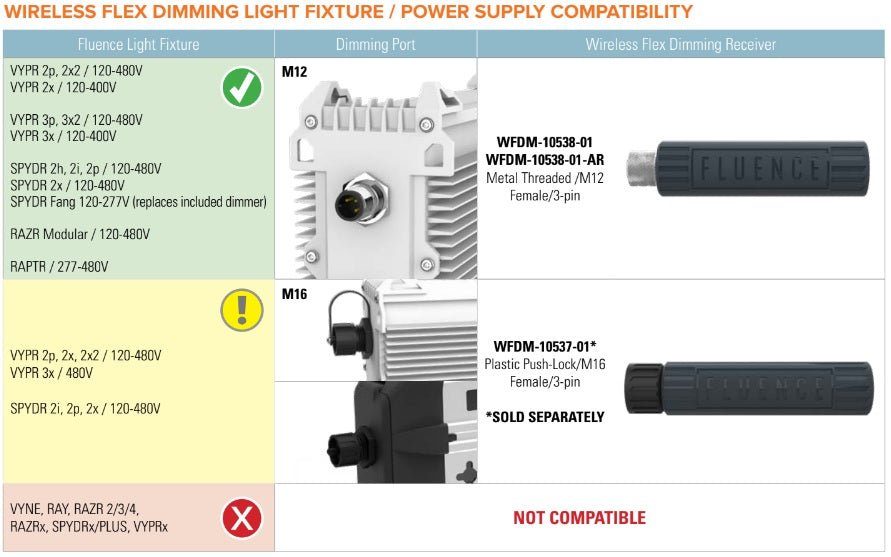

Use one receiver per power supply. This M16 version is for power supplies with the push-lock M16 port used on SPYDR 2 and VYPR 2 fixtures before Fluence moved to M12; fixtures with a threaded M12 port need the M12 receiver instead. It's rated IP66 for indoor or outdoor use, and Fluence specifies it for approved Fluence power supplies only.
Fits: Fluence power supplies with a plastic M16 push-lock, 3-pin dimming port
Wireless: Bluetooth mesh (SILVAIR), 2.4 GHz; 50 ft line of sight, up to 8 hops
Output: 0-10 V DC (0-100% dimming), powered by the fixture's power supply (12 V DC)
Capacity: up to 300 receivers per Wireless Flex 0-10V adapter
Rating: IP66, indoor/outdoor; 14-140 °F operating
Size and weight: 3.79 in long x 0.87 in diameter; 1.1 oz (31 g)
Certifications: CE, FCC, IC, Bluetooth
Warranty: 5-year limited (Fluence)
Fluence part number: 912401701778 (WF1DG-RC13P6FBTX)
