Description

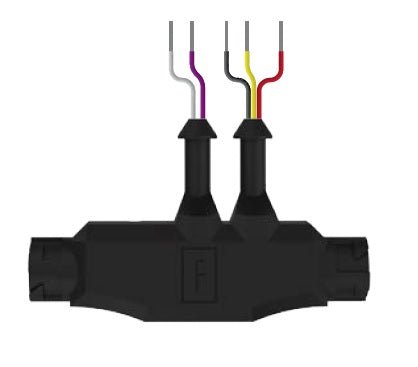

This adapter connects Fluence Wireless Flex Dimming to a Fluence SHYFT Light Scheduler. It installs inside the back of the SHYFT, wiring into its terminal block, and gives the SHYFT two zone ports (CH 1 and CH 2) where Wireless Flex 0-10V adapters click on.
Use one port for a single lighting zone or both for two zones, and cover an unused port with the Wireless Flex dust cap. The SHYFT's own power adapter powers the unit and the attached wireless adapters, and each fixture then needs one Wireless Flex receiver on its power supply. This adapter is only needed when a SHYFT is your controller.
For: Fluence SHYFT Light Scheduler
Ports: 2 (CH 1 = Zone 1, CH 2 = Zone 2)
Connects: Wireless Flex 0-10V adapters, one per zone
Install: inside the back of the SHYFT, wired to its terminal block
Not included: SHYFT, Wireless Flex 0-10V adapters, receivers, dust cap
Fluence part number: 912401701790 (WF1DA-SW14L4XP6M)
