Description

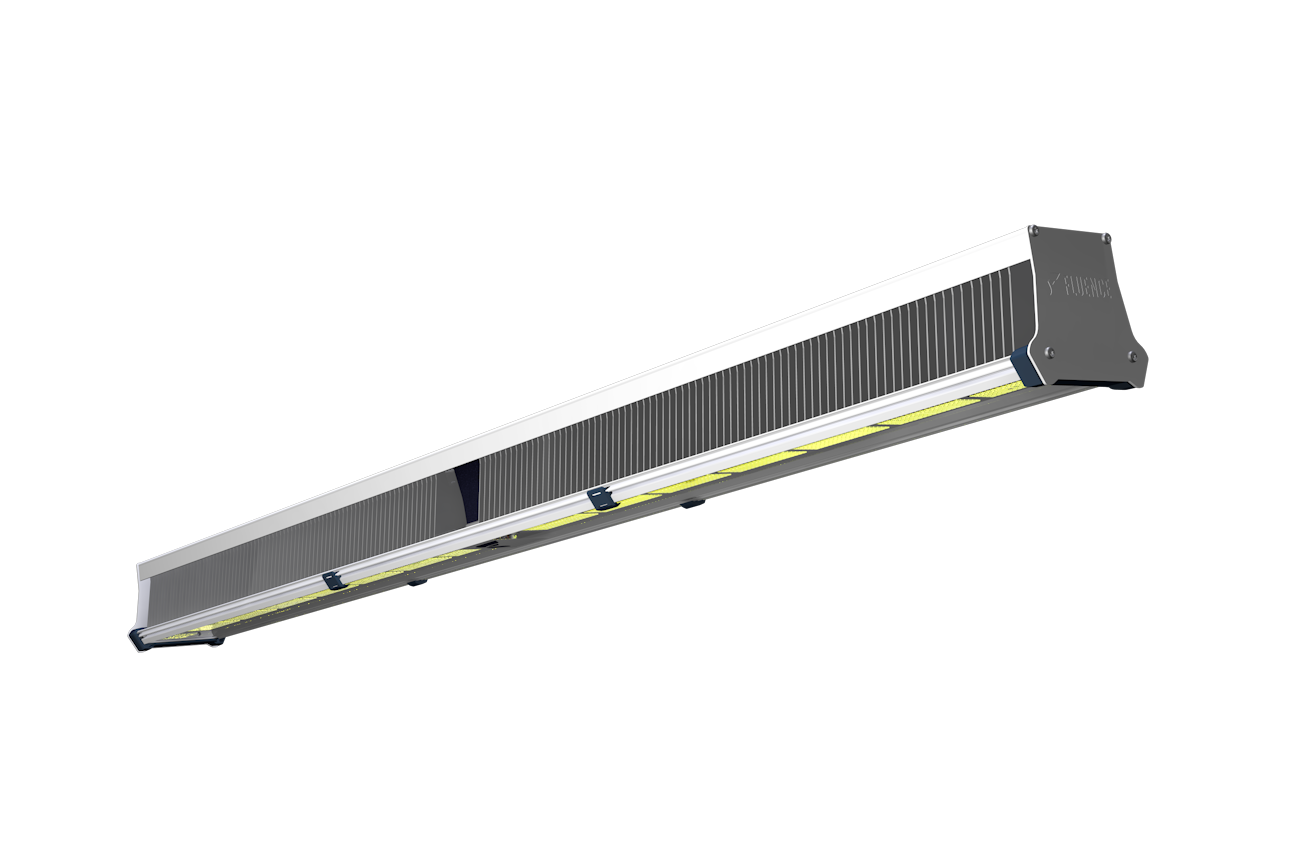

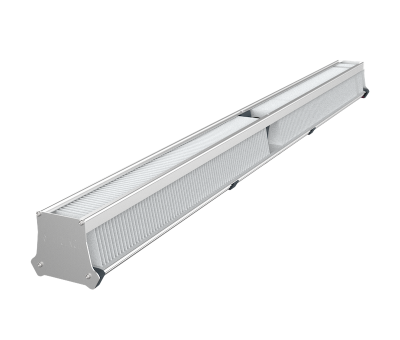

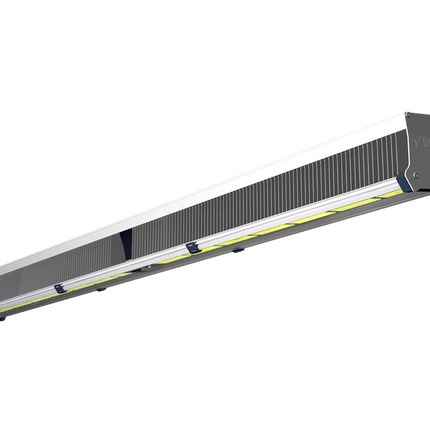

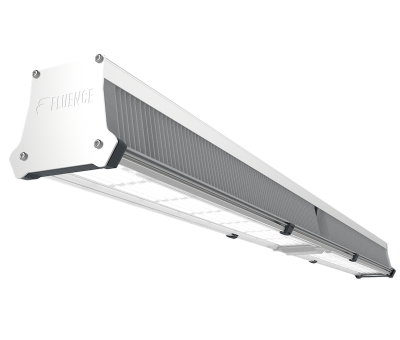

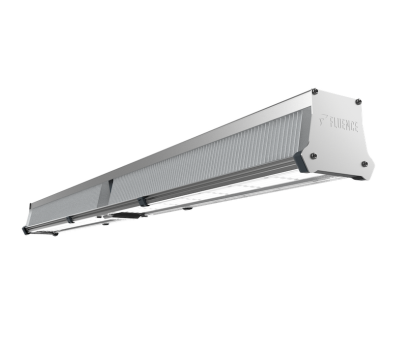

The VYPR 4x2 is Fluence's duo-mount VYPR 4: two sealed 24-inch VYPR 4x light bars running from one 800 W power supply, for greenhouse and single-tier indoor top lighting or HPS retrofits. On the Broad R8 spectrum Fluence rates each bar at up to 1,370 µmol/s, at 3.3 µmol/J.
- Input power: 830–844 W for the pair (Fluence rating at 400 V)

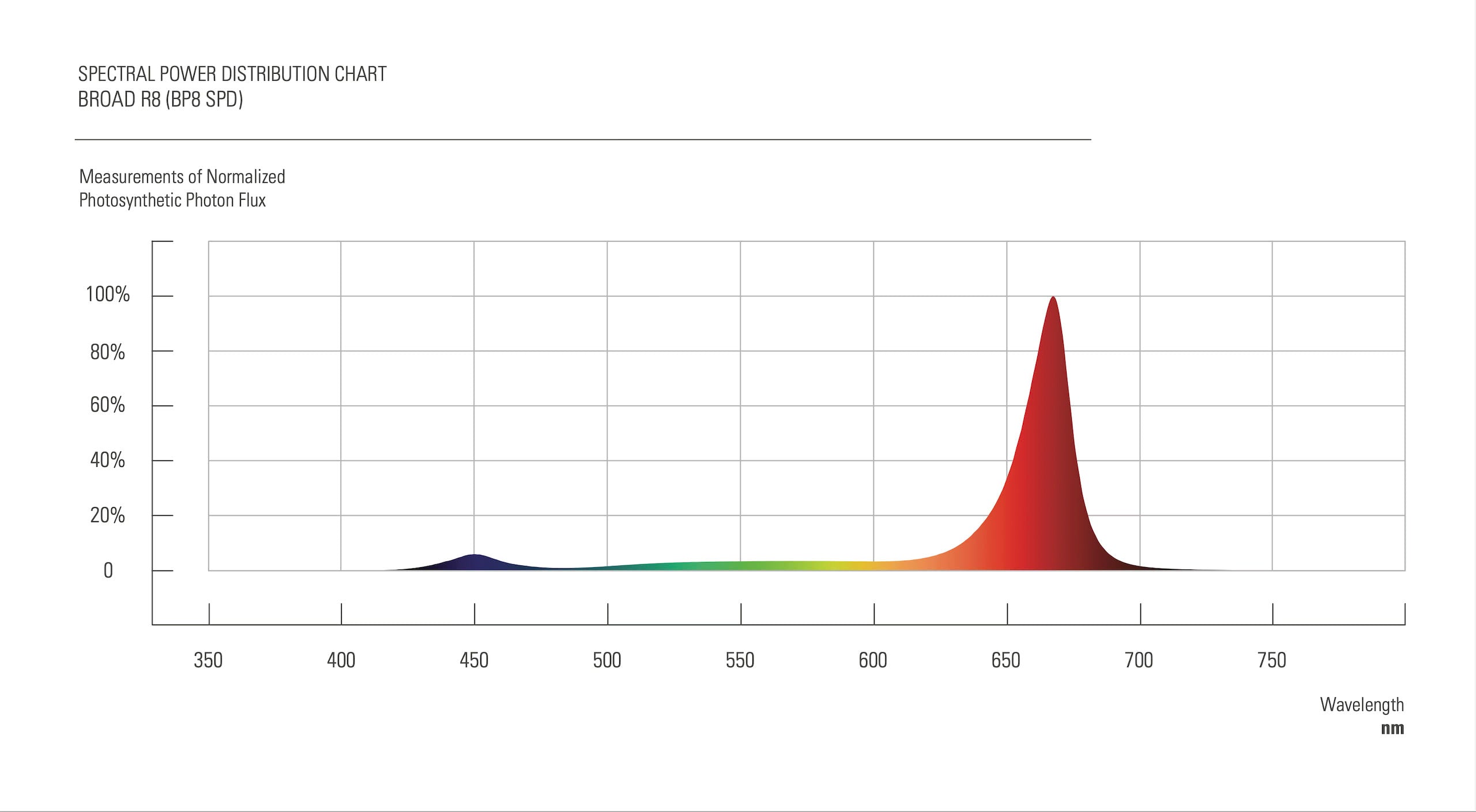

- PPF / efficacy (per bar): Broad R4 clear glass 1,120 µmol/s at 2.7 µmol/J; Broad R8 clear glass 1,370 µmol/s at 3.3 µmol/J; Broad R8 wide beam 1,320 µmol/s at 3.2 µmol/J
- Optics: clear glass (Lambertian distribution) or Wide Beam optic, which Fluence offers on Broad R8 only
- Input voltage: 200–480 V AC, 50/60 Hz
- Light bars: two at 23.8" x 4.2" x 3.6"; power supply: 12.5" x 5.6" x 1.9"
- Dimming: 0–10 V, 10–100% and dim-to-off
- Passive cooling; IP66; rated for up to 104°F (40°C) ambient
- cETLus, CE, UKCA, Wet Location; DLC listed for indoor (non-stacked) and greenhouse use
- Rated life Q90 over 50,000 hours · 5-year limited Fluence warranty
- Weight (two bars plus power supply): 19.0 lb
Good to know: Fluence lists the AC power cable, the DC T-splitter and cables between power supply and bars, and the mounting hardware as separate parts in its ordering guide.
