Description

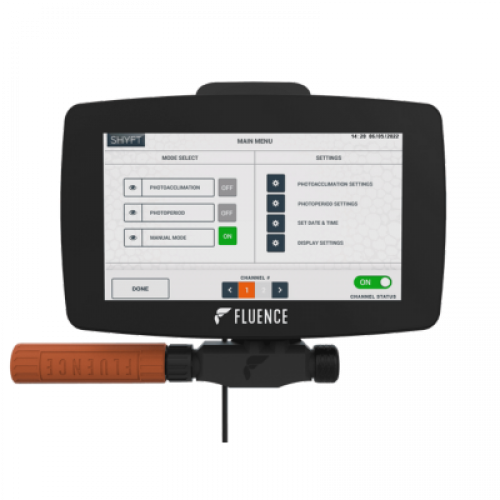

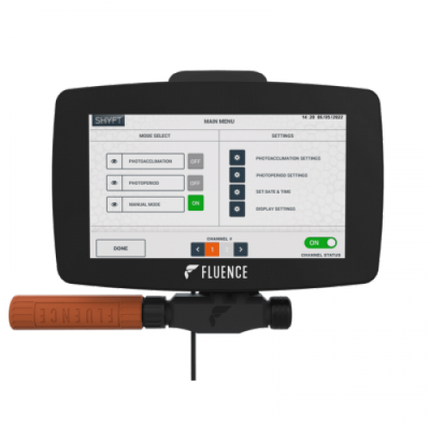

SHYFT is Fluence's touch-screen light scheduler for 0–10 V dimmable fixtures. It runs two independent zones of up to 50 fixtures each, with a 24-hour photoperiod schedule, optional simulated sunrise and sunset, gradual photoacclimation ramps and manual set-and-hold dimming.

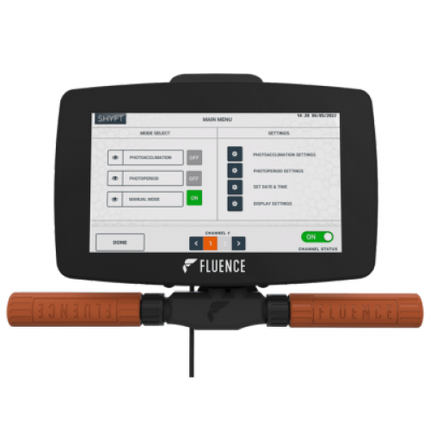

- Channels: 2 independent 0–10 V zones; up to 50 fixtures (or 100 mA dimming current) per channel
- Modes: Photoperiod (24-hour schedule, optional sunrise/sunset), Photoacclimation (up to 20 days), Manual
- Signal: 0–10 V, ±0.1 V accuracy; 100 mA source / 30 mA sink per channel; 200–300 ft max signal wire per channel

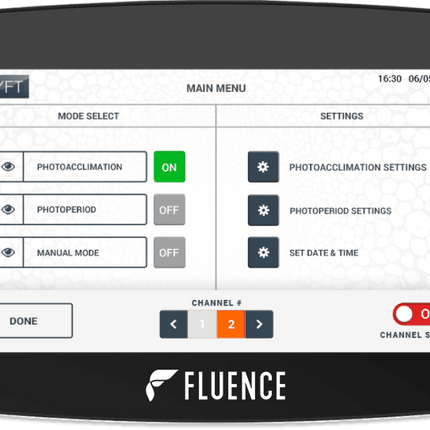

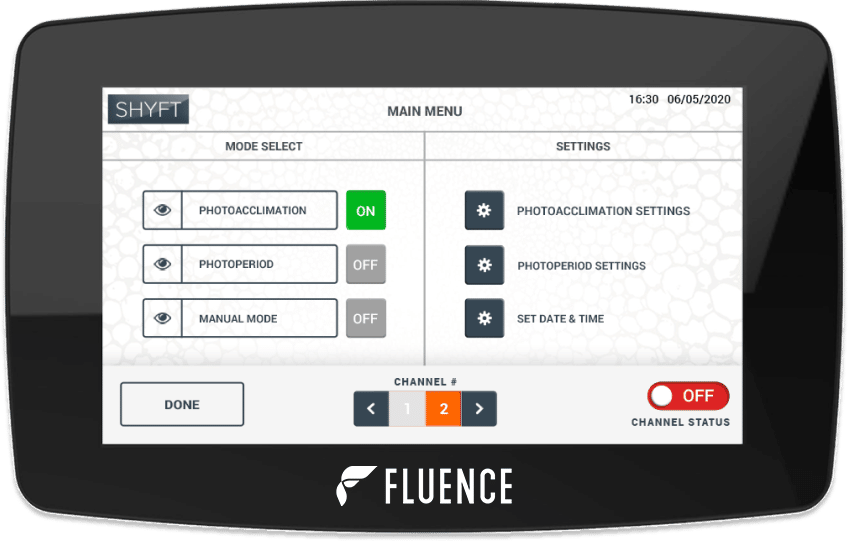

- Full-color LCD touch screen with on-screen dimming-channel fault indicators
- Internal battery keeps your settings through a power outage
- IP65, Type 3R indoor/outdoor enclosure; 32–122°F (0–50°C) operating
- Mounts on a wall/surface or 35 mm DIN rail · 7.95" x 5.36" x 1.46" · 2.0 lb
- cULus and FCC
- Works with Fluence Wireless Flex Dimming (adapter sold separately)
In the box: SHYFT Light Scheduler, wall/DIN-rail mounting bracket, drywall anchors and #10 screws, and a 120 V AC plug-in power adapter. Dimming cables are sold separately.
