Description

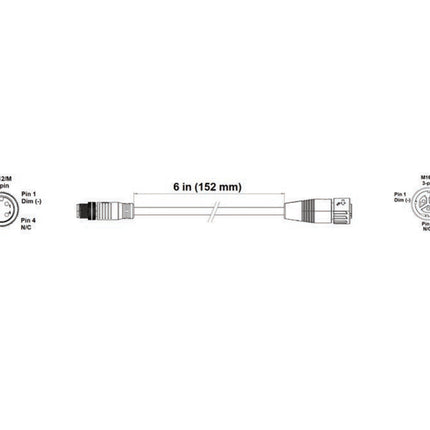

This short Fluence adapter lets M12 dimming cables connect to Fluence power supplies that have the older plastic M16 push-lock dimming port. The M16 push-lock end plugs onto the power supply's dimming port, and the threaded M12 end accepts Fluence M12 dimming cables, such as a dimming signal cable or a DIM Flex T-cable drop.
Fluence specifies this adapter for its PSU1 and PSE2 power supplies with an M16 push-lock dimming port. It's part of Fluence's DIM Flex M12 wiring system, which Fluence rates as suitable for wet locations.
Length: 6 in (152 mm)
Power-supply end: M16 push-lock, female, 3-pin
Cable end: M12 threaded (screw lock), male, 3-pin
For: Fluence PSU1 and PSE2 power supplies with an M16 push-lock dimming port
Warranty: 1-year limited (Fluence)
Fluence part number: 912401701728 (ACA-XXU3P6FT2M0.1)
