Light Controllers

Mammoth Lighting's controllers let you dim, schedule and group-control Mammoth LED fixtures from one place instead of walking the room turning knobs. There are three models, and each one comes with a temperature and humidity sensor. Green (Wi-Fi + app): RJ45 and RJ12 ports. RJ45 runs all three channels on Mammoth spectrum-tuning fixtures (10-Bar UV and 950W 8-Bar); RJ12 works with Mammoth's other lights except the 50W clone bars Green also includes 4 UBC cords to run fans, humidifiers and dehumidifiers; CO2 sensor, PAR sensor and AC on/off plug sold separately White (touchscreen + Bluetooth app): RJ45 and RJ12 ports with independent channel control, on/off schedules, dimming and sunrise/sunset simulation; RJ45-to-RJ12/14 adapter for running more fixed-spectrum lights sold separately Black (Bluetooth + Wi-Fi app): two RJ12 ports, each its own channel, with up to 50 linked lights per channel; Mammoth lists it as compatible with Mammoth lights and some other brands Set the fixture's dimmer knob to OFF or EXT when it runs from a controller 1-year warranty on controls

Read more less

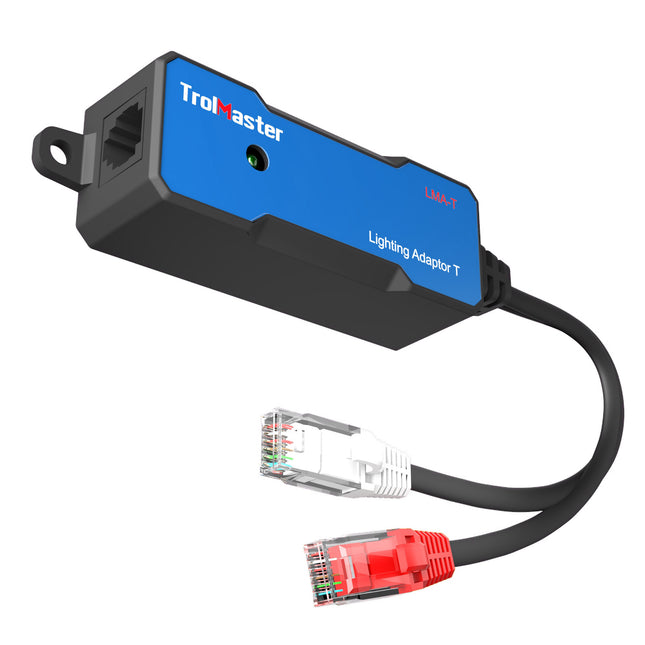

The TrolMaster LMA-T connects ThinkGrow LED systems to a Hydro-X controller. It plugs into the Line 1 and Line 2 lighting ports and gives you two channels, one for the full-spectrum diodes and one for the supplemental red, each with its own on/off times and dimming. The LEDs daisy-chain back to the controller with plug-and-play RJ lighting cables. Designed for ThinkGrow LED systems Two channels: full spectrum and second red, each with on/off times and dimming Connects to the Hydro-X Line 1 and Line 2 lighting ports Runs up to 256 ThinkGrow LEDs per adapter LED indicator; plug and play Input: 12 V, 0.1 A max Working environment: 32–122°F, up to 90% RH In the box: LMA-T adapter, ECS-9 RJ12-to-waterproof connector cable.

Read more less

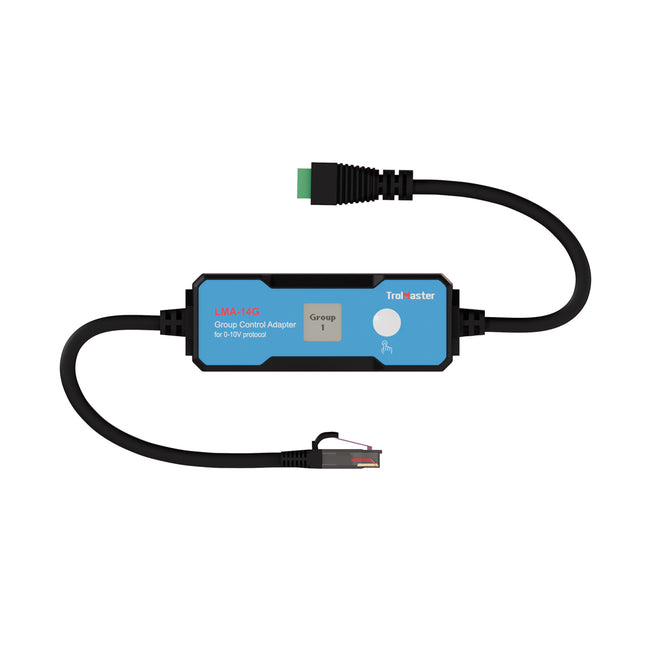

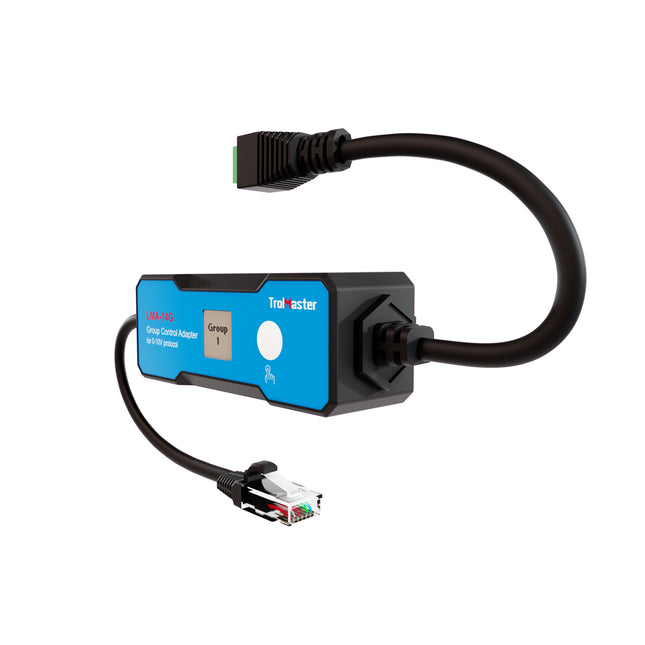

The TrolMaster LMA-14G connects 0–10 V light drivers to a Hydro-X Pro or Hydro-X Plus and assigns them to schedule groups, so different lights in the same room, like your inner-canopy and under-canopy LEDs, can run on their own programs. Each adapter handles up to 40 HID lights or 24 LEDs. For HCS-2 Hydro-X Pro and HCS-3 Hydro-X Plus controllers Up to 40 HID lights or 24 LEDs per adapter Lights assignable to groups 0–9 Two lines (Line 1 and Line 2) with independent settings Pigtail wiring to the LED driver's terminal block LCD display for group addressing; plug and play Input: 12 V · Output: 0–10 V, 0.05 A max Working environment: 32–122°F, up to 90% RH In the box: one LMA-14G group control adapter.

Read more less

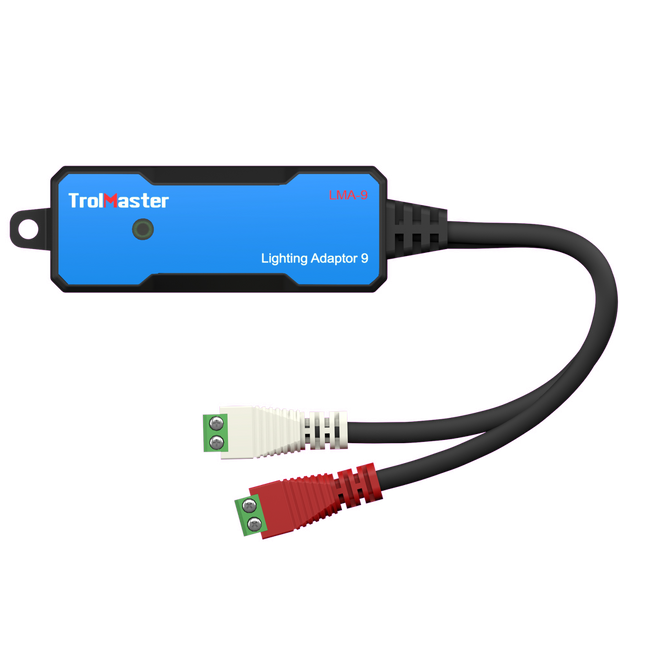

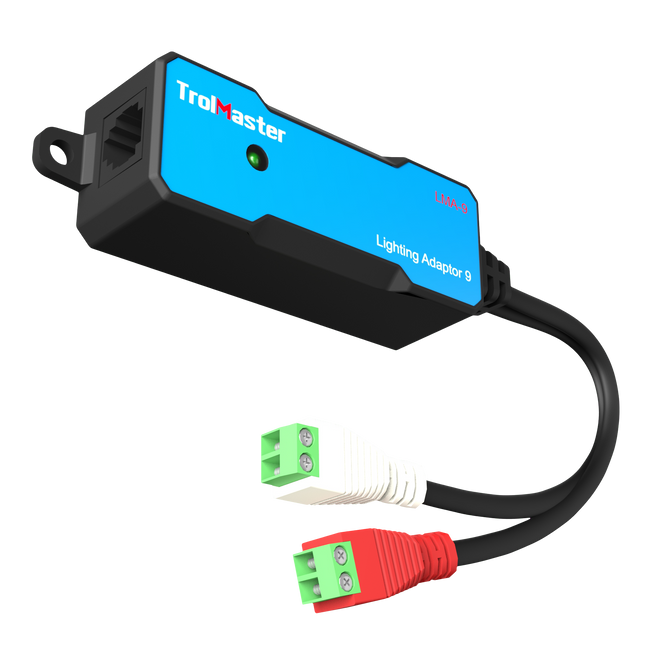

The TrolMaster LMA-9 lets a third-party controller with 0–10 VDC dimming outputs run ThinkGrow LEDs. It takes two separate 0–10 V channels, so the supplemental red diodes can be dimmed independently of the full-spectrum diodes, and converts them to the digital signal ThinkGrow fixtures use. Two 0–10 V input channels: full spectrum and supplemental red Twin cables with 2 + 2 hardwired terminals for the controller Single RJ12 port connects to the string of ThinkGrow LEDs LED indicator; plug and play Input: 0–10 V, 60 mA Working environment: 32–122°F, up to 90% RH In the box: LMA-9 adapter, ECS-9 12 ft RJ12 to 4-pin IP65 cable, power and signal connection cables.

Read more less

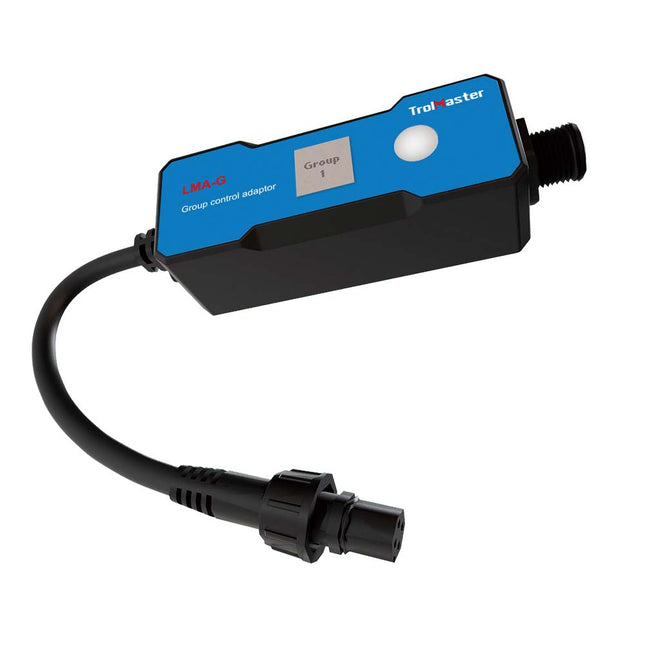

The TrolMaster LMA-G adds group control to ThinkGrow Model-I and Model-I Plus LED systems. Paired with the LMA-T lighting adapter on a Hydro-X Pro, it lets you run separate groups of lights on their own settings. Each LMA-G handles one group, so add one per group you want to split out. For ThinkGrow Model-I and Model-I Plus LED fixtures Works with the Hydro-X Pro and the LMA-T lighting adapter One light group per adapter; group and spectrum settings 0–9 LCD display for group addressing RJ12 connection; plug and play Input: 12 V, 0.1 A max Working environment: 32–122°F, up to 90% RH In the box: LMA-G group control adapter, ECS-9 12 ft RJ12 to 4-pin cable.

Read more less

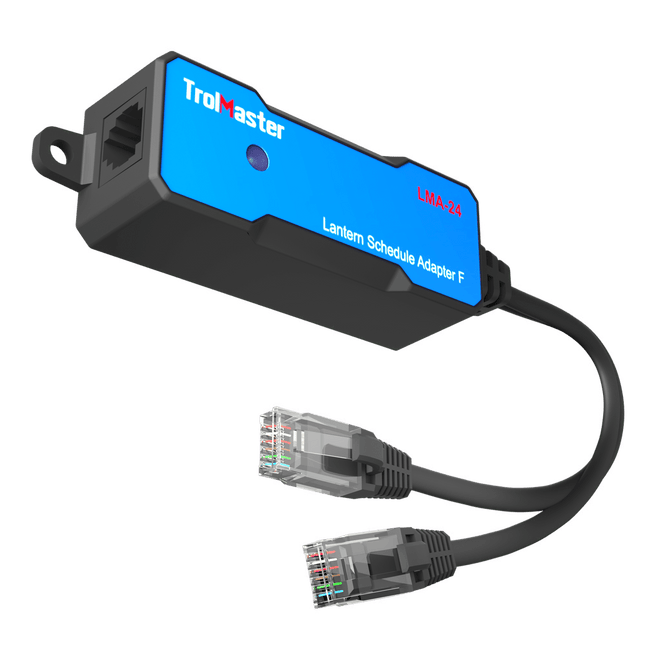

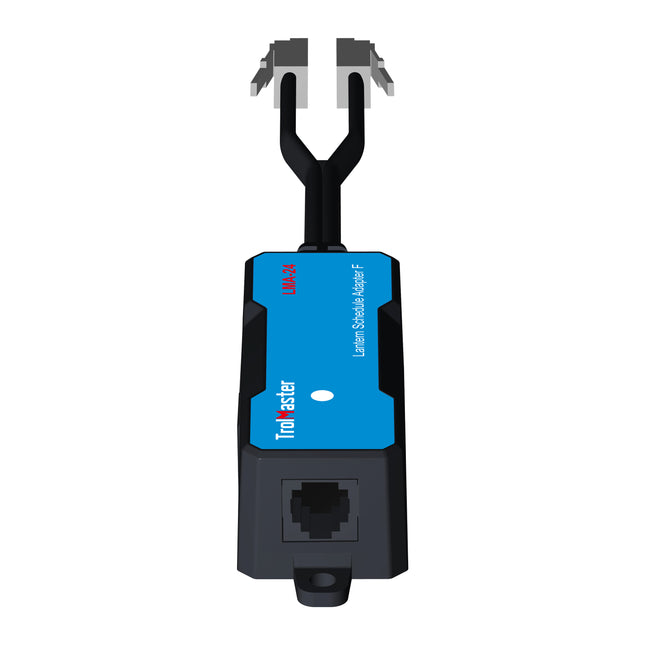

The TrolMaster LMA-24 uses two Hydro-X lighting channels to run a lantern schedule on fixtures with 0–10 V control. The lantern cycle is a 24-hour vegetative schedule: 12 hours on, 5.5 hours off, 1 hour on, then 5.5 hours off. TrolMaster says the short light break in the middle of the dark period keeps plants in a high-growth vegetative state. Runs a lantern (night-break) lighting schedule from your Hydro-X Uses two Hydro-X lighting channels For HID and LED fixtures with 0–10 V control Converts the Hydro-X digital signal to a 0–10 V analog output Connects with an RJ12 cable; plug and play; LED power indicator Input: 12 V · Output: 0–10 V, 0.05 A max Working environment: 32–122°F, up to 90% RH In the box: one LMA-24 lantern schedule adapter.

Read more less

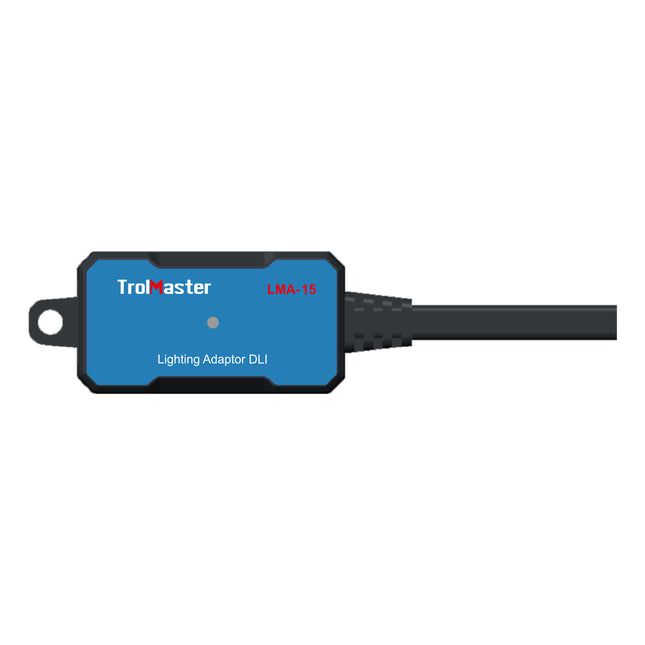

The TrolMaster LMA-15 lets a Hydro-X controller run DLI ballasts. It translates the Hydro-X digital signal into the analog low-volt control DLI ballasts use, so on/off schedules and dimming come from the same controller that runs the rest of the room. Designed for DLI ballasts Converts the Hydro-X digital signal to analog low-volt control Connects to the Hydro-X with an RJ12 cable; plug and play LED power indicator Input: 12 V, 0.2 A max Working environment: 32–122°F, up to 90% RH In the box: one LMA-15 lighting control adapter.

Read more less

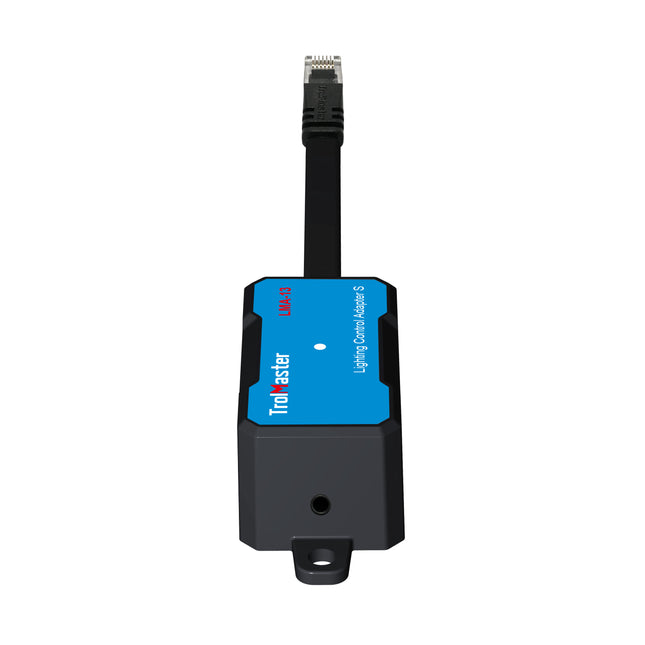

The TrolMaster LMA-13 lets a Hydro-X controller run Sun System ballasts. It translates the Hydro-X digital signal into the analog low-volt control those ballasts use, so on/off schedules and dimming come from the same controller that runs the rest of the room. It fits every Sun System ballast except the SunSystem LEC 630. For Sun System ballasts (not the SunSystem LEC 630) Converts the Hydro-X digital signal to analog low-volt control Connects to the Hydro-X with an RJ12 cable; plug and play LED power indicator Input: 12 V, 0.2 A max Working environment: 32–122°F, up to 90% RH In the box: one LMA-13 lighting control adapter.

Read more less

The TrolMaster LMA-11 lets a Hydro-X controller run your Phantom lights. It translates the Hydro-X digital signal into the analog low-volt control that Phantom LP ballasts and the Phantom 60 Series use, so on/off schedules and dimming come from the same controller that runs the rest of the room. For Phantom LP ballasts and Phantom 60 Series Converts the Hydro-X digital signal to analog low-volt control Connects to the Hydro-X with an RJ12 cable; plug and play LED power indicator Input: 12 V, 0.2 A max Working environment: 32–122°F, up to 90% RH In the box: one LMA-11 lighting control adapter.

Read more less

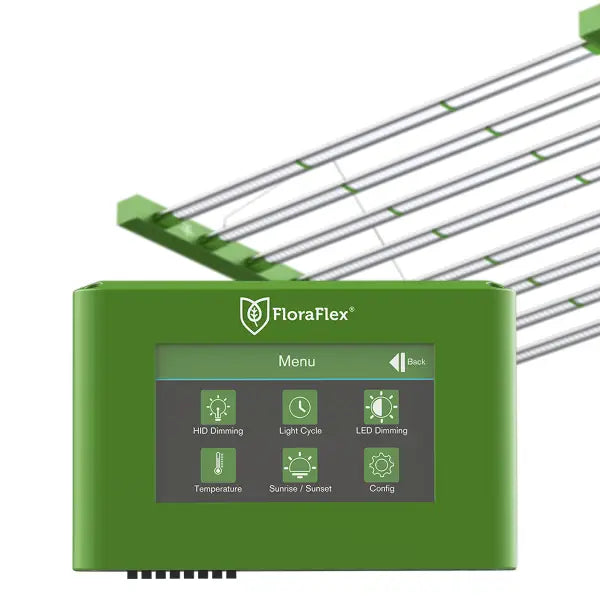

 Product Specifications: Supplemental Lighting Feature: Set two different light cycles per zone.  Output Range: 10%-115% Numbers of Ballasts per Output: 100 pcs Max Max Cable Length per Group: 100 meters Control Voltage Outputs: 2 Groups, A/B Temperature Sensor: 2 Groups, A/B Overheat Protection: Yes Sunrise/Sunset Period: Yes Setup Ballast Type: 1000W/945W/750W/630W/600W/500W/315W/Not Sure Alarm Port: 2 Groups, NO/NC ECM Port: 2 Groups, A/B Weight: 0.5kg Warranty: 3 years

Read more less

The Titan Controls Helios 8 is a Professional Series 8-light controller. With the attached dual trigger cords you can establish two separate lighting schedules. The Titan Controls Helios 8 was constructed with commercial-grade "ballast-rated" relays. It works with both 120V and 240V power cords and can be hooked up through a 50 amp input circuit.

Read more less

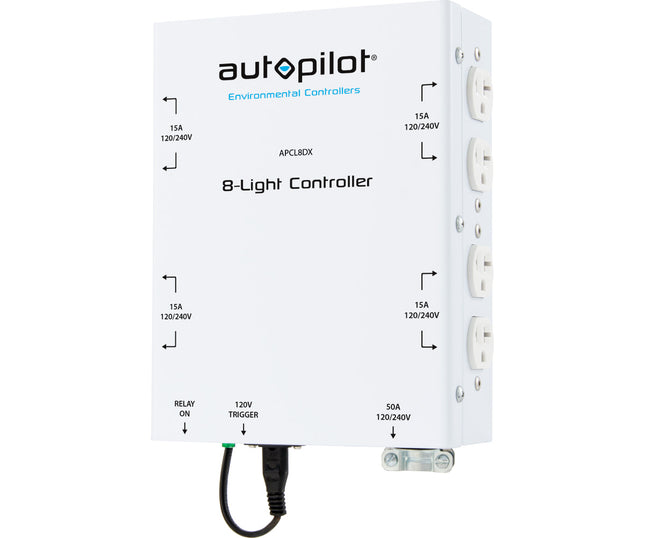

The 8 light controller operates up to 8000 W of grow lights in your garden. It features heavy-duty definite purpose contactors, dual trigger cord sets that give you the flexibility to stagger lighting schedules or delay starting times via an external wall timer and universal outlets that allow the use of 120 V or 240 V cord sets. The controller is housed in a rust-, dust- and moisture-proof enclosure. 50 Amps input power/40 Amps output power/240 V/60 Hz/8000 W.

Read more less

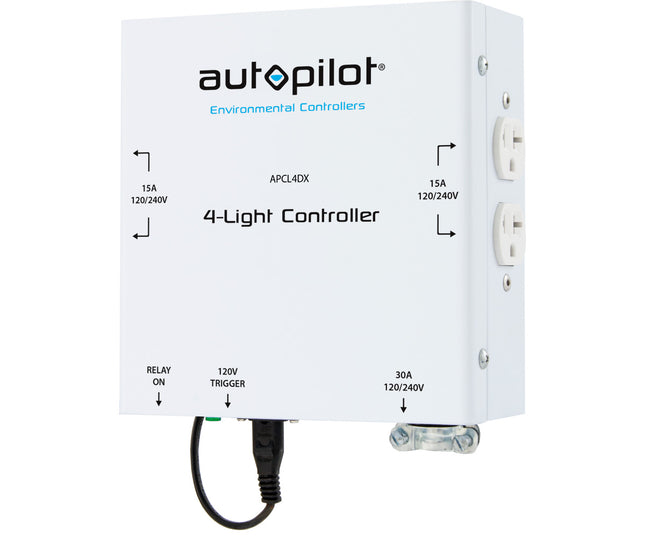

The 4 light controller operates up to 4000 W of grow lights in your garden. It features heavy-duty definite purpose contactor, trigger cord set that activates your lights via an external wall timer and universal outlets that allow the use of 120 V or 240 V cord sets. The controller is housed in a rust-, dust- and moisture-proof enclosure. 30 Amps input power/20 Amps output power/240 V/60 Hz/4000 W.

Read more less

TrolMaster’s Hydro-X system can control most of the horticultural lighting fixtures sold on the market today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.
