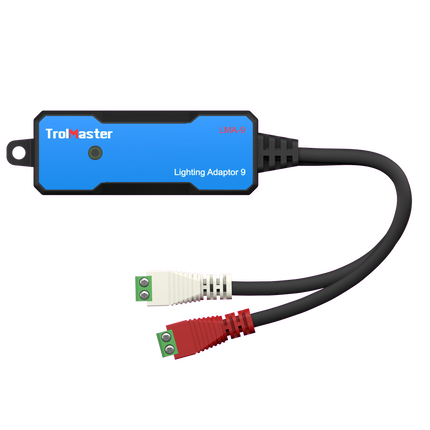

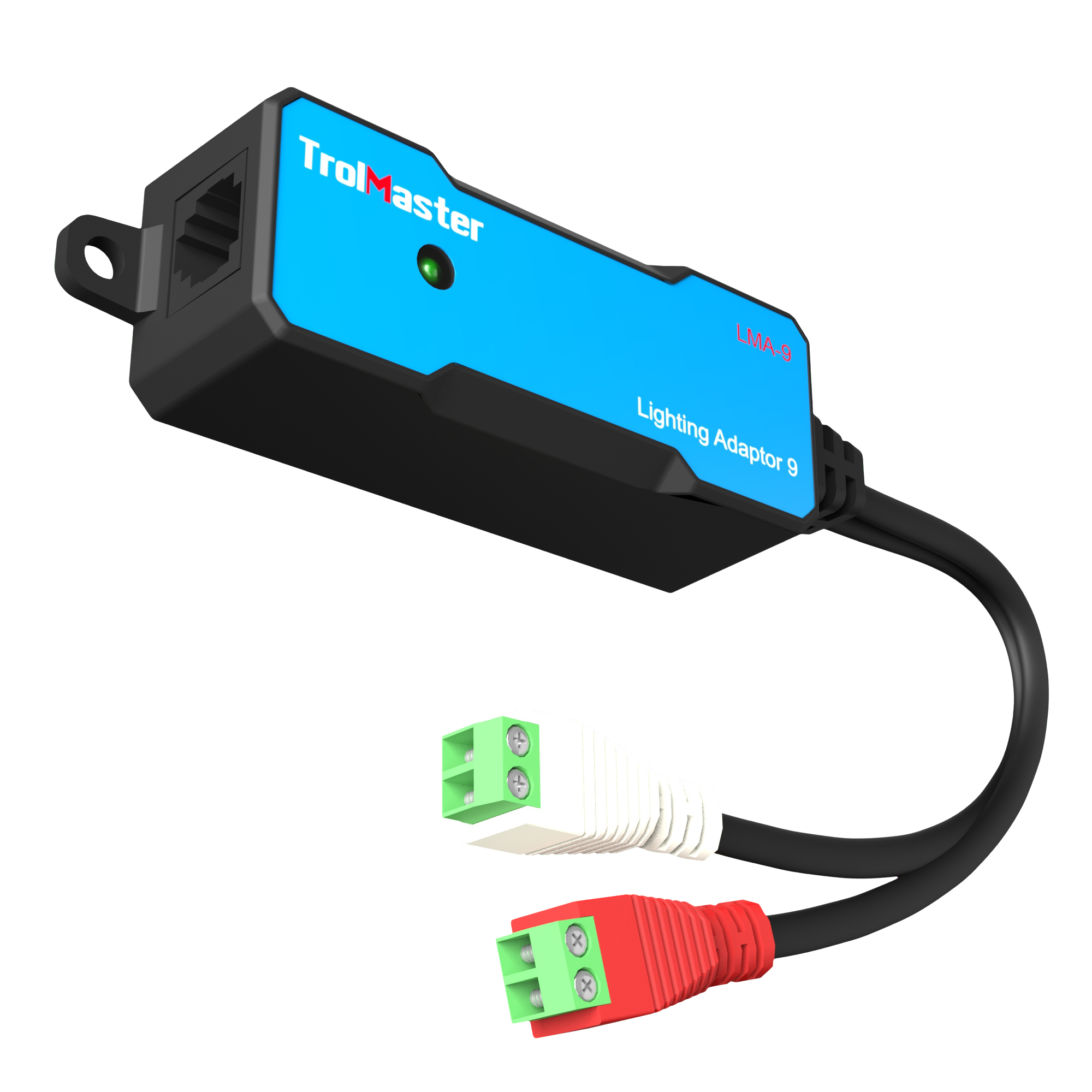

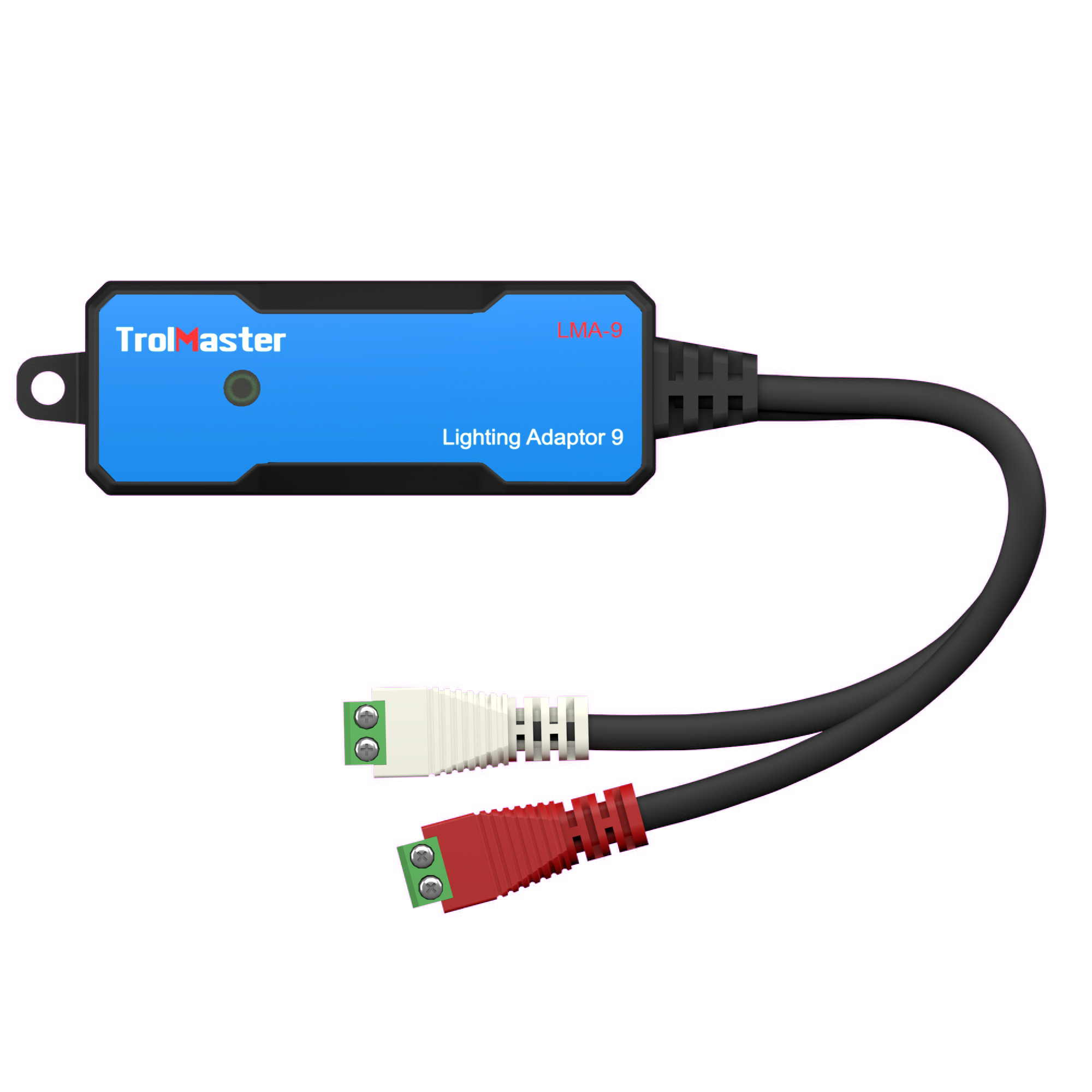

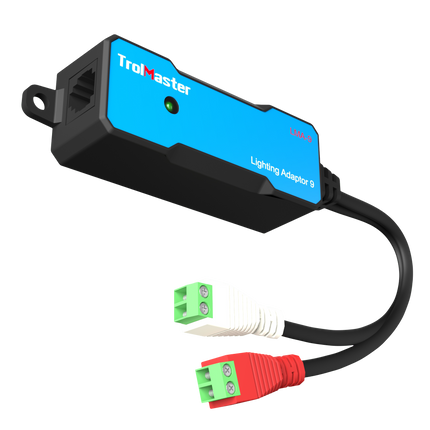

TrolMaster LMA-9 0-10V to Digital Lighting Adapter for ThinkGrow LEDs

Description

The TrolMaster LMA-9 lets a third-party controller with 0–10 VDC dimming outputs run ThinkGrow LEDs. It takes two separate 0–10 V channels, so the supplemental red diodes can be dimmed independently of the full-spectrum diodes, and converts them to the digital signal ThinkGrow fixtures use.

  • Two 0–10 V input channels: full spectrum and supplemental red
  • Twin cables with 2 + 2 hardwired terminals for the controller
  • Single RJ12 port connects to the string of ThinkGrow LEDs
  • LED indicator; plug and play
  • Input: 0–10 V, 60 mA
  • Working environment: 32–122°F, up to 90% RH

In the box: LMA-9 adapter, ECS-9 12 ft RJ12 to 4-pin IP65 cable, power and signal connection cables.

TrolMaster LMA-9 0-10V to Digital Lighting Adapter for ThinkGrow LEDs

Product form

The TrolMaster LMA-9 lets a third-party controller with 0–10 VDC dimming outputs run ThinkGrow LEDs. It takes two separate 0–10... Read more

In stock

In stock · ships from one of our warehouses

Not on our Webster shelf right now. We can ship it to your door, or to our Webster store for you to pick up.

Why?

Our Webster store stocks over 10,000 products. The rest of our catalog ships from our warehouses around the country, so you can get it without waiting on a restock.

$90.00  $85.50

    • Guaranteed secure & safe checkout.

      shop pay
    • 30-day returns on unopened items

    Description

    The TrolMaster LMA-9 lets a third-party controller with 0–10 VDC dimming outputs run ThinkGrow LEDs. It takes two separate 0–10 V channels, so the supplemental red diodes can be dimmed independently of the full-spectrum diodes, and converts them to the digital signal ThinkGrow fixtures use.

    • Two 0–10 V input channels: full spectrum and supplemental red
    • Twin cables with 2 + 2 hardwired terminals for the controller
    • Single RJ12 port connects to the string of ThinkGrow LEDs
    • LED indicator; plug and play
    • Input: 0–10 V, 60 mA
    • Working environment: 32–122°F, up to 90% RH

    In the box: LMA-9 adapter, ECS-9 12 ft RJ12 to 4-pin IP65 cable, power and signal connection cables.
