Description

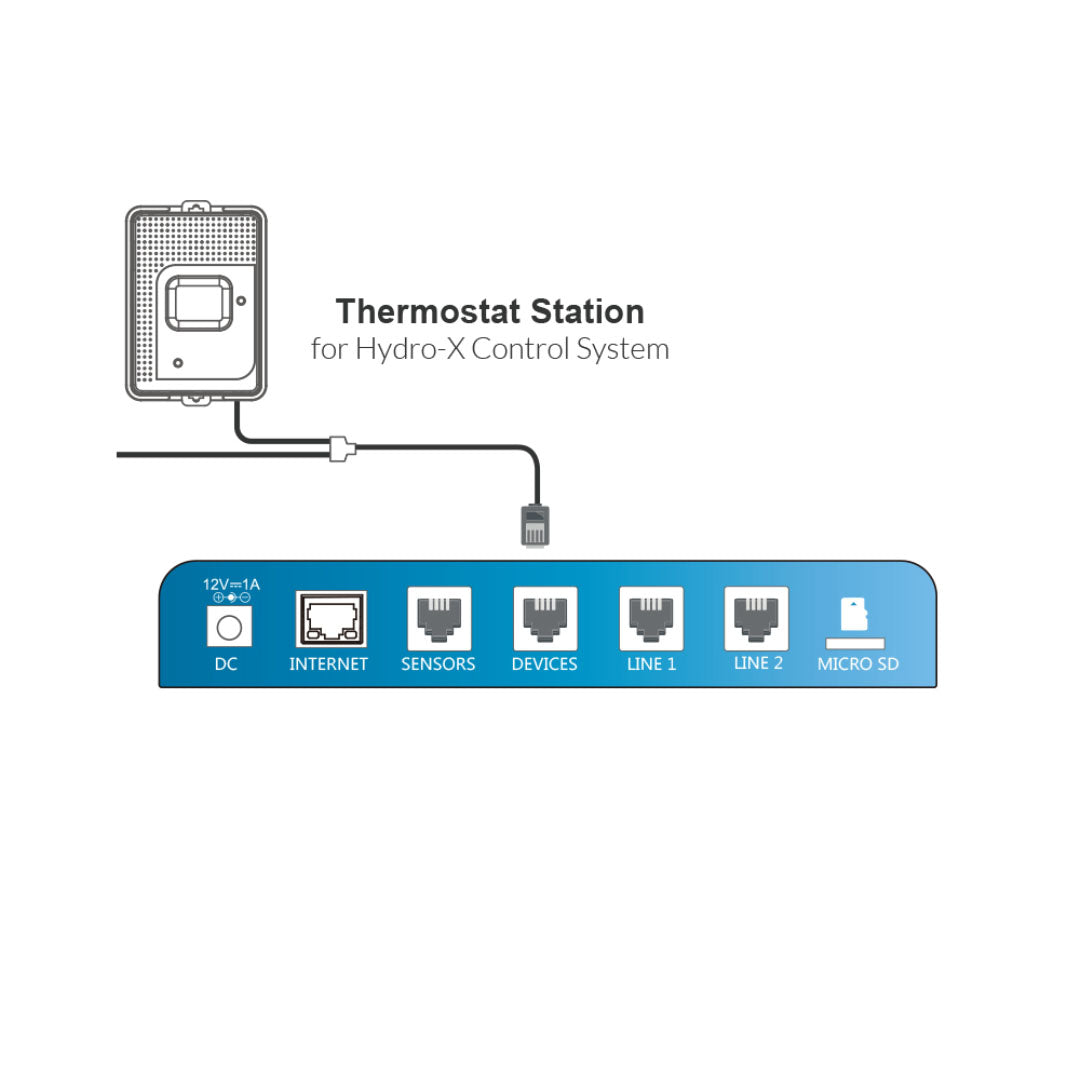

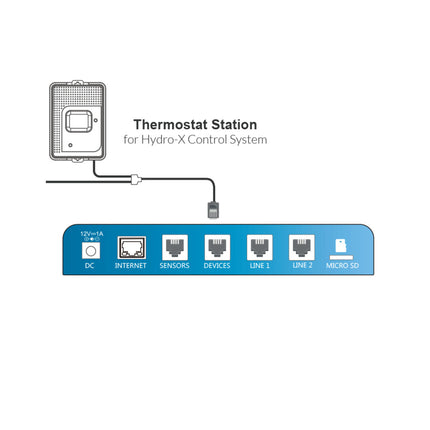

The TrolMaster TS-1 takes the place of the thermostat on a conventional cool-only commercial AC unit so your Hydro-X runs it. It wires in with the same low-voltage thermostat cable and standard color-coded terminals, and the Hydro-X gives it separate day and night setpoints. One Hydro-X can run up to four TS stations, so several AC units can work off one controller.
- For conventional cool-only HVAC and commercial AC units

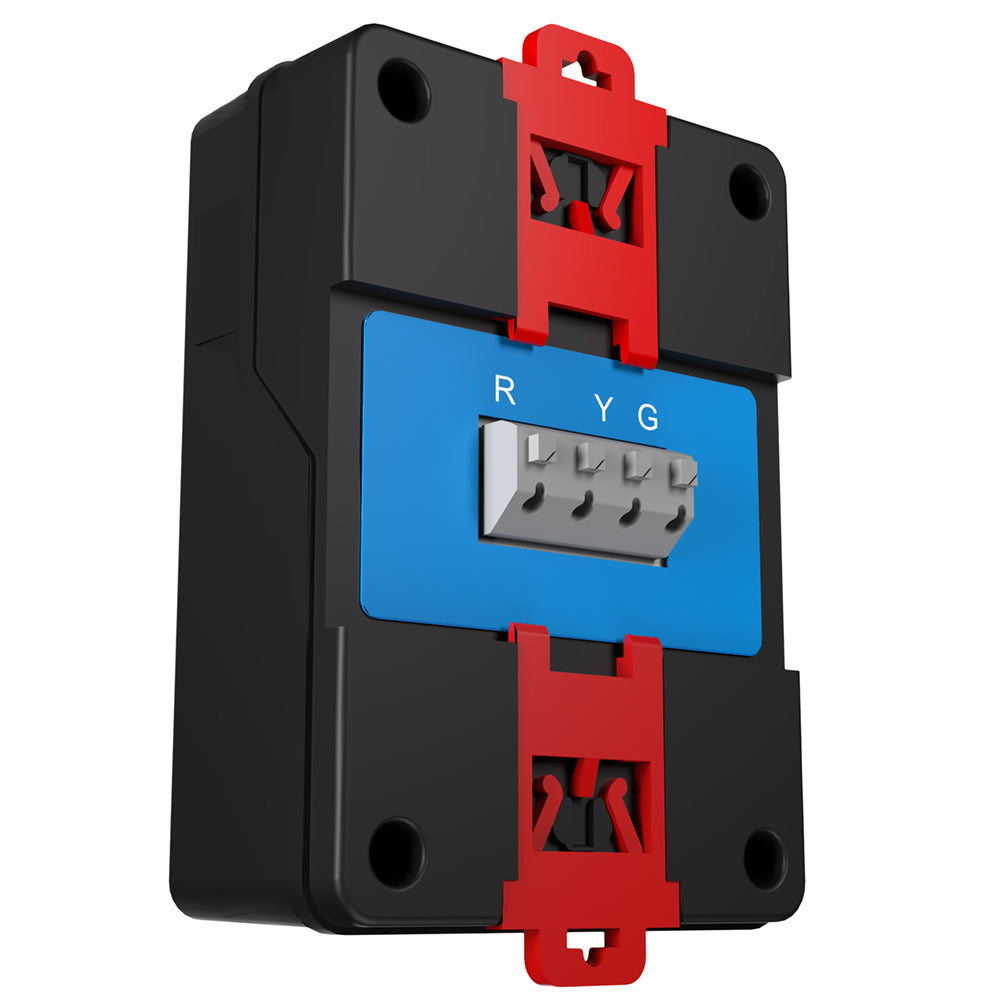

- Uses standard low-voltage thermostat wiring
- Separate day and night settings; up to 4 TS stations per Hydro-X

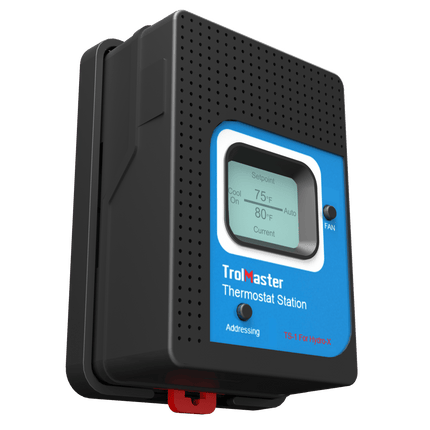

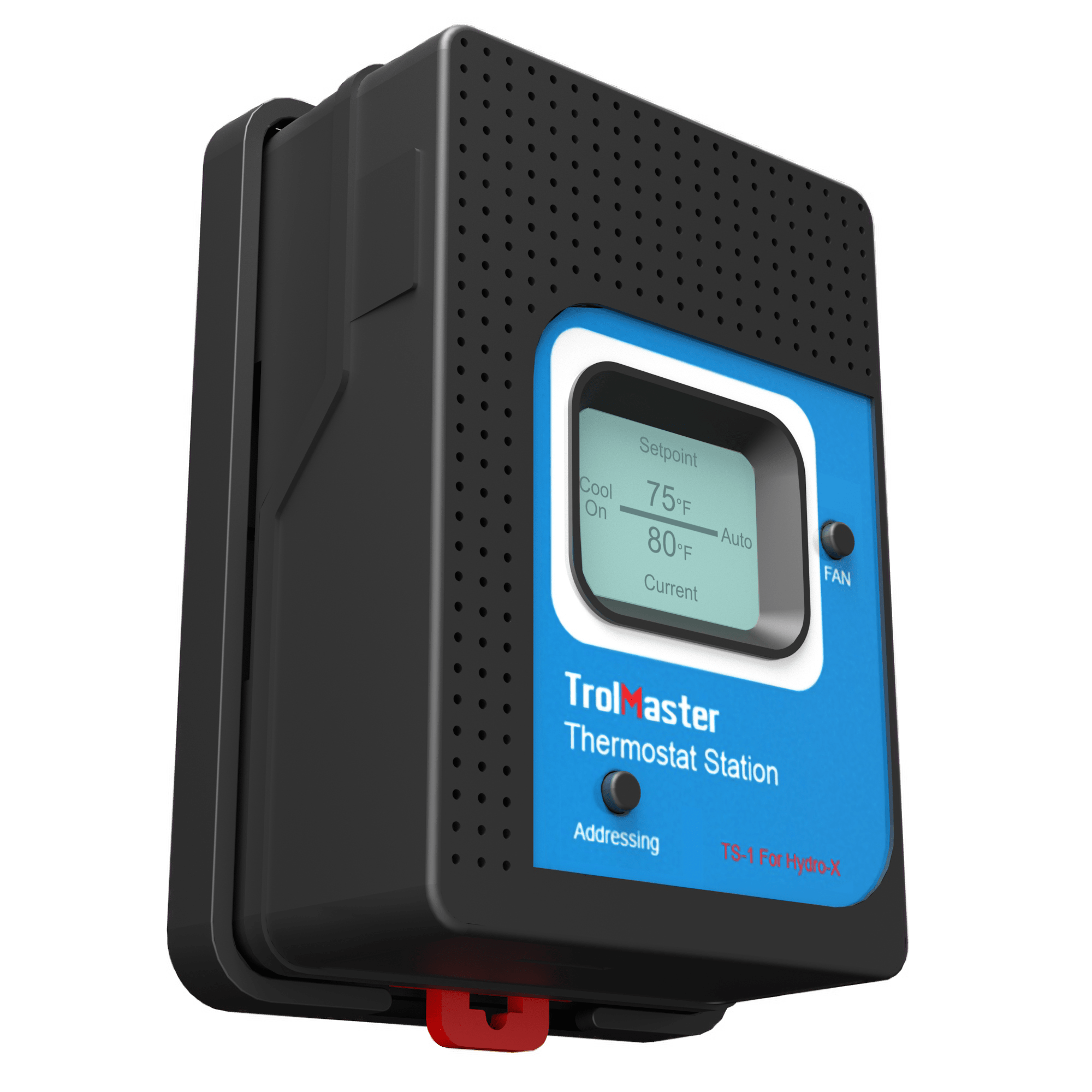

- LCD display, address assignment, plug and play
- Micro-SD slot for firmware updates (32 GB or smaller card)
- Output: 24 V, 1 A max
- Working environment: 32–122°F, up to 90% RH
In the box: TS-1 thermostat station, 16 ft and 4 ft RJ12 cables, RJ12 T-splitter.
