Description

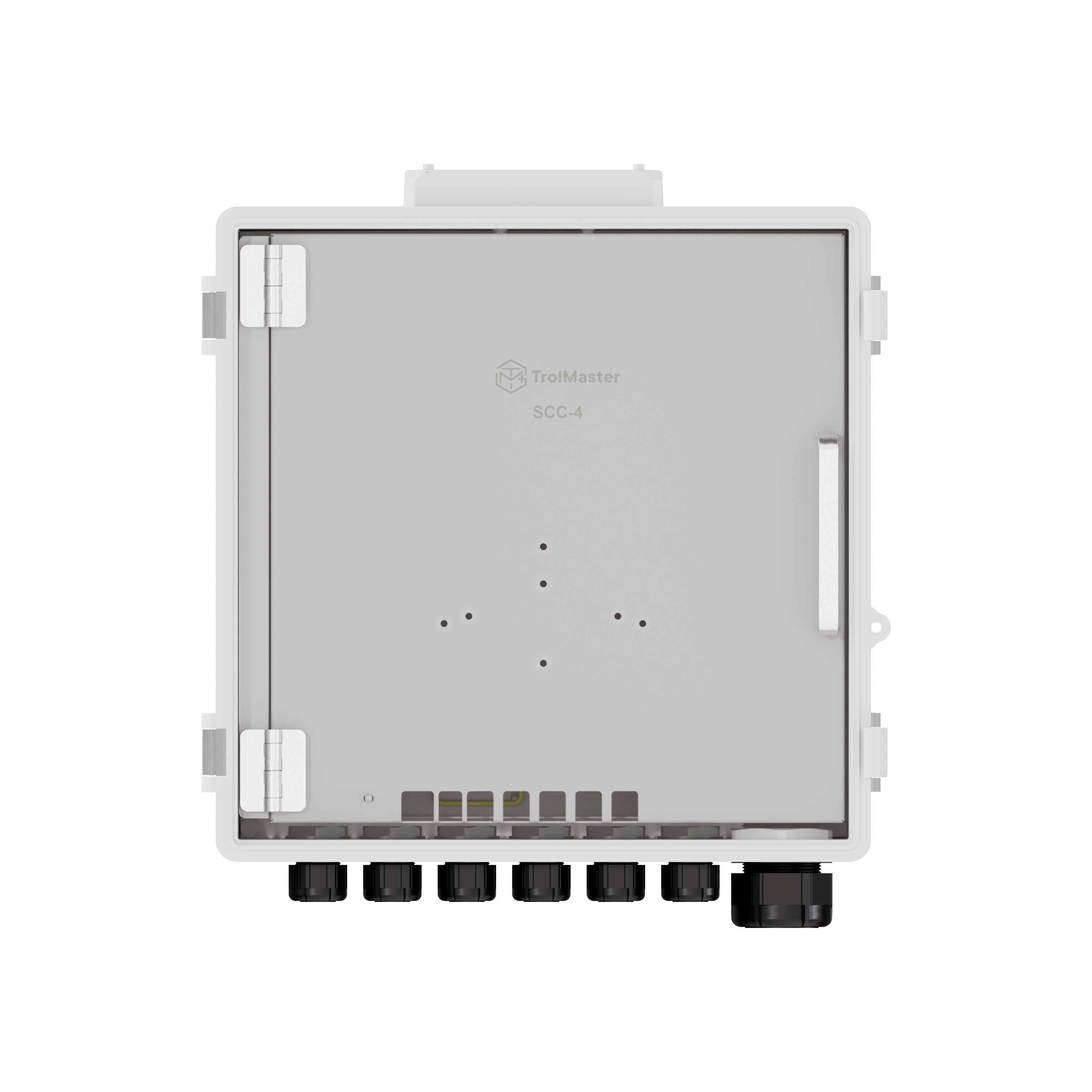

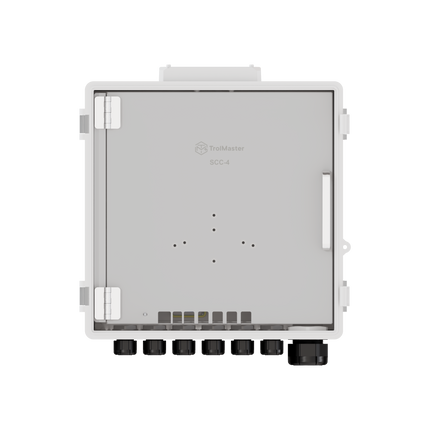

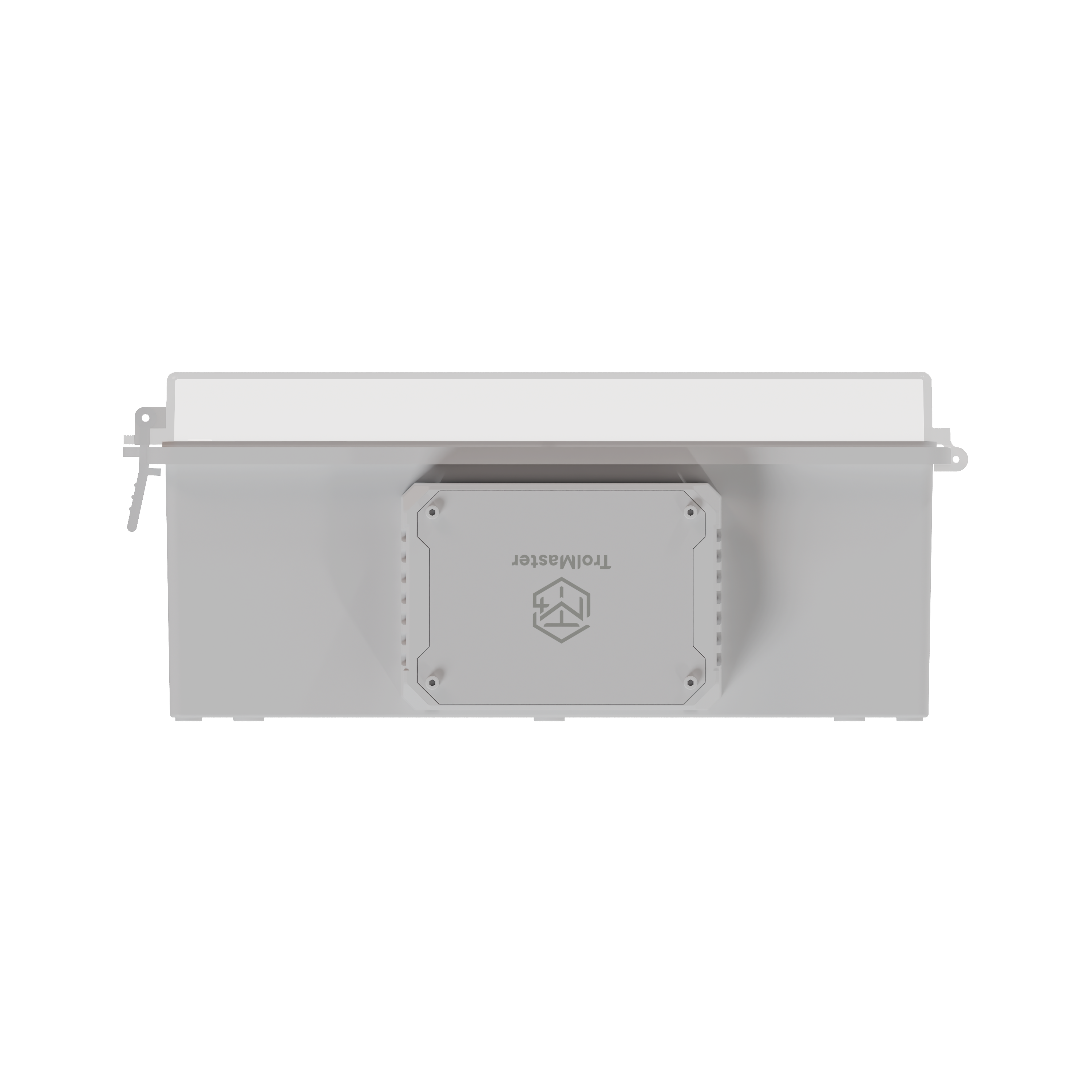

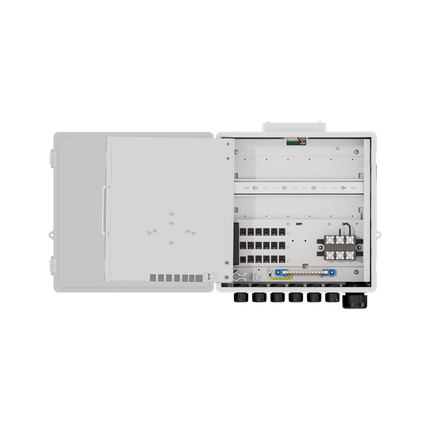

The TrolMaster SCC-4 is a compact cabinet that houses a TrolMaster main controller and up to six DSR-1 25 A relay stations in one protected enclosure. Built-in RJ12 splitter boards and mounting plates keep the wiring and modules organized, clean and dry, and an intelligent fan handles cabinet cooling.
- Holds a Green-X (GCS-1), Hydro-X (HCS-1), Aqua-X (NFS-1), Carbon-X (CDA-1) or Tent-X (TCS-1) controller
- Room for up to 6 DSR-1 relay device stations (sold separately)

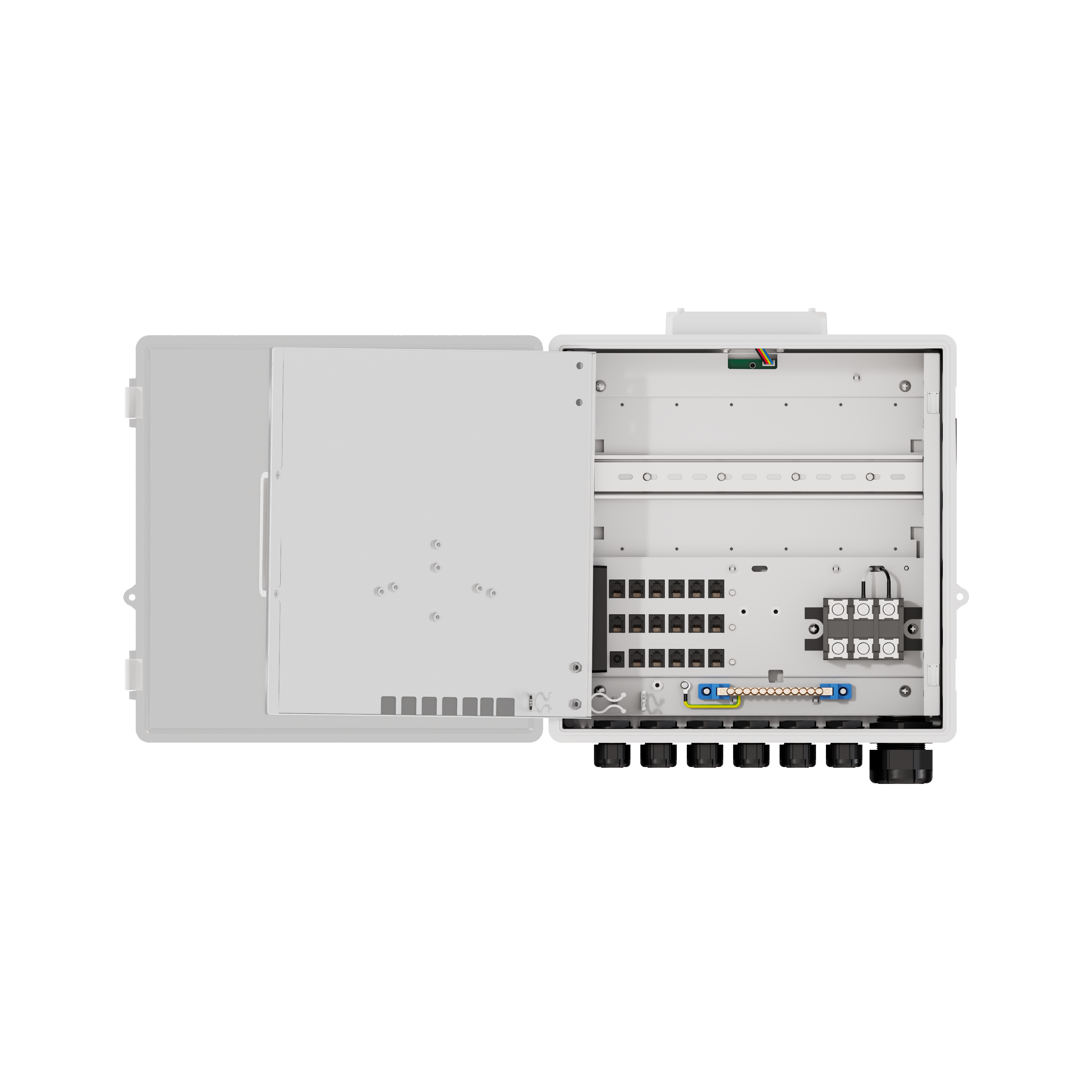

- Built-in RJ12 splitter boards: 6 + 6 + 5 ports
- Input: 100–277 V, 50/60 Hz; 60 A max output current
- IP53 rated; intelligent fan speed control
- Expandable, customizable layout with clean cable management
- Working environment: 32–104°F, up to 90% RH
In the box: SCC-4 cabinet, GCS-1 power cable, HCS-1/NFS-1/CDA-1/TCS-1 power cable, 3 mounting back plates, three 1.6 ft RJ12 cables.
