Description

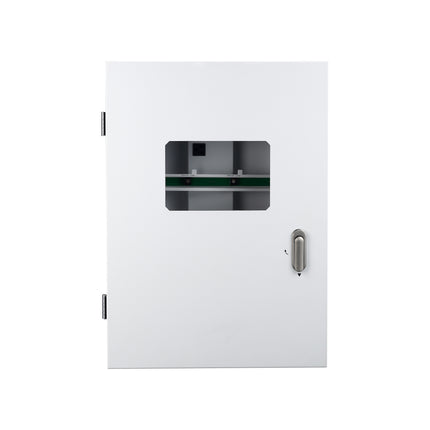

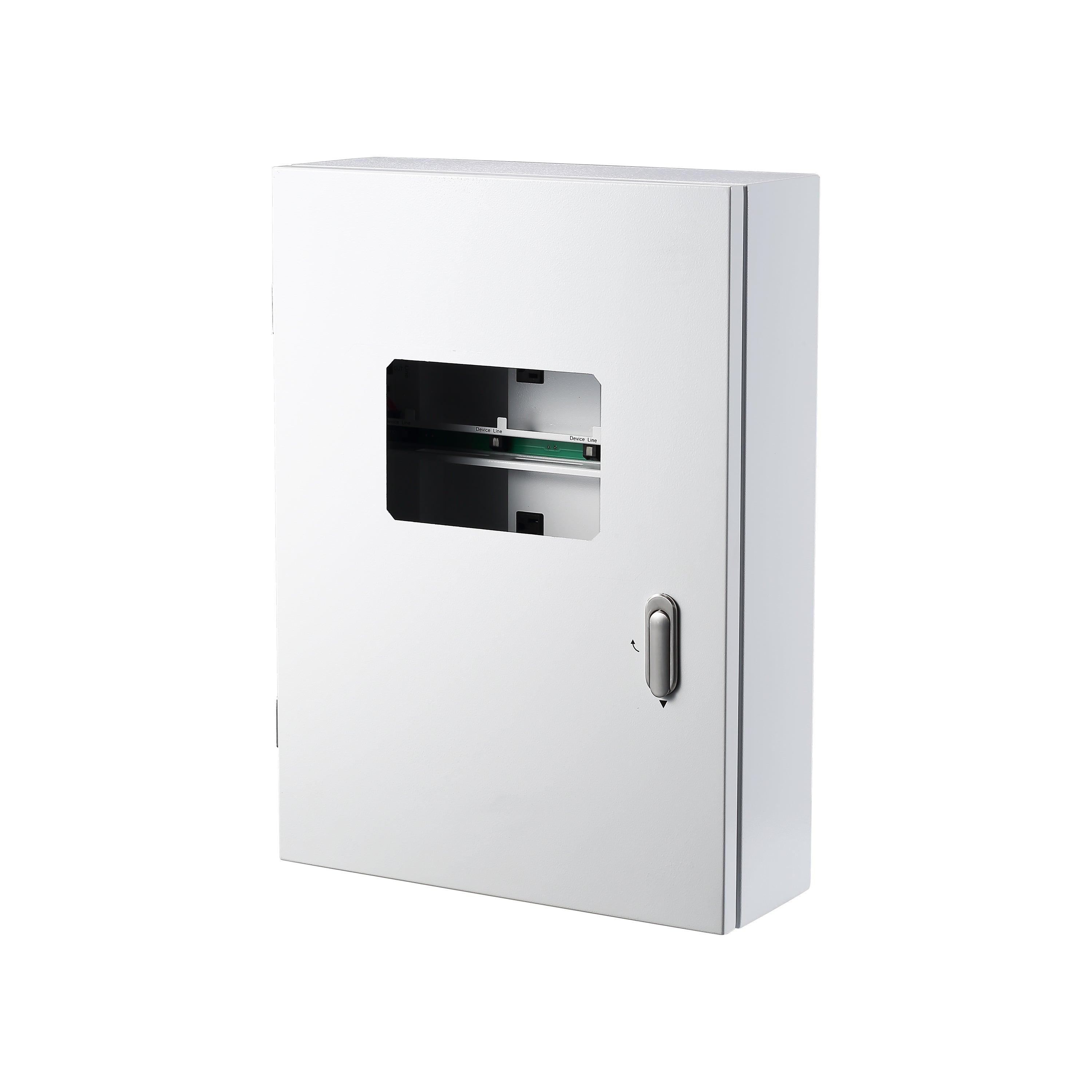

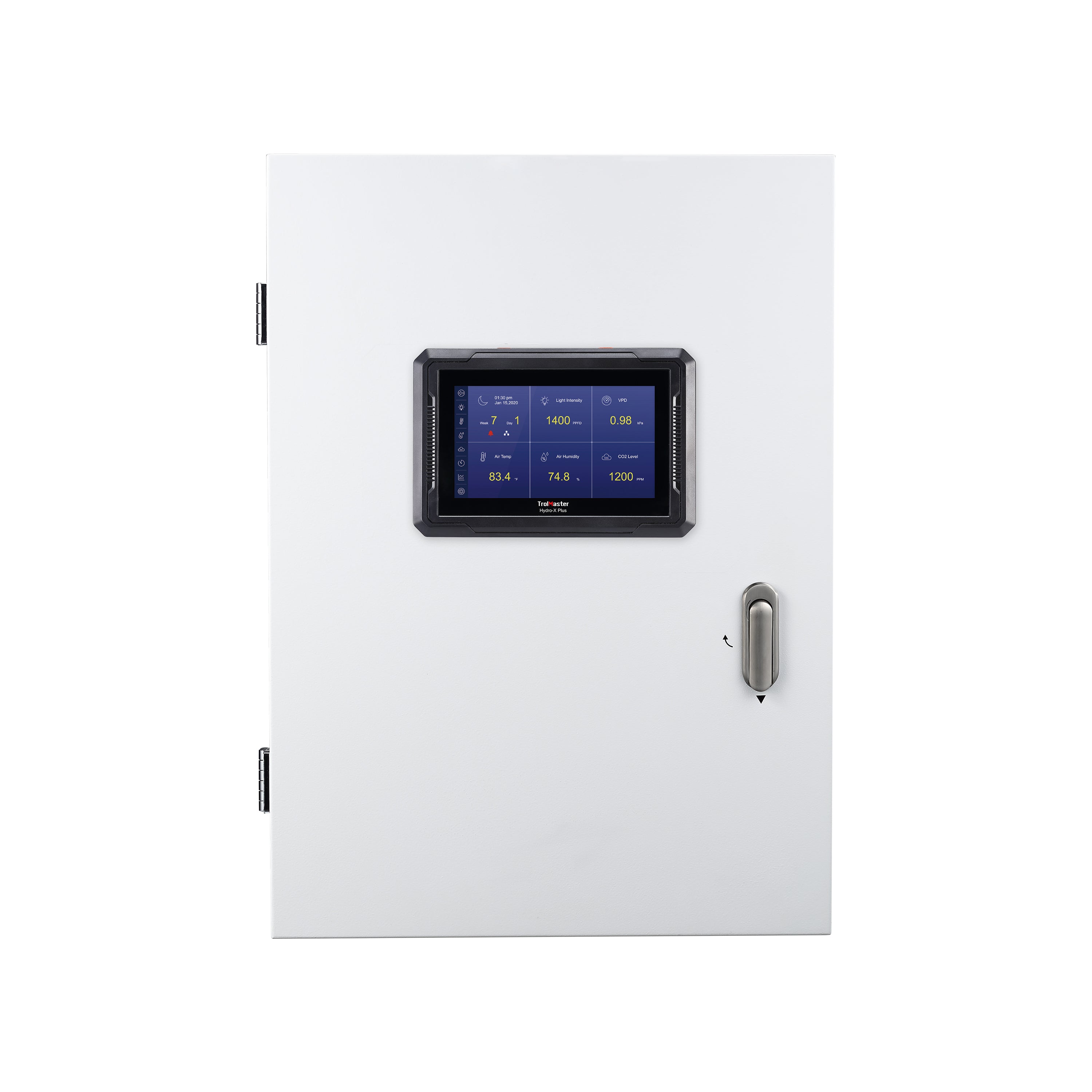

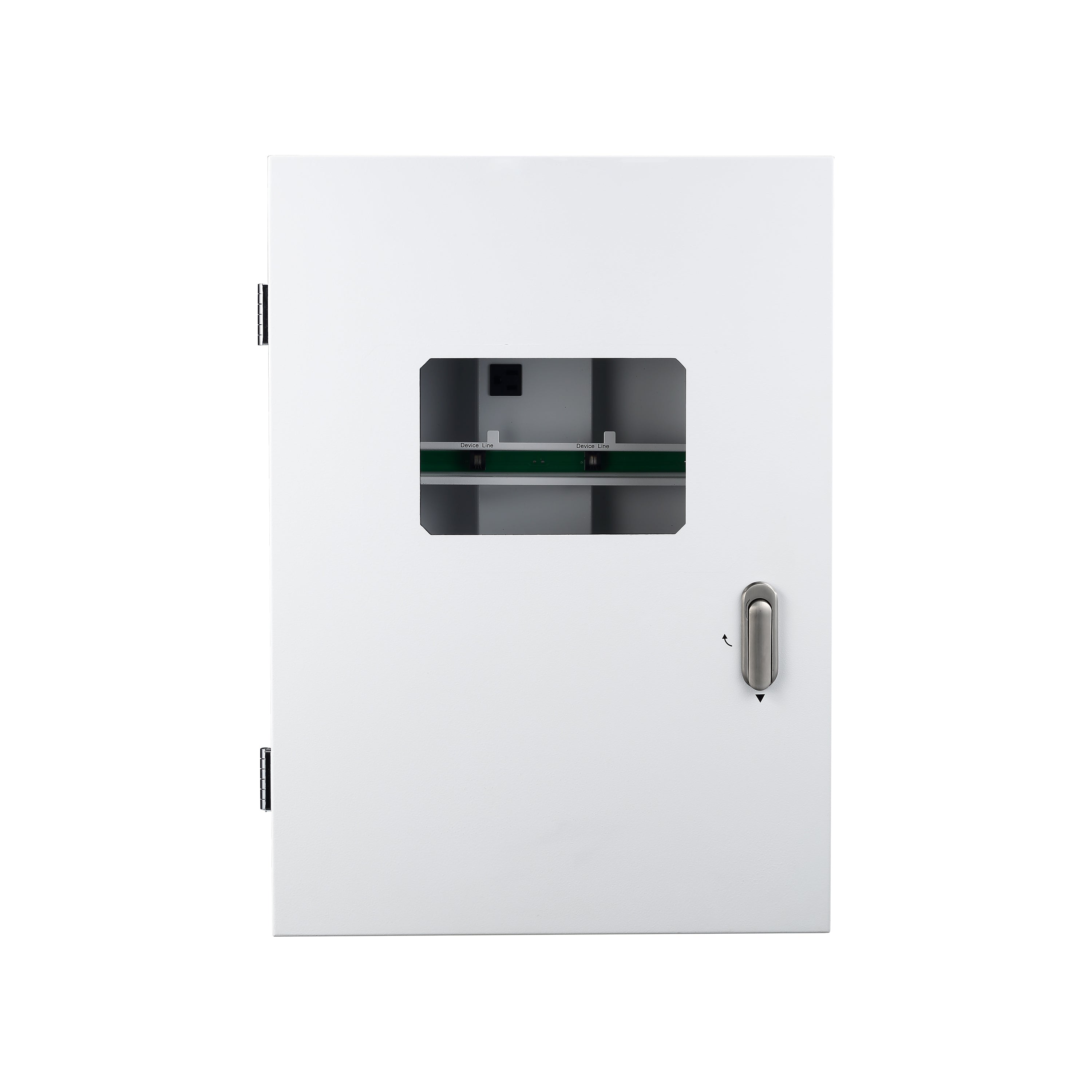

The TrolMaster SCC-3 is a 25-inch modular controller cabinet for the Hydro-X Plus and Aqua-X Plus. The controller mounts in the door and the device stations, power supplies and boards mount inside, with built-in RJ12 splitter boards and outlets that keep the whole system wired clean, organized and dry.
- For Hydro-X Plus (HCS-3) and Aqua-X Plus (NFS-3) controllers
- Size: 25" x 18" x 6.26"
- IP56 enclosure rating (NEMA 4X equivalent) with the included controller gasket fitted
- Input: 120 V, 50/60 Hz, 15 A max

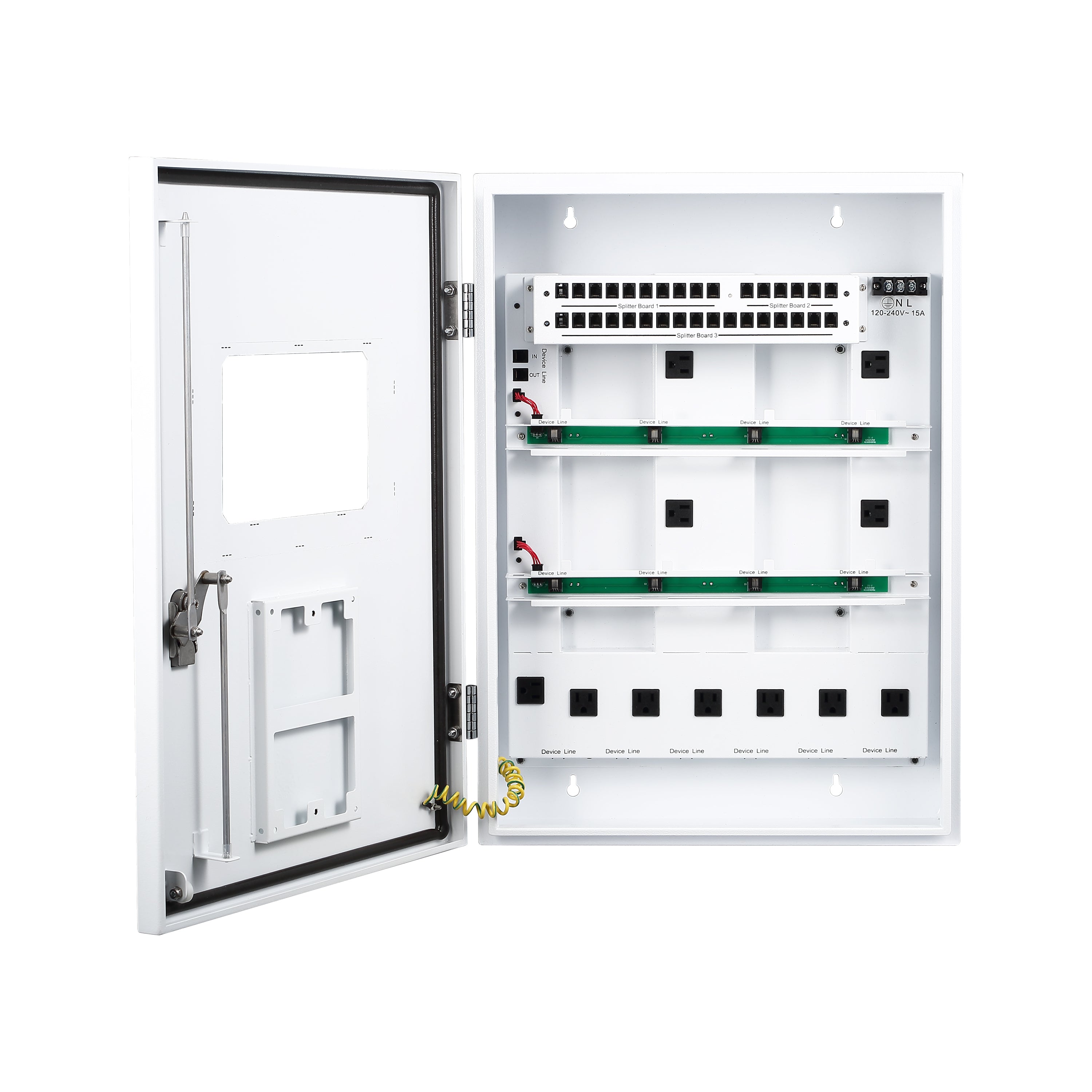

- Built-in RJ12 splitter boards and power outlets for device stations and boards
- Holds up to 8 TS/HS/TSH/VPD modules
- Detachable design; lay out your own cabinet with bi-directional RJ12 cables
- Working environment: 32–104°F, up to 90% RH

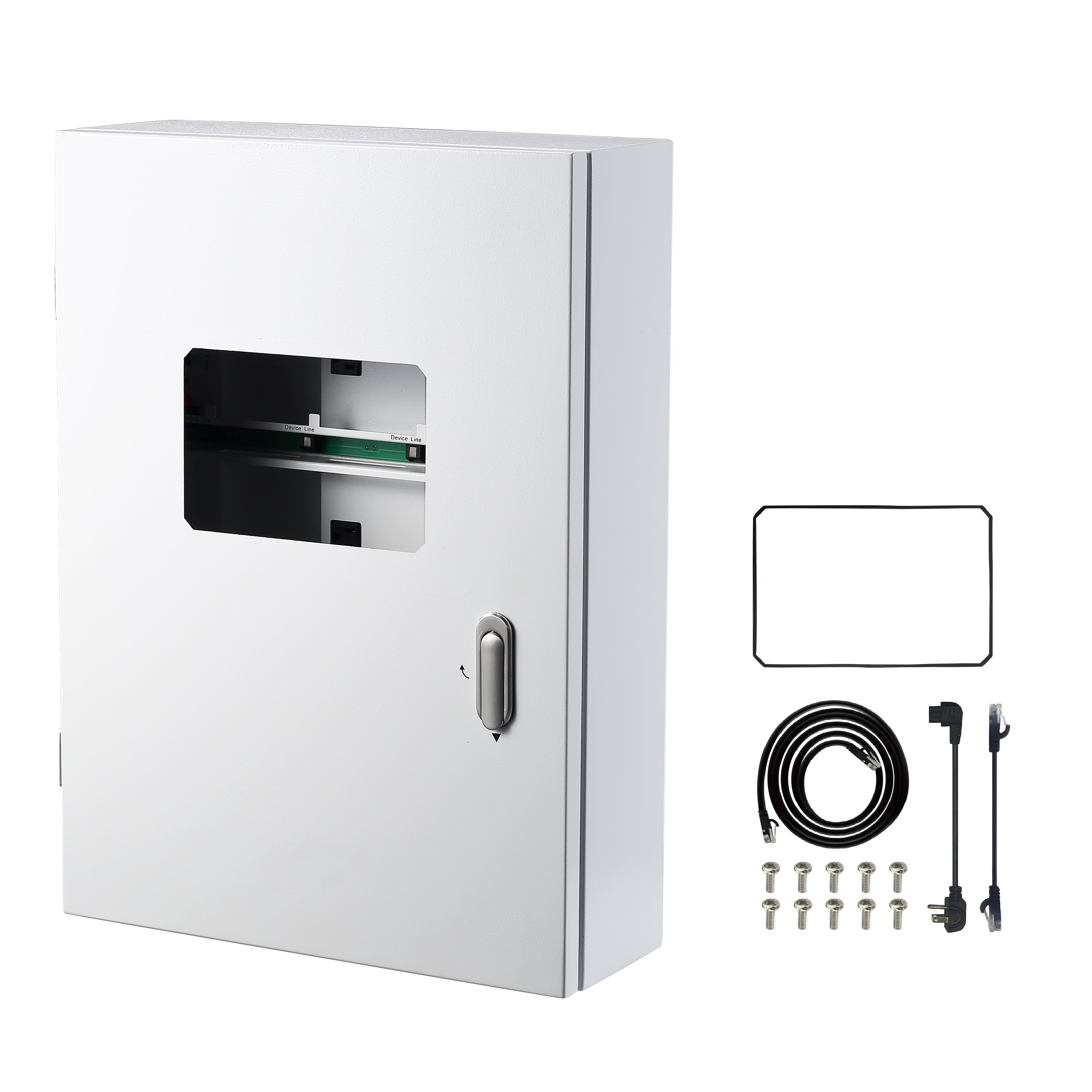

In the box: SCC-3 cabinet, controller rubber gasket, RJ12 cables, OA6 board power cables and screw sets, installation manual.
