Description

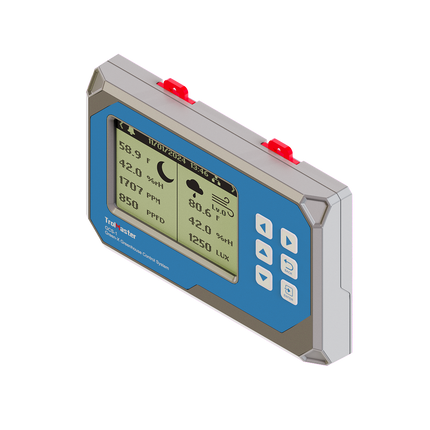

The TrolMaster Green-X GCS-1 is a modular greenhouse controller that runs climate, CO2, lighting, irrigation, ventilation and curtain or roll-up motors from one unit and the free TrolMaster app. It comes with the MBS-GH 4-in-1 sensor, and you add device stations, sensors and motor controllers as the greenhouse grows.
- All-in-one greenhouse control: lights, climate, CO2, irrigation, curtain motors and ventilation
- Up to 4 temperature, 4 humidity, 2 CO2 and 2 timer device stations
- Up to 96 scheduled irrigation outputs (24 V or 110 V)
- 2 lighting channels, each up to 256 fixtures (depending on brand)
- Runs DMC-1/AMC-1 curtain and roll-up motor controllers and EFC-1 EC fan adapters
- Sensor inputs include the MBS-WS weather station, MBS-PAR, MBS-SD, AMP-3, DFM flow meters, WD-1 and up to 8 WCS substrate sensors
- Climate, irrigation and crop history logging in the free TrolMaster app
- 256 x 160 LCD · Input: 100–240 VAC, 50/60 Hz; 3 A output
- Working environment: 32–122°F
In the box: GCS-1 controller, MBS-GH 4-in-1 sensor, RJ12 cable set for lights, 12 V power adapter, RJ12 T-splitter.
