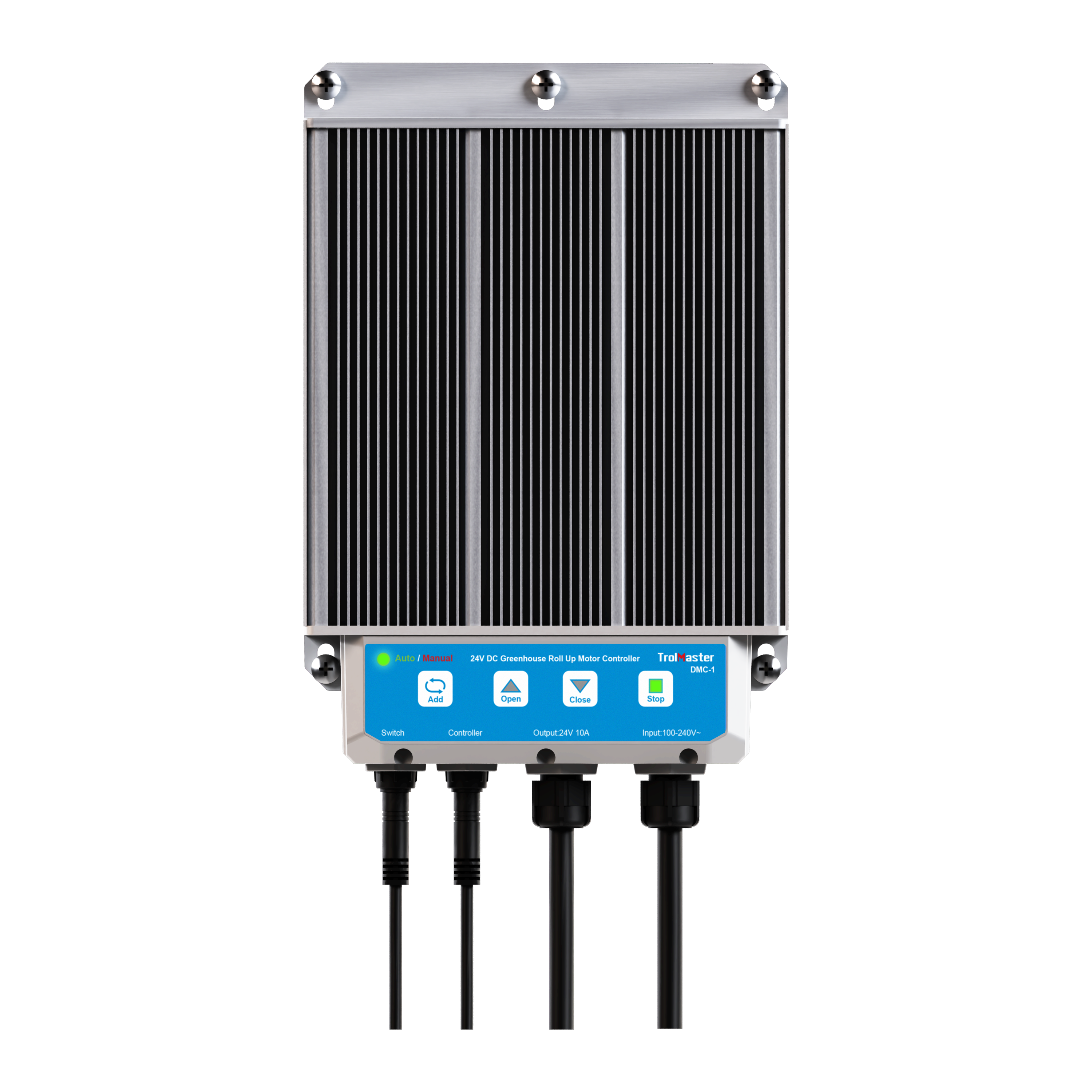

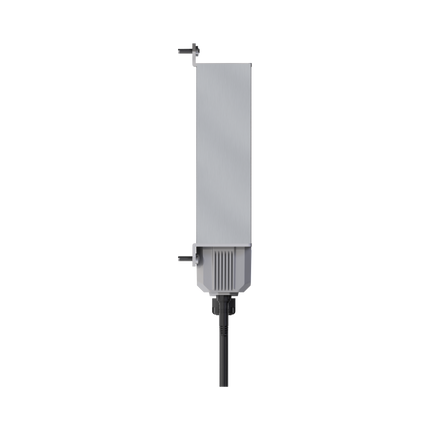

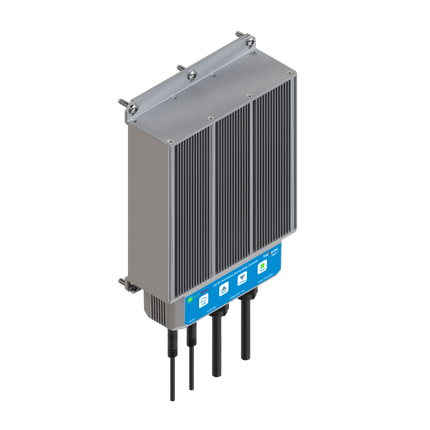

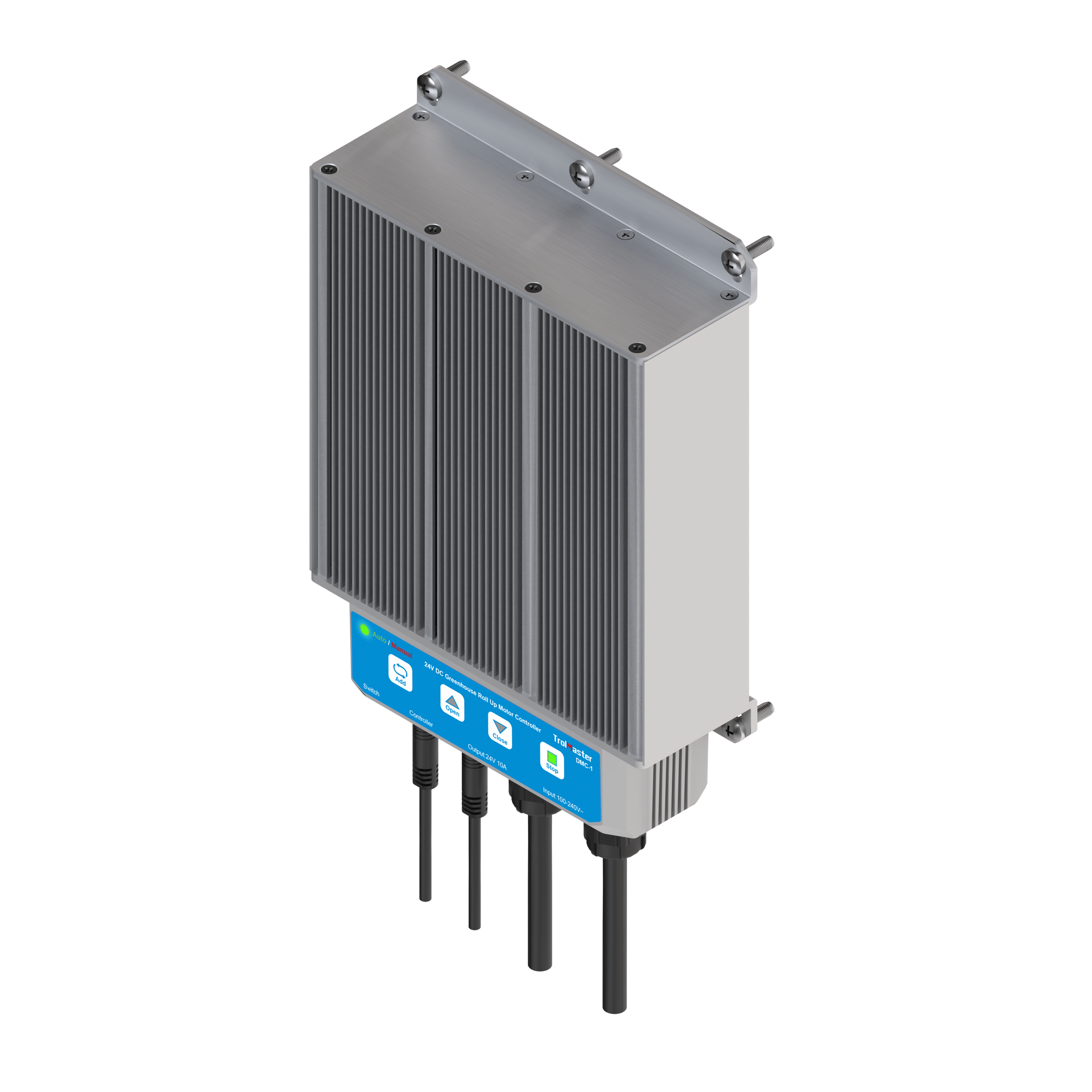

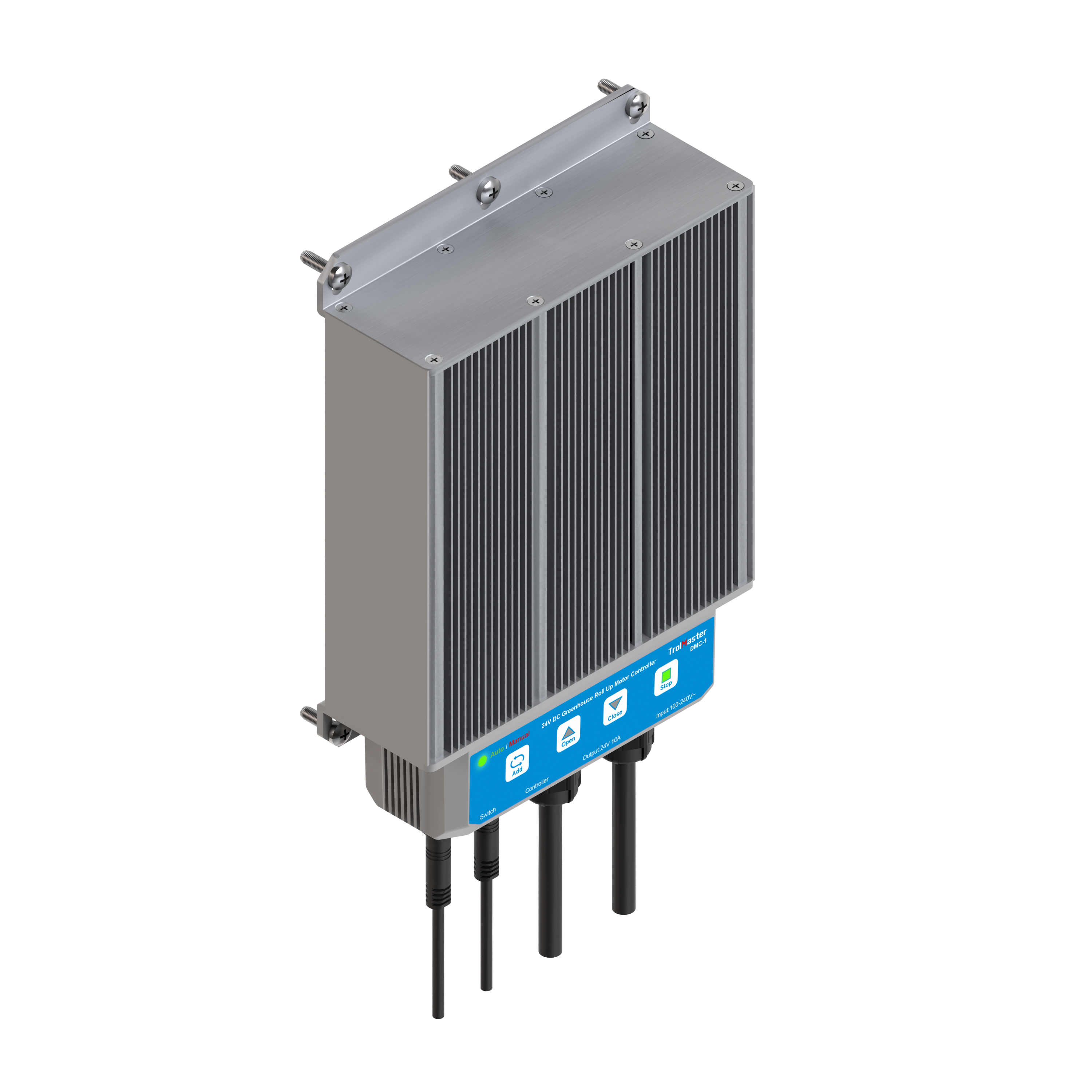

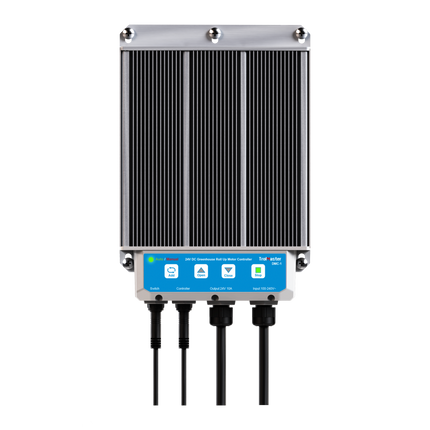

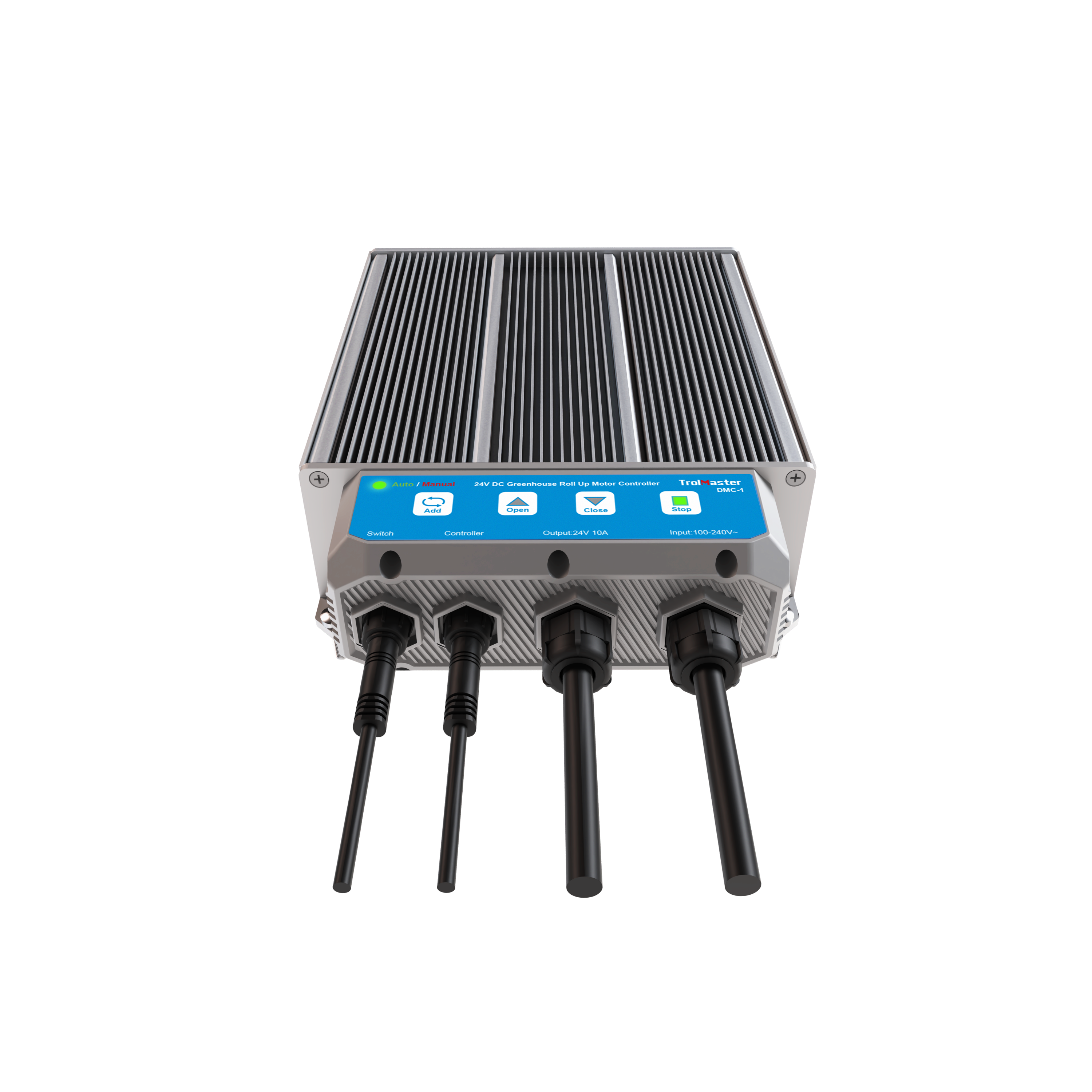

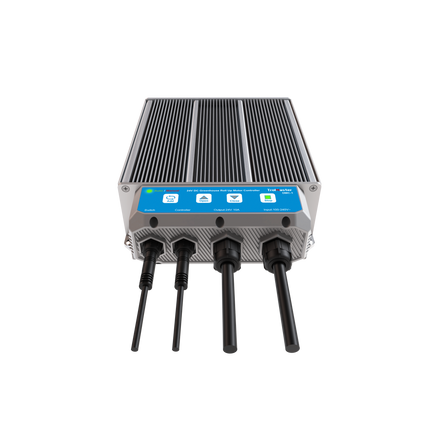

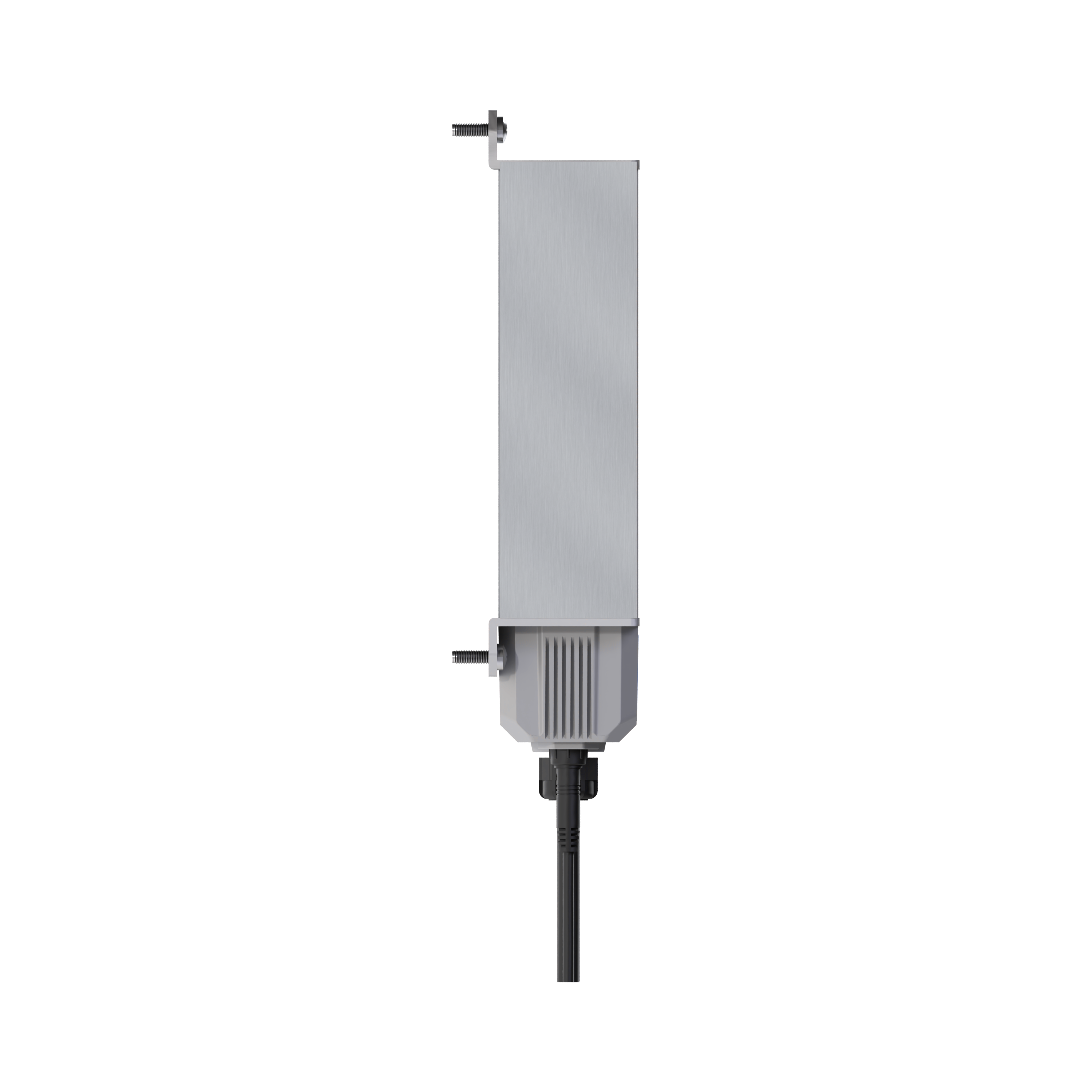

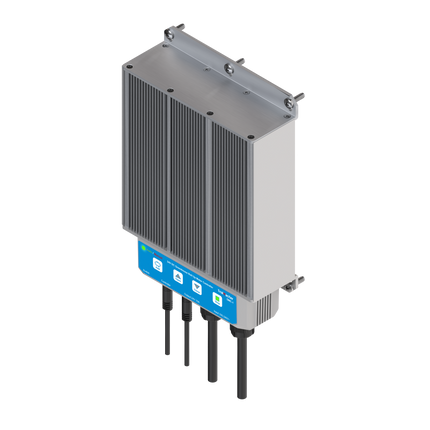

TrolMaster DMC-1 24V DC Roll-Up Motor Controller for Green-X

Description

The TrolMaster DMC-1 drives 24 V DC roll-up curtain motors on a greenhouse. Run it by hand or let the Green-X GCS-1 controller automate it, with forward, reverse and stop control plus timeout shut-off and overcurrent protection.

  • For 24 V DC greenhouse roll-up motors
  • Forward, reverse and stop; timeout shut-off; overcurrent protection
  • Manual or automated control through the Green-X GCS-1
  • Connects to the GCS-1 over RS-485 (4-pin waterproof connector)
  • Input: 100–240 VAC, 50/60 Hz · 10 A max motor output
  • Output wiring: 16 AWG or heavier
  • IP44 · under 2 W no-load draw (at 240 V)
  • Working environment: 32–104°F, up to 90% RH

In the box: DMC-1 controller, power cable, 12 ft RJ12 to 4-pin IP65 cable, screwdriver.

TrolMaster DMC-1 24V DC Roll-Up Motor Controller for Green-X

Product form

The TrolMaster DMC-1 drives 24 V DC roll-up curtain motors on a greenhouse. Run it by hand or let the... Read more

In stock

In stock · ships from one of our warehouses

Not on our Webster shelf right now. We can ship it to your door, or to our Webster store for you to pick up.

Why?

Our Webster store stocks over 10,000 products. The rest of our catalog ships from our warehouses around the country, so you can get it without waiting on a restock.

$419.00  $398.05

    • Guaranteed secure & safe checkout.

      shop pay
    • 30-day returns on unopened items

    Description

    The TrolMaster DMC-1 drives 24 V DC roll-up curtain motors on a greenhouse. Run it by hand or let the Green-X GCS-1 controller automate it, with forward, reverse and stop control plus timeout shut-off and overcurrent protection.

    • For 24 V DC greenhouse roll-up motors
    • Forward, reverse and stop; timeout shut-off; overcurrent protection
    • Manual or automated control through the Green-X GCS-1
    • Connects to the GCS-1 over RS-485 (4-pin waterproof connector)
    • Input: 100–240 VAC, 50/60 Hz · 10 A max motor output
    • Output wiring: 16 AWG or heavier
    • IP44 · under 2 W no-load draw (at 240 V)
    • Working environment: 32–104°F, up to 90% RH

    In the box: DMC-1 controller, power cable, 12 ft RJ12 to 4-pin IP65 cable, screwdriver.
