Description

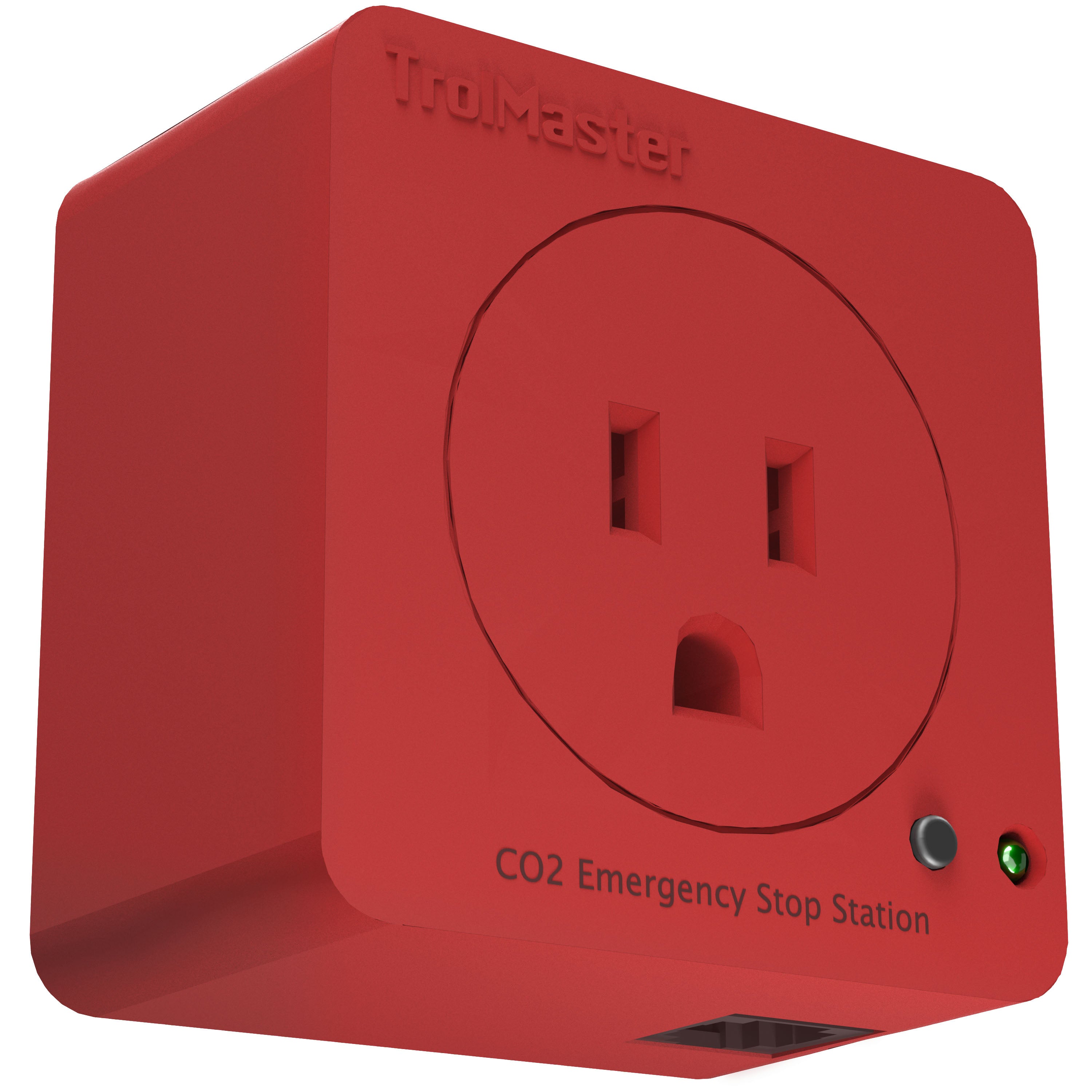

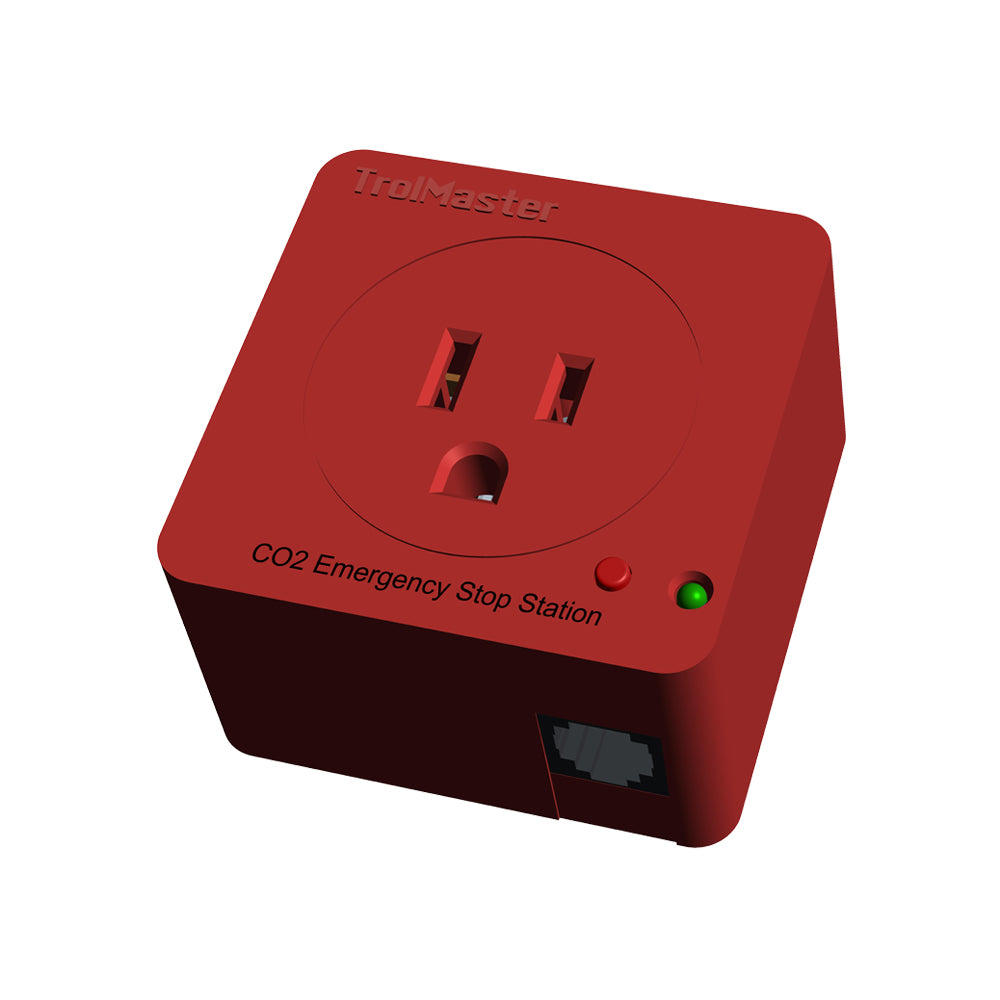

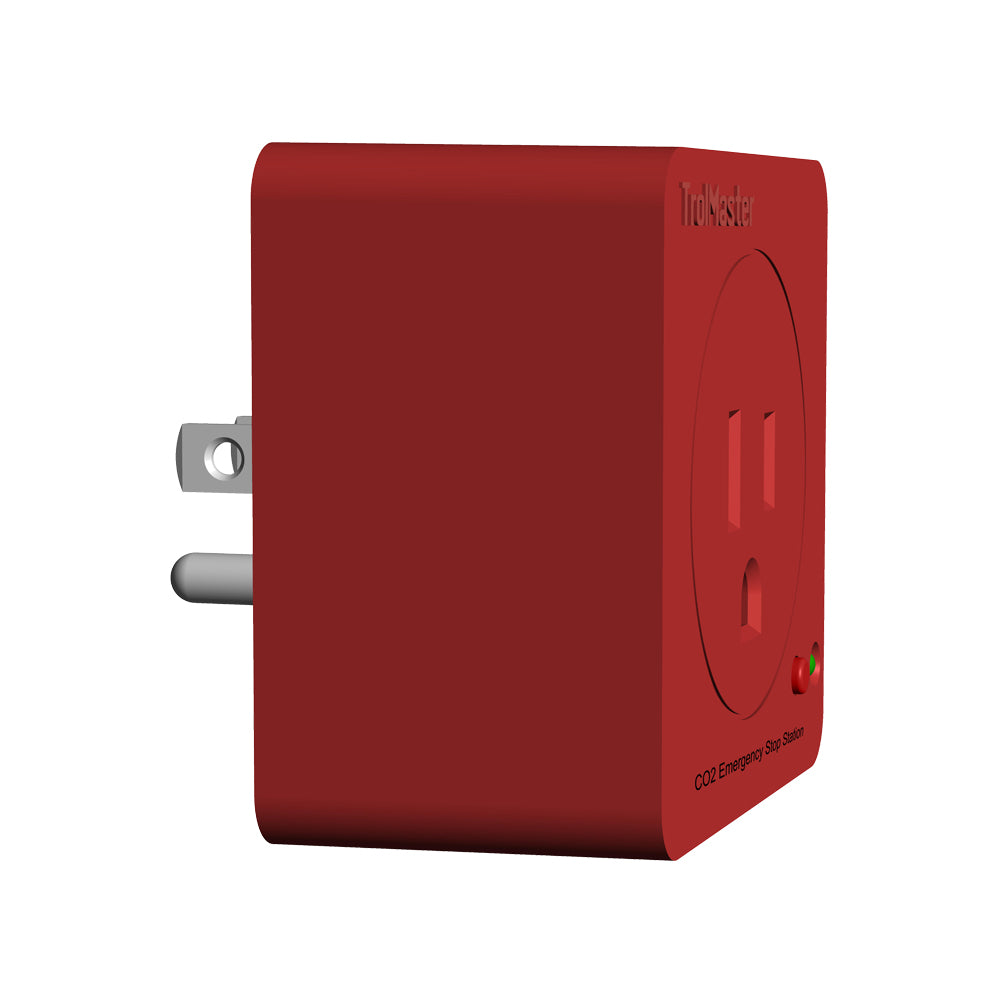

The TrolMaster DSE-1 is the CO2 emergency shut-off for the Carbon-X system. It's a controlled outlet that powers your CO2 solenoid valves during normal operation, and the Carbon-X cuts its power automatically if any installed CO2 sensor reports a fault or a high CO2 level. If the DSE-1 loses communication with the controller, its power shuts off too.
- Controlled outlet for CO2 solenoid valves
- Power cut automatically on a sensor fault, high CO2 or lost communication
- Input and output: 100–240 VAC, 50/60 Hz · 10 A max output
- LED status: fast green blink (not yet addressed or poor connection), slow green blink (connected, off), solid green (on), red blink (overloaded)
- RJ12 socket with push-button addressing; plug and play
- Working environment: 32–122°F, up to 90% RH

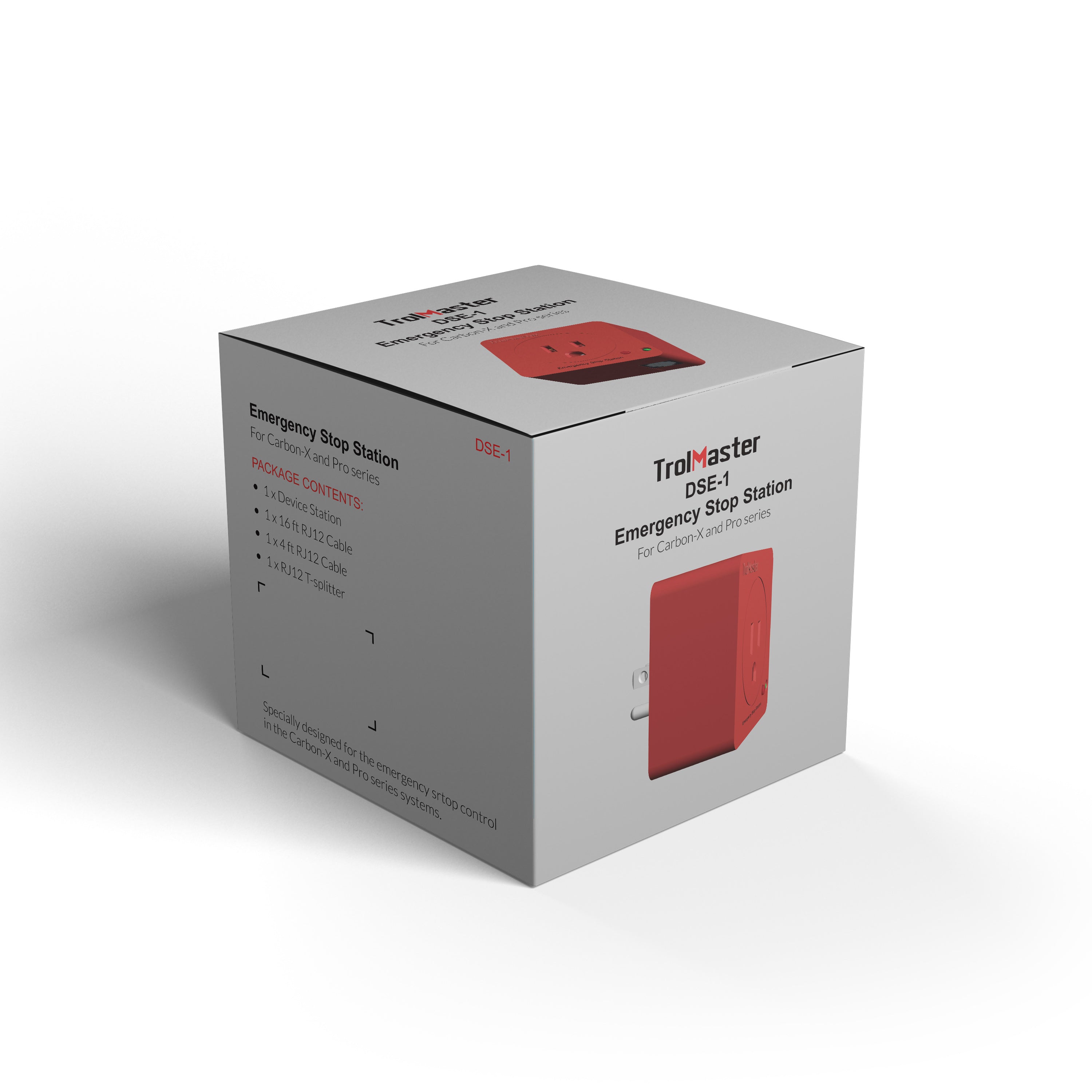

In the box: DSE-1 station, 16 ft and 4 ft RJ12 cables, RJ12 T-splitter.
