Description

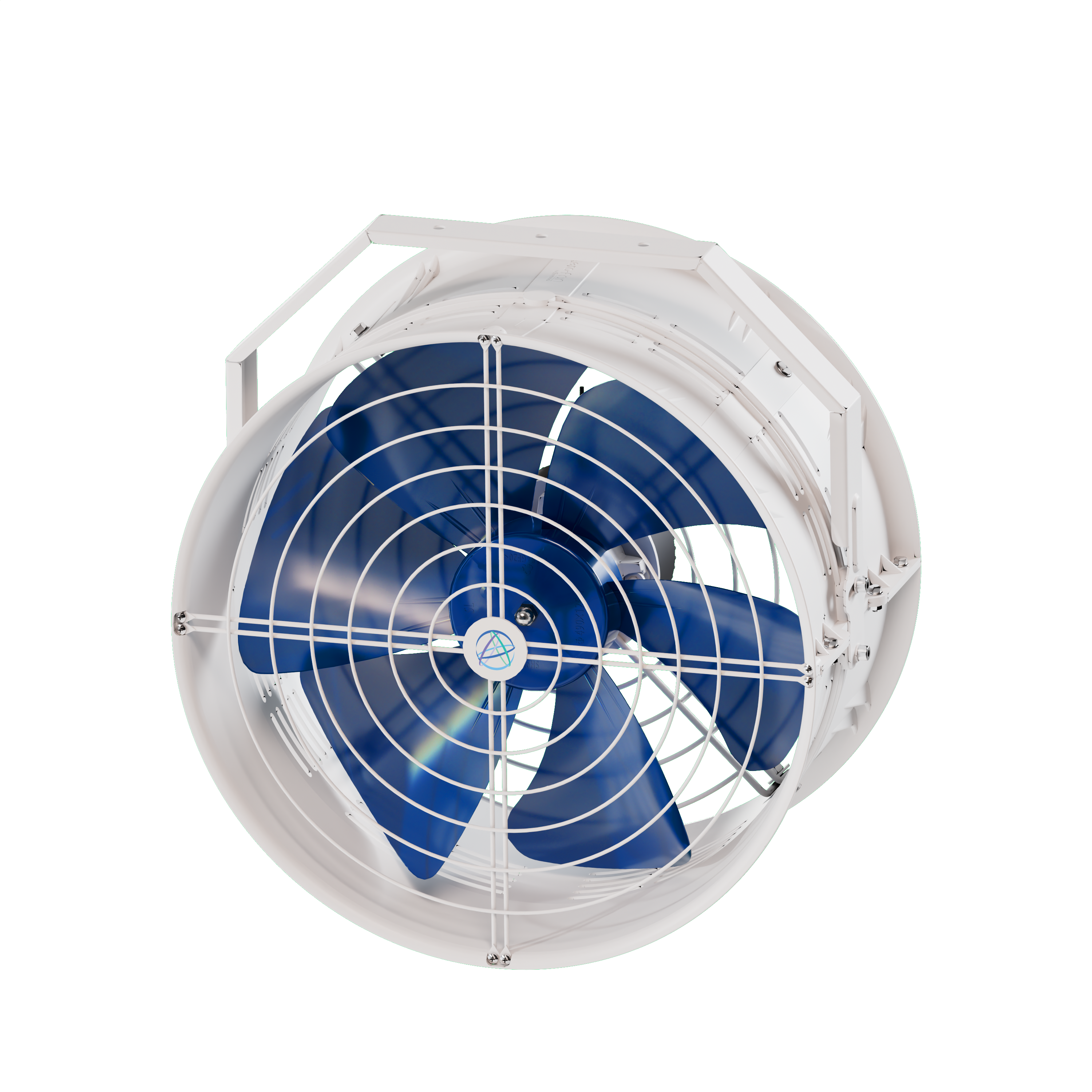

The TrolMaster Aero-Fan HE-20 is a 20-inch high-velocity drum fan for moving a lot of air across big grow rooms and greenhouses. Its speed is set by digital signal from a TrolMaster controller or an FRC-1/FRC-2 fan remote, so it runs without a separate VFD.
- Max airflow: 3,624 CFM · Max static pressure: 110 Pa
- Input: 100–277 VAC, 50/60 Hz · 300 W max, 3.0 A max
- Speed control from TrolMaster Hydro-X Pro, Hydro-X Plus or Tent-X controllers, or the FRC-1/FRC-2 remotes (sold separately); no VFD needed
- Link up to 50 fans with ECS-7 cables
- 6 blades · IP66 · 40,000-hour MTBF
- Operating temperature: -13–140°F
- Size: 12.2" x 22.05" x 23.39"
- Conforms to UL 507; certified to CSA C22.2 No. 60335 · 3-year Aero-Fan warranty
- TrolMaster calls for mounting at least 7 ft above the floor with suitable hardware
In the box: HE-20 fan, ECS-7 cable set, ECS-9 cable set.
