Description

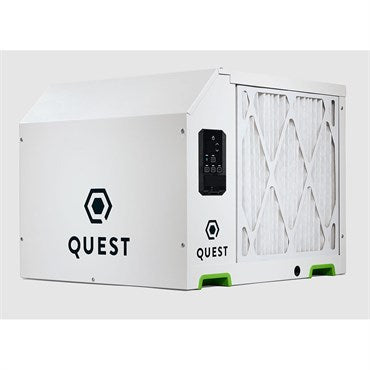

The Quest 506 277V Overhead Dehumidifier is a high-capacity, high efficiency unit designed for demanding commercial and industrial applications. Featuring patented M-CoRR™ Technology, this dehumidifier recycles excess heat to achieve the highest efficiencies available, while reducing heat output (BTUs) into the space. With a 506-pint capacity, it ranks among the most powerful dehumidifiers on the market. The 277V version offers the added benefit of low amp draw, minimizing heat output and freeing up electricity for other equipment, with no need for additional buck-boost transformers. Ideal for both overhead or ground placement, the Quest 506 277V is engineered for flexibility and convenience. It also includes a MERV 13 filtration system to remove dust, pollen, mold, bacteria, and some viruses from the air. Assembled in Madison, Wisconsin, this unit comes with a 5-year warranty and meets California Title 24 requirements for both ducted and non-ducted installations. With its high efficiency performance and wide operating range, the Quest 506 277V provides a reliable solution for effective humidity control.
-
Specifications @ 80°F/60% RH
Capacity: 500 Pints/Day
Power: 2250 W
Power Cord: NEMA L7-20P
Supply Voltage: 277 V
Current Draw: 8.2 Amps
Blower: 1150 CFM
BTU (Total): 30500
BTU (Motor Load): 7700
BTU (Heat of Condensation): 22800
Operating Temperature: 56-95° F
Energy Factor: 4.4 L/kWh
Efficiency: 9.2 Pints/kWh
Air Filter Rating: Merv 13
Filter Size: 18in x 20in x 2in
Refrigerant: R454B
Refrigerant Charge: 62oz
Drain Port Connection: 3/4in Threaded NPT
Certifications: ETL/UL/CSA
Dimensions: 28.9in x 27in x 44.8in
