Description

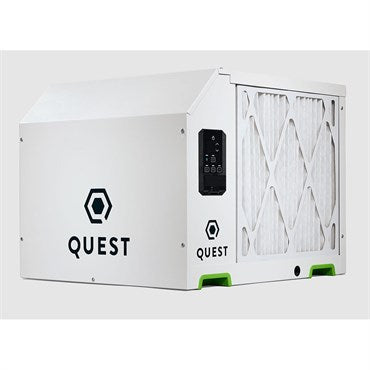

The Quest 506 208/230V Overhead Dehumidifier is a high performance solution designed for demanding agricultural and commercial applications. With a remarkable 506-pint capacity, it stands as one of the most powerful commercial dehumidifiers on the market. Featuring patented M-CoRR™ Technology, this unit recycles excess heat for optimal efficiency while minimizing heat output into the space. Ideal for use in indoor growing facilities, greenhouses, and warehouses, it offers flexible installation options, including overhead or ground placement. The Quest 506 also includes a MERV 13 filtration system, effectively removing contaminants such as dust, pollen, mold, bacteria, and some viruses. Engineered and assembled in Madison, Wisconsin, this dehumidifier is backed by a 5-year warranty and meets California Title 24 requirements for both ducted and non-ducted installations. With its low amp draw, wide operating range, and safety certifications, the Quest 506 provides a reliable, energy-efficient solution for high-capacity humidity control.
-
Specifications @ 80°F/60% RH
Capacity: 500 Pints/Day
Power: 2250 W
Power Cord: NEMA 6-20P
Supply Voltage: 208/230 V
Current Draw: 9.88 Amps @ 230 V, 10.92 Amps @ 208 V
Blower: 1150 CFM
BTU (Total): 30500
BTU (Motor Load): 7700
BTU (Heat of Condensation): 22800
Operating Temperature: 56-95° F
Energy Factor: 4.4 L/kWh
Efficiency: 9.2 Pints/kWh
Air Filter Rating: Merv 13
Filter Size: 18in x 20in x 2in
Refrigerant: R454B
Refrigerant Charge: 62oz
Drain Port Connection: 3/4in Threaded NPT
Certifications: ETL/UL/CSA
Dimensions: 28.9in x 34.1in x 44.8in
