Description

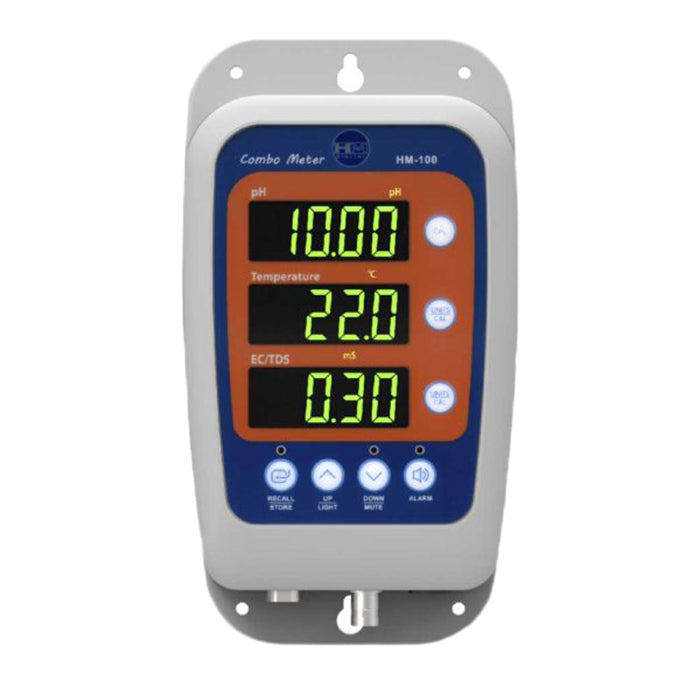

HM-100: Continuous pH/EC/TDS/Temp Monitor
The HM-100 is a pH/EC/TDS/Temp monitor ideal for all water quality testing, hydroponics, water purification applications, wastewater regulation, aquaculture, colloidal silver, labs & scientific testing, pools & spas, ecology testing, boilers & cooling towers, water treatment and more.Features
Measures Potential Hydrogen (pH), Electrical Conductivity (EC), Total Dissolved Solids (TDS), Salinity and TemperatureFour scales: pH, mS, ppm 0.5 (NaCl) Scale & 0.7 (442) ScaleAutomatic Temperature Compensation (ATC) using three temperature coefficientsDigital Calibration (push button) to any point within the meter’s rangeData-hold function (Max. 6 data values)Large and easy-to-read LCD ScreenDisplays 3 parameters (pH/EC or TDS/Temp) simultaneously.Replaceable Sensors (model SP-C2 for Conductivity, SP-P5 for pH)Factory Calibrated (pH/EC/TDS)Includes power cable, pH 4 & 7 calibration solutions, pH storage solutionSpecifications
Measurement ScalespH: pHTemp: °C, °FTDS: ppm (0.5 / ppm (0.7)EC: mSRange: pH: 0.1 – 14.0 pHTemperature: 0.0 – 60.0 °C / 32.0 – 122.0 °FTDS: 0 – 9990 ppmEC: 0 – 10.00 mSResolution:pH: 0.1 pHTemp: 0.1°C / 0.1 °FTDS: ppm: 1 ppm (0-999ppm) / 10ppm (1000-9990 ppm)EC: mS: 0.01 mS (0.01 – 20.00 mS)ATC: YesAccuracy: pH: ± 0.1 pHTemp: ± 1 °C / °FTDS: ± 2 %EC: ± 2 %Power Source: 5V/1AFunction Environment: 0 – 50°C (0-122°C) / RH 80 % (EC Probe: 0 – 80°C)Sensor Cable: 24-inch shielded Coaxial CableDimensions: About 4.3 x 7.9 x 1.3 inchesWeight: 10 ounces for body / 5 ounces for two probes (without case)
