Irrigation Controllers

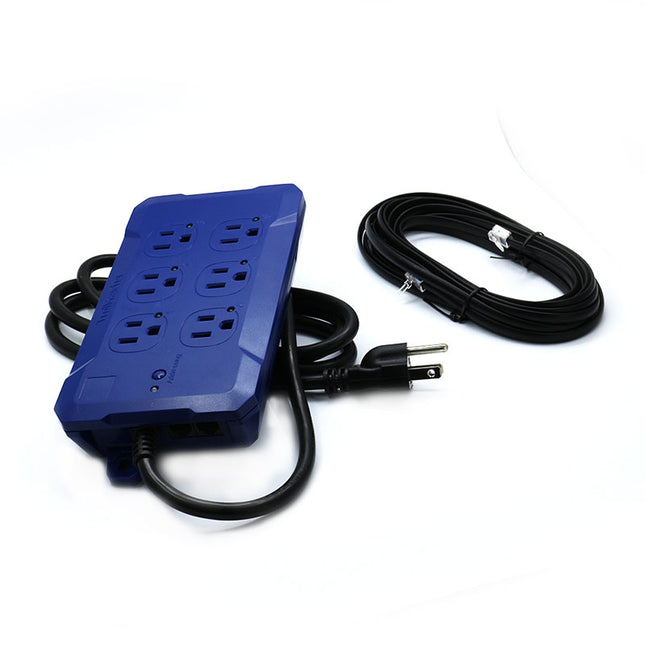

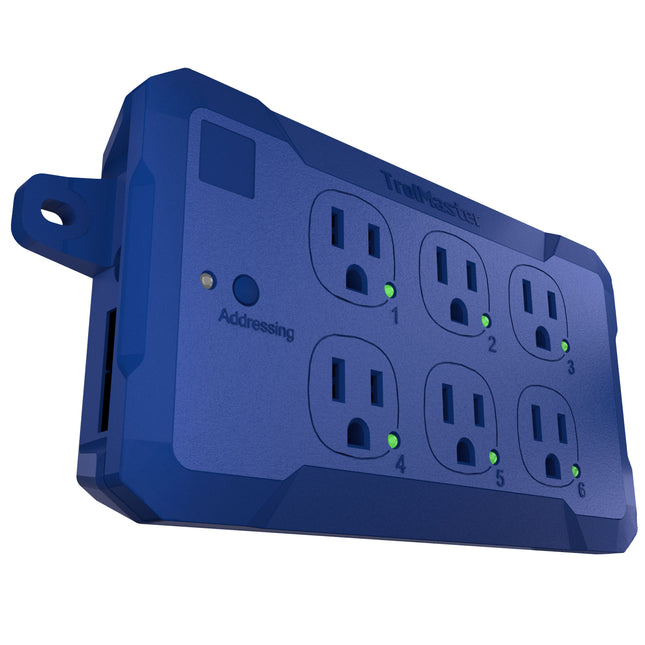

The TrolMaster OA6-110 gives an Aqua-X six separately controlled 120-volt outlets for small pumps and solenoid valves drawing under 1.5 amps. Each outlet has its own LED so you can see at a glance what's running, and up to five boards can connect to a single Aqua-X. 6 individually controlled 120 VAC outlets, 1.5 A max each For small 110 V pumps and solenoid valves LED indicator on each outlet plus power LED Addressing button; double RJ12 sockets for easy daisy-chaining Up to 5 boards per Aqua-X Input: 120 VAC, 9 A max · Working environment: 32–122°F, up to 90% RH In the box: OA6-110 control board, 16 ft RJ12 cable.

Read more less

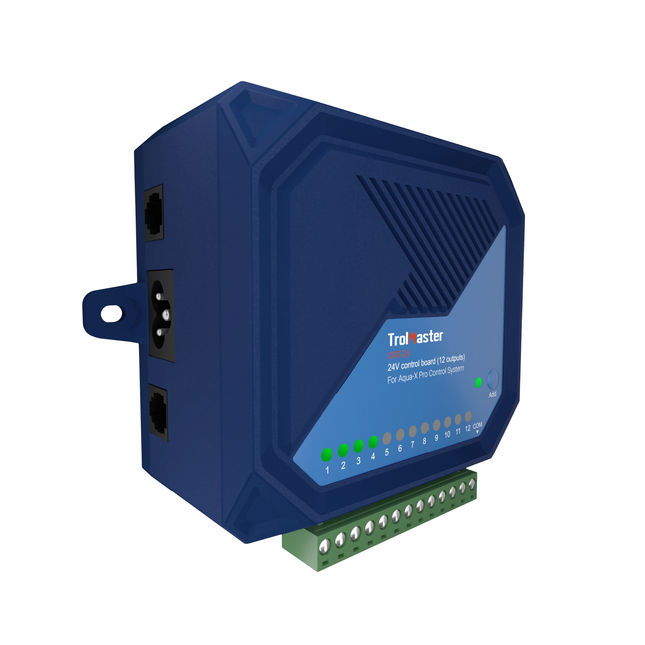

The TrolMaster OAT-24 adds 12 individually controlled 24-volt outputs to an Aqua-X Pro (NFS-2) or Aqua-X Plus (NFS-3), one per irrigation solenoid. Each valve can run in its own mode, so you can schedule multiple nutrients, rooms and zones from one controller, and stacking boards takes the Aqua-X Pro up to 600 individually controlled 24 V valves. 12 individually scheduled 24 VAC outputs, 0.5 A each Five control modes per solenoid: Recycle, Schedule, Demand, Volume and Auto-fill For Aqua-X Pro (NFS-2) and Aqua-X Plus (NFS-3) Multiple boards support up to 600 individually controlled 24 V valves Input: 100–240 V, 50/60 Hz; 1.7 A max Working environment: 32–104°F, up to 90% RH In the box: OAT-24 board, 16 ft RJ12 cable, power cable, 13-pin Phoenix-type connector.

Read more less

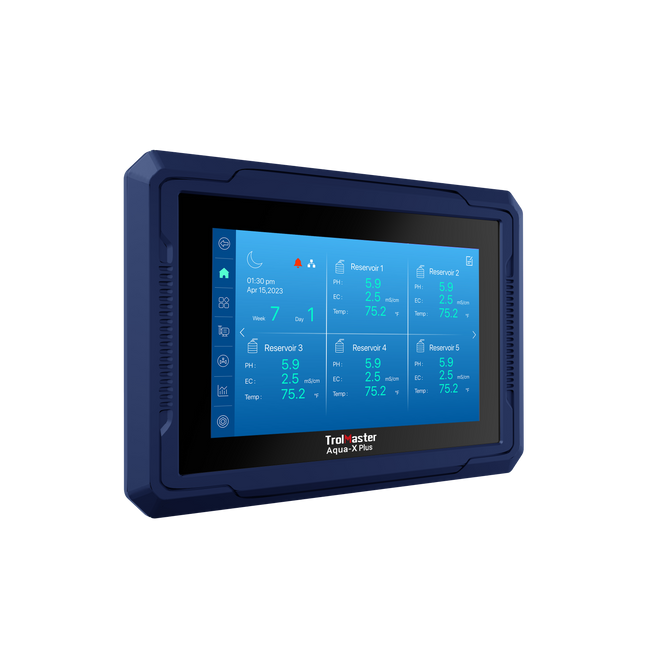

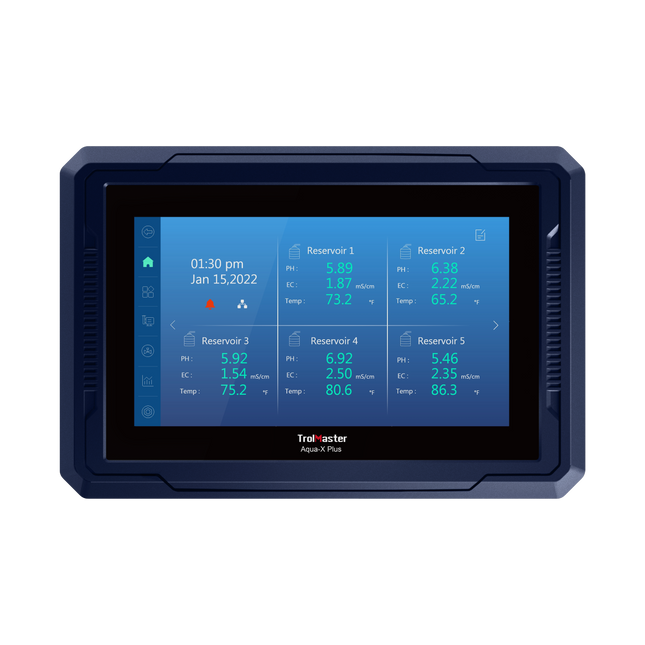

The TrolMaster Aqua-X Plus (NFS-3) is a multi-zone irrigation controller with a 7" touchscreen, built for crop steering. It runs pumps and solenoids on precise schedules and monitors reservoir pH, EC and temperature along with media water content, EC and temperature. It connects to the internet over a standard CAT5 cable and works with TrolMaster's free app. 7" 800 x 480 touchscreen with free smartphone app control Crop steering irrigation with optional WCS-1 or WCS-2 water content sensors Controls up to 240 devices and monitors up to 25 sensors Capacity: 5 sensor boards, 20 water detectors, 20 water content sensors, 15 flow meters (DFM-1/2/3) Multiple Pump Link functions for master pumps Micro-SD card to save, copy, import and export settings Devices and sensors up to 1,000 ft (300 m) from the controller Input: 100–240 VAC, 50/60 Hz · ETL / FCC · IP20 In the box: Aqua-X Plus controller, AMP-3 sensor board, 12 V power adapter, RJ12 cable set, mounting plate.

Read more less

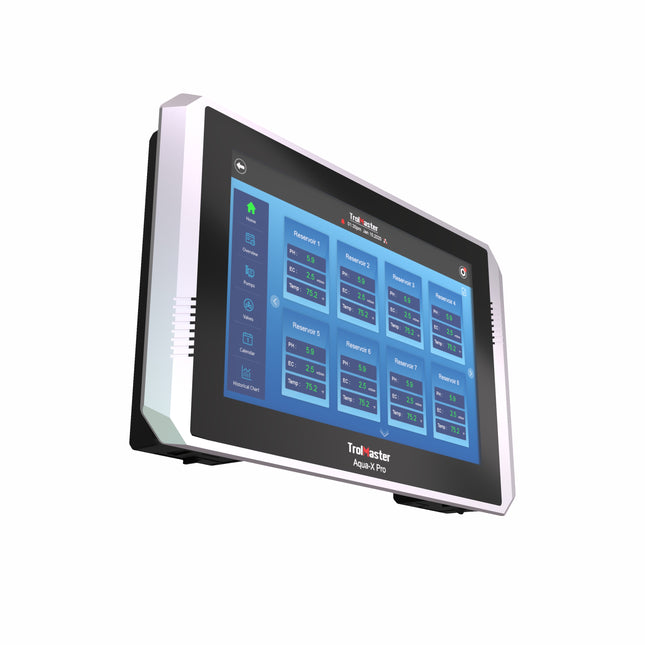

The TrolMaster Aqua-X Pro (NFS-2) is a commercial irrigation controller that runs pumps and solenoids for several grow areas from one 10.1" touchscreen. It reads reservoir pH, EC and temperature plus media water content, and waters on timers, by volume, or on demand from flow and moisture sensors. Monitor and adjust it from the TM+ phone app or a web browser. 10.1" LED touchscreen with TM+ phone app and web-based control Up to 300 pumps and 300 valves (up to 50 control modules each on the pump and valve lines) Up to 50 irrigation schedules per day, plus calendar control for multi-day programs Reservoir pH, EC and temperature monitoring with the included AMP-3; media EC, temperature and moisture with WCS-2 Water use tracking with the DFM-1 flow meter; feed on demand, feed by volume and reservoir auto-fill Up to 50 sensor boards and water detectors in total, with mobile alerts Ports: USB, RJ12 module connections, CAT5/6 internet Input: 100–240 VAC, 50/60 Hz · ETL / FCC · IP20 In the box: Aqua-X Pro controller, AMP-3 sensor board, 12 V power adapter, two 12 ft RJ12 cables.

Read more less

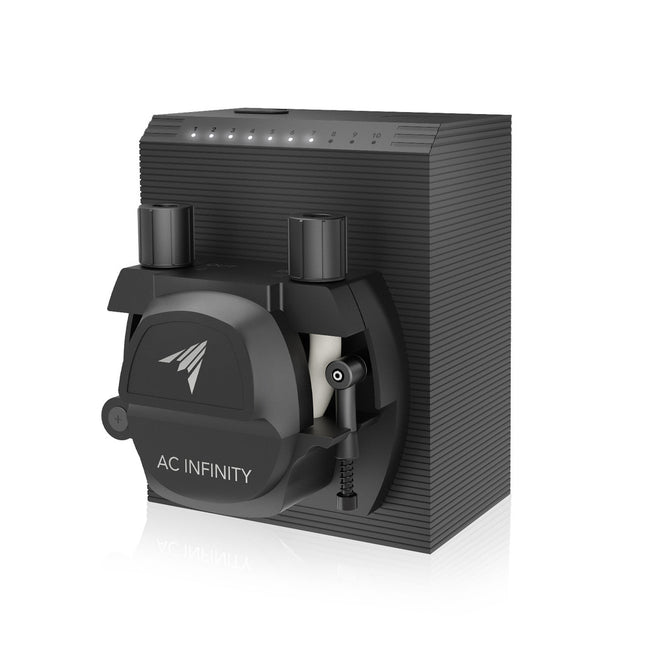

  Peristaltic pump designed to distribute exact amounts of liquids in milliliters in applications where pH control is vital. Features precision 10-level control for exact flow rates in 21 mL equal intervals (up to 210 mL per minute). Built with a cutting-edge DC motor that runs with low noise output and energy-efficiently for long-lasting use. Compatible with AI and UIS™ controllers for fine-tuned dosing. Access smart programming and dosing in seconds intervals via WiFi app control. Engineered for hydroponics, aquariums, and labs, safely dosing nutrients, calcium buffers, and chemical reagents with a sealed, leak-free system for precision and purity. Product Description This peristaltic dosing pump distributes precise amounts of liquid for accurate pH and nutrient control in hydroponic, aquarium, and laboratory applications. Using this pump system will ensure your liquids only pass through the included tubing so your solutions receive proper dosing. Operating with milliliter-level precision, it delivers exact flow rates with a 10-level adjustable system, dispensing 21 mL intervals up to 210 mL per minute. Powered by a high-efficiency DC motor, it runs quietly and energy-efficiently for long-term reliability. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment. This smart ecosystem of grow devices can continue to run even if it is disconnected from your WiFi, keeping your grow safe and thriving. Intelligent Integration When paired with AI controllers and the WiFi app, this dosing pump allows for fine-tuned flow adjustments, as well as dosing in seconds intervals, enabling automated schedules and real-time monitoring. This ensures your system maintains the ideal pH and nutrient balance with minimal manual intervention. Versatile Applications Designed for use in hydroponics, aquariums, and scientific research, this roller pump maintains stable conditions by precisely dosing nutrient solutions for plant growth, calcium buffers for reef tanks, and chemical reagents for experiments. Its sealed, leak-free system ensures contamination-free delivery, while smart tracking and automation provide efficient and reliable dosing for optimal results.

Read more less

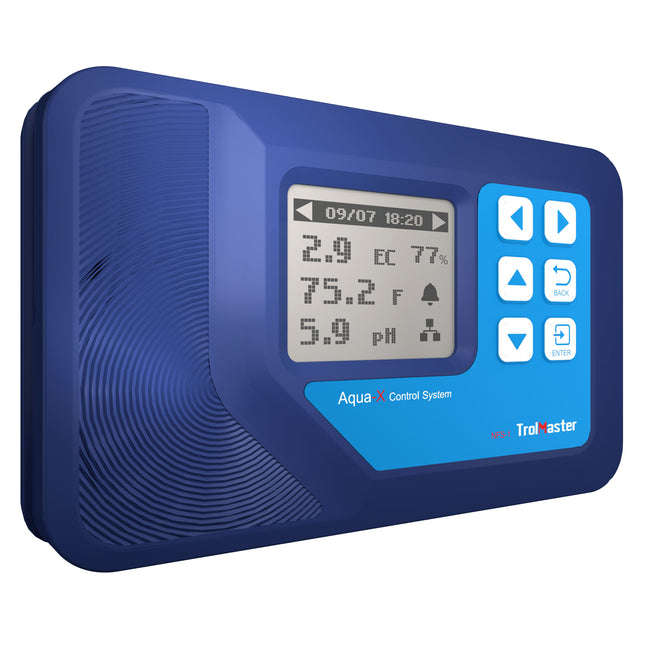

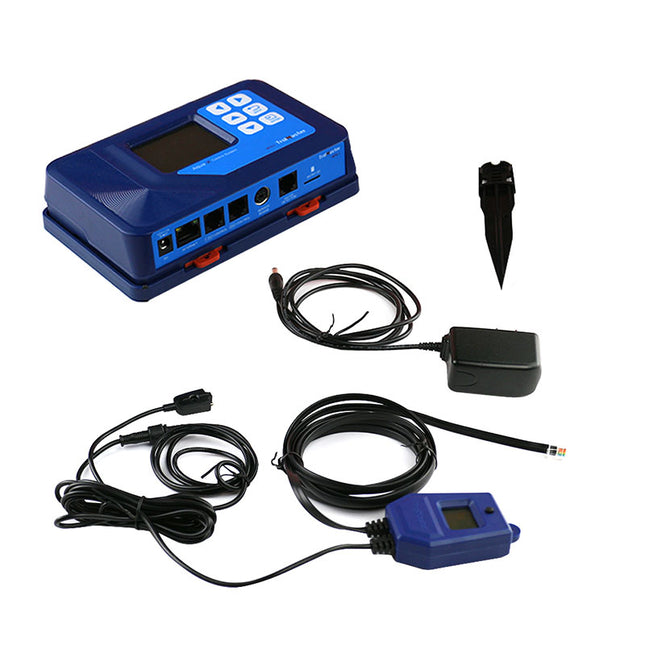

The Aqua-X system is a professional-grade irrigation control system. It is a fully customizable modular designed system. Installation is simple and the system is easy to expand upon. The Aqua-X is designed to control up to 30 separate irrigation zones (24vac solenoid valves or 120vac pumps),  The Aqua-x monitors pH / EC and water temp as well as to monitor actual growing medium moisture levels by using up to (8) Water Content Sensors connected to a single Aqua-x controller. The timers can be set-up to be recycling timers, or to operate at specific time of day and durations. With the free TrolMaster App, the user can access all of the settings and alerts on the system from anywhere at anytime. The NFS-1 is the brain of the Aqua-X system. It comes with a water detector WD-1 for leaking alert and watering confirmation.
